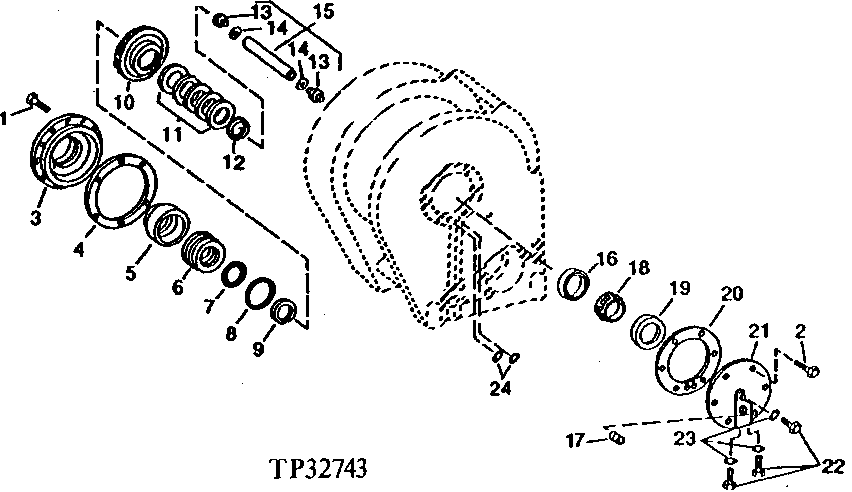

WINCH FREE SPOOL PISTON AND BEARINGS (MODEL 6000 WINCH)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7662	12	Cap Screw	M10 X 30
2	19H2898	6	Cap Screw	1/2" X 1-1/4"
3	T139885	1	Cover	-
3	T84697	1	Sleeve	(ON DRUM TO QUILL SEAL - USE IF NEEDED TO REPAIR THE QUILL OIL SEAL SURFACE)
4	PM38655	1	Sealant	(SUB FOR T43514)
5	T43627	1	Housing	-
6	T43630	1	Piston	-
7	T43628	1	Washer	-
8	T43629	1	Washer	-
9	R28213	1	Snap Ring	-
10	T43631	1	Hub	(25 AND 48 TEETH)
11	R67840	17	Disk Spring	-
12	R33247	1	Snap Ring	-
13	R39279	2	Retainer	-
14	R34140	2	Ring	-
15	AT42507	1	Pipe	OIL WITH RINGS
16	AT173348	1	Seal	-
17	T14432	1	Plug	-
18	JD8177	1	Bearing Cone	-
19	JD8213	1	Bearing Cup	-
20	T43639	3	Shim	.010
20	T43640	2	Shim	.005
20	T43641	3	Shim	.007
21	T128806	1	Bearing Housing W/O Bearing	-
21	T84697	1	Sleeve	(ON DRUM TO QUILL SEAL - USE IF NEEDED TO REPAIR THE QUILL OIL SEAL SURFACE)
22	R27094	3	Drain Plug	-
23	R26286	3	O-Ring	-
24	R394R	1	O-Ring	-
24	R33259	1	O-Ring	-

WINCH FREE SPOOL PISTON AND BEARINGS (MODEL 6000 WINCH)

Нет текстового описания
