SECONDARY STEERING KIT (DD) (SN 586337-592554)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT195299	1	Hydraulic Hose	-
2	AT182993	1	Hydraulic Hose	-
3	AT183175	1	Hydraulic Hose	(SUB FOR AT182991, THIS APPLICATION)
4	AT182990	1	Hydraulic Hose	-
5	AT183657	1	Hydraulic Hose	-
6	38H1002	1	Tee Fitting	-
7	38H1483	1	Reducer	-
8	AT306790	1	Hydraulic Hose	-
9	38H1161	1	Adapter Fitting	-
10	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), (SUB AT165906)
11	R26375	2	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
12	38H1329	1	Adapter Fitting	-
13	AT305428	1	Pump	(SUB FOR AT166083 AND AT186662)
14	T163670	1	Plate	PUMP MOUNT
15	T163655	1	Bracket	-
16	38H1447	1	Adapter Fitting	-
17	T163583	1	Strap	-
18	T76938	3	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
19	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
20	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
21	38H1014	1	Elbow Fitting	90 DEG.
22	19M7785	1	Screw	M10 X 25
23	19H1648	2	Cap Screw	3/8" X 3/4"
24	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
25	38H1096	2	Elbow Fitting	-
26	R28782	2	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
27	38H1003	1	Elbow Fitting	-
28	T77814	3	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
29	38H1029	1	Tee Fitting	-
30	T77932	3	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
31	AT117264	1	Switch	SECONDARY STEERING
31	AT116373	1	Check Valve	(NOT ILLUSTRATED)
32	AT141527	1	Check Valve	(INCLUDES R26375 AND T77857)
32	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
32	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
33	AT117265	1	Pressure Switch	-
34	AT223648	1	Fitting	(SUB FOR R51031, THIS APPLICATION)
35	19M7811	2	Screw	M10 X 90
36	19M7785	1	Screw	M10 X 25
37	14M7296	1	Flange Nut	M10
38	T77858	1	O-Ring	-
39	-	1	Part 42	(DD) SECONDARY STEERING KIT (ALSO INCLUDES SECONDARY STEERING PUMP, WIRING HARNESS, MOUNTING BRACKET, STEERING CONTROLLER, SAFETY LABEL, FUSE AND MISC PARTS) (FOR SKIDDERS WITH TRANSMISSION COLD WEATHER DISCONNECT, ALSO ORDER AT195429 HARNESS MODIFICATION KIT) (ALSO ORDER AT311472 DRAIN PORT ADAPTER FITTING) ( AT197704 NLA)

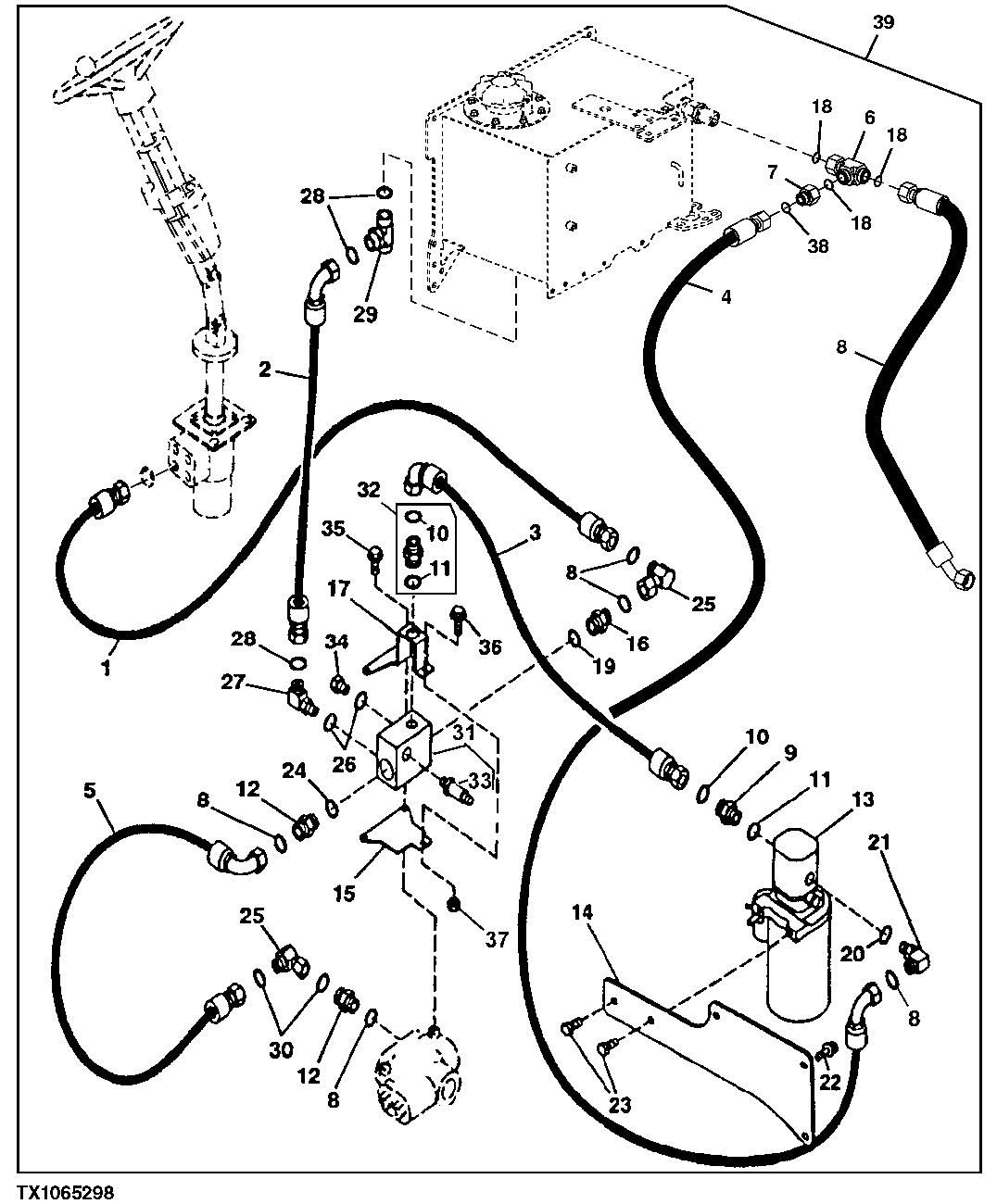

SECONDARY STEERING KIT (DD) (SN 586337-592554)
