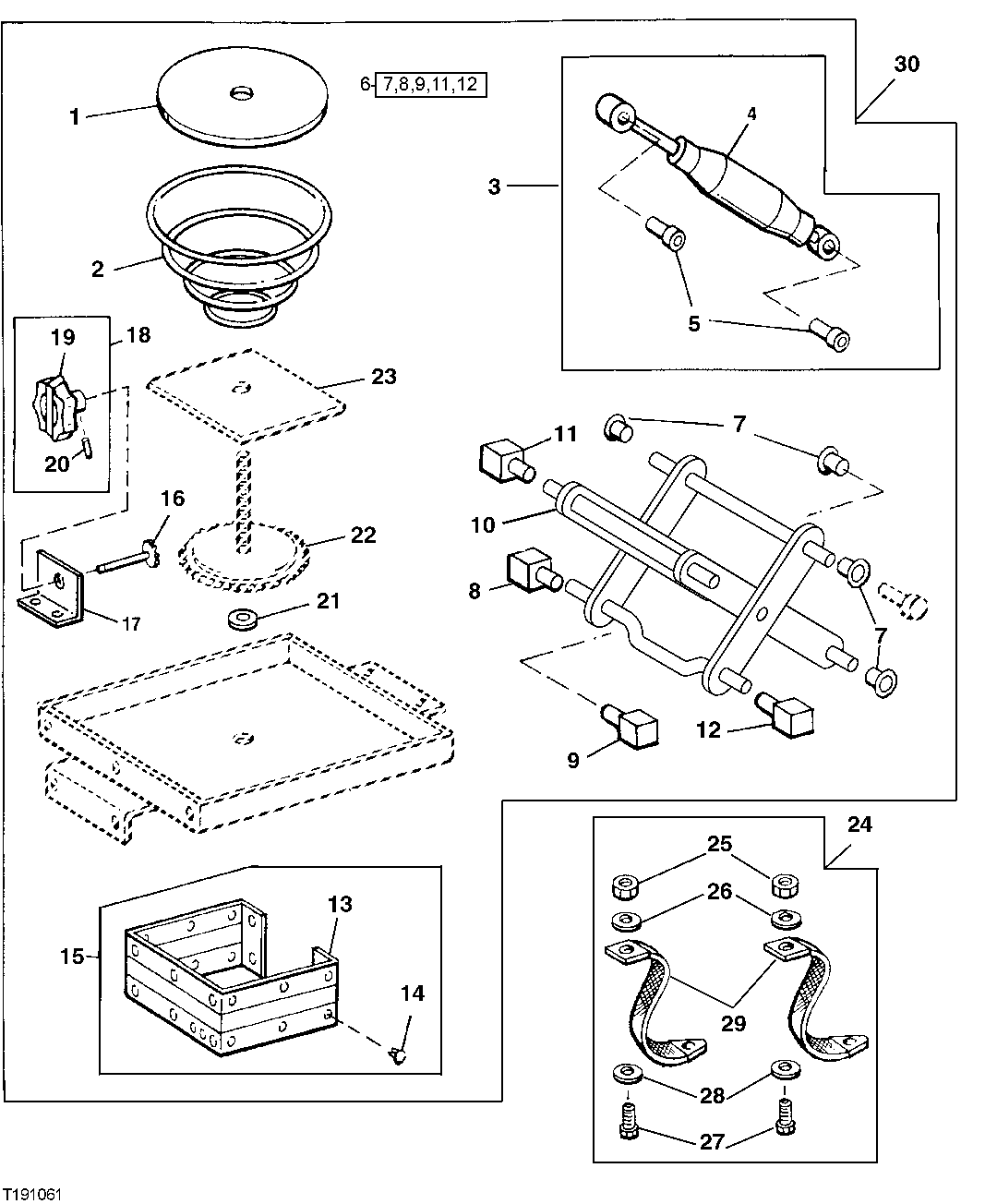

SEAT SUSPENSION & SHOCK ABSORBER (WITH SUSPENDED SEAT)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	-
2	AT125801	1	Spring	-
3	AT175436	1	Seat Shock Absorber Kit	(SHOCK ABSORBER)
4	-	1	Part 4	(SHOCK)
5	T55222	2	Bushing	(SHOCK ABSORBER)
6	AT106397	1	Bearing Kit	(BEARING/BUSHING)
7	-	4	Part 7	-
8	-	1	Part 8	SLIDER BLOCK
9	-	1	Part 9	SLIDER BLOCK
10	AT191619	1	Seat Suspension	(SCISSOR)
11	-	1	Part 11	SLIDER BLOCK
12	-	1	Part 12	SLIDER BLOCK
13	-	1	Part 13	(VINYL)
14	T63798	25	Plug	FASTENER
15	AT125803	1	Boot	(SUB FOR AT180135)BOOT SUSPENSION (VINYL)
16	AT175353	1	Gear	(SMALL ADJUSTMENT)
17	-	1	Part 17	(SMALL GEAR ADJUSTMENT)
18	AT125805	1	Seat Knob Kit	(ADJUSTING KNOB)
19	AT125829	1	Knob	ADJUSTING
20	34H266	1	Spring Pin	5/32" X 1", (ADJUSTING KNOB)
21	-	1	Part 21	(LARGE GEAR)
22	-	1	Part 22	(LARGE BASE)
23	-	1	Part 23	-
24	AT179693	1	Strap Kit	-
25	M47031	2	Lock Nut	9.525 mm (3/8"), (TETHER SUPPORT SCREW)
26	24H1305	2	Washer	13/32" X 13/16" X 0.065"
27	19H2676	2	Cap Screw	3/8" X 1", (TETHER TO SEAT SUPPORT)
28	24H1309	2	Washer	13/32" X 1-1/16" X 0.120", (SUB FOR M1340T THIS APPLICATION) (TETHER)
29	-	2	Part 29	(TETHER) ( FOR SUSPENSION SEAT)
30	AT191323	1	Seat Suspension	-

SEAT SUSPENSION & SHOCK ABSORBER (WITH SUSPENDED SEAT)

Нет текстового описания
