Большое обновление пильных узлов

Смотреть

Открытый узел

ROPS, CAB AND CANOPY MOUNT, BATTERY COVER, ACCESS COVERS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT193509	1	ROPS	-
1	AT192967	1	ROPS	-
1	AT306545	1	Cab Frame	NLA; SUB FOR AT197679
2	-	1	Part 4	MAKE FROM T58056, CTL 38mm (1.5 in)
3	T145788	1	Plug	HOLE IN DASH PANEL ON RH OF STRG COLUMN
4	28H3449	2	Bushing	0.546" X 0.840" X 1/2"
5	19M8011	2	Cap Screw	M12 X 30
6	24M7226	2	Washer	13 X 35 X 5 mm
7	19M7774	1	Screw	M6 X 12
8	T112447	24	Washer	26.340 X 76.200 X 1.600 mm (1.037" X 3" X 1/16")
9	19M7785	1	Screw	M10 X 25
10	T215619	1	Plate	SUB FOR T186565
11	08H4840	4	Bolt	1" X 6-1/4"
12	24M7294	8	Washer	26 X 39 X 4 mm
13	T118458	8	Isolator	-
14	T34950	2	Nut	25.400 mm (1")
14	K40018	2	Lock Nut	25.400 mm (1")
15	14M7296	4	Flange Nut	M10
16	T131168	2	Retainer	CAB ONLY
17	R55326	8	Rivet	CAB ONLY
18	T164357	1	Door	ALSO ORDER, T131067, (2) 14M7265 AND (2) 21M7271
18	T131067	1	Latch	-
18	14M7265	2	Lock Nut	M5
18	21M7271	2	Screw	M5 X 16
19	19M7784	1	Screw	M10 X 20
20	T205569	1	Panel	CI VALVE--RIGHT REAR
20	T205569	1	Panel	CI VALVE--RIGHT REAR
21	AT192912	1	Panel	CI VALVE HOSES--BOTTOM RIGHT REAR
21	AT307186	1	Panel	CI VALVE HOSES--BOTTOM RIGHT REAR
22	24M7138	2	Washer	5.300 X 15 X 1 mm
23	AT215055	2	Pin Fastener	-
24	-	1	Part 32	MAKE FROM T316499 , CTL
25	-	1	Part 33	MAKE FROM T166692 CTL
26	19M7786	2	Screw	M10 X 30, SUB FOR AT220953, THIS APPLICATION
27	14M7274	1	Nut	M10
28	AT193169	1	Cover	HVAC, SERVICE OUTER
30	T131067	1	Latch	-
32	T191249	1	Plate	GUARD (LEFT), SUB FOR T161113
33	H34597	1	Plug	BACK PANEL TRANSMISSION DISCONNECT AND DASH HAND THROTTLE HOLE
33	T206106	3	Label	SUB FOR R32239
33	R44720	4	Plug	LIGHT WIRING HARNESS HOLES
33	H84660	2	PLUG	BACK PANEL OF BATTERY BOX
34	19M7784	4	Screw	M10 X 20
35	24H1660	1	Washer	57/64" X 1-3/8" X 0.060"
36	T78716	1	Nut	-
37	38H1416	1	Fitting	-
38	AT183612	1	Pressure Relief Valve	-
39	T77857	1	O-Ring	-
40	38H1416	1	Fitting	-
41	AT151040	1	Hinge	-
42	03M7191	2	Bolt	M10 X 25
43	24M7296	4	Washer	10.500 X 30 X 2.500 mm
45	24H1307	8	Washer	13/32" X 1" X 1/16"
46	14M7265	2	Lock Nut	M5
47	21M7271	2	Screw	M5 X 16
48	AT322876	1	Panel	LOWER REAR LEFT ACCESS
49	19M7784	4	Screw	M10 X 20
50	T60920	2	Washer	-
51	T191332	2	Label	ROOF SILL LABEL, L.H.SIDE AND R.H.SIDE
52	AT190780	1	Holder	BEVERAGE CUP HOLDER
53	19M7788	1	Screw	M12 X 25
54	24M7180	1	Washer	13 X 37 X 3 mm
55	24M7044	4	Washer	13 X 20 X 2 mm
56	T163557	1	Clamp	-

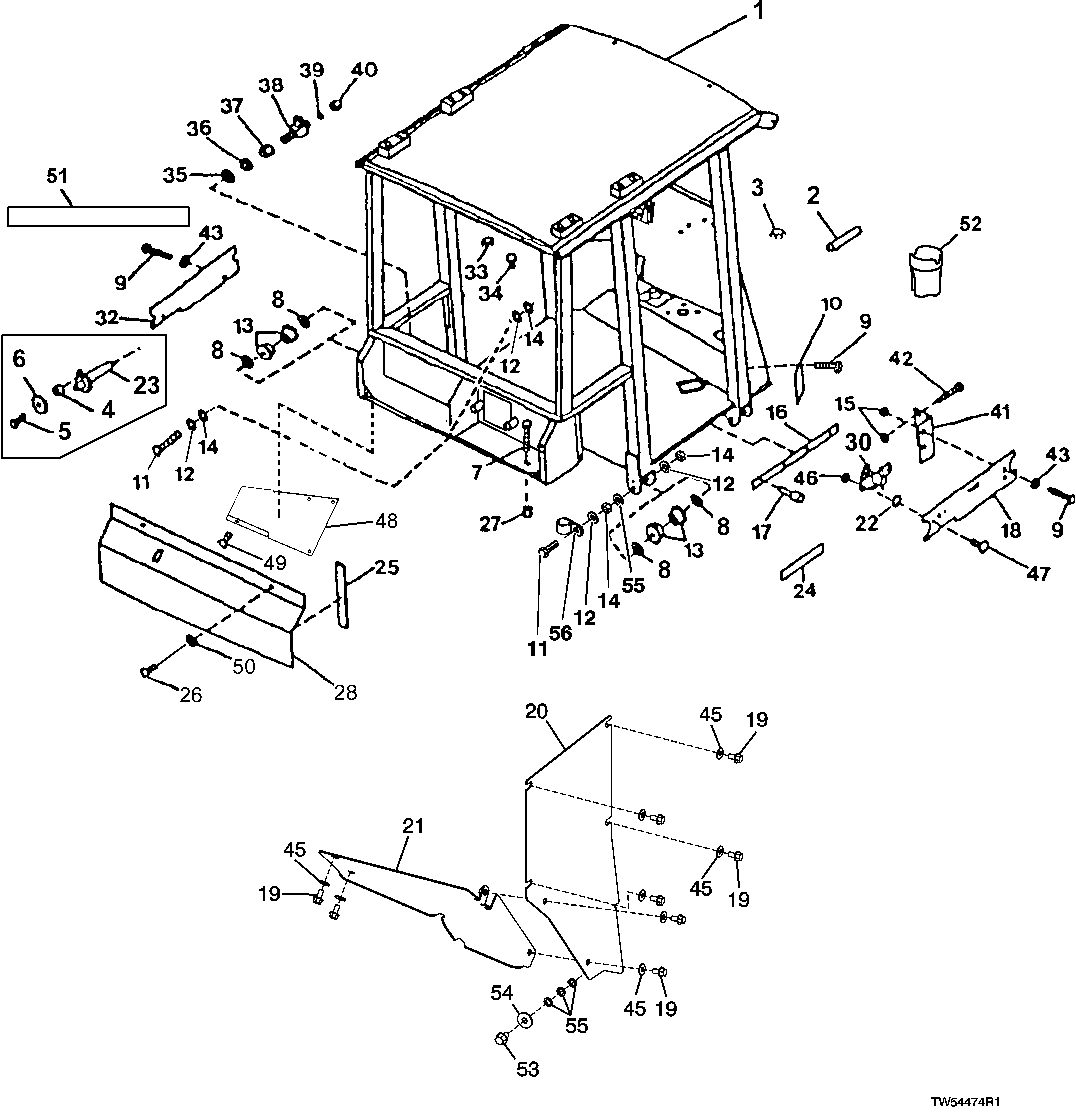

ROPS, CAB AND CANOPY MOUNT, BATTERY COVER, ACCESS COVERS
