Pilot Control to Grapple Valve, Load Lowering Valve Hydraulics (Direct Drive and Torque Converter) (Dual Function) (596700 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1160	1	Adapter Fitting	-
2	R26448	3	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
3	T77613	13	O-Ring	9.246 X 1.778 mm (0.364" X 0.070"), (DIRECT DRIVE)
3	T77613	11	O-Ring	9.246 X 1.778 mm (0.364" X 0.070"), (TORQUE CONVERTER)
5	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
6	AT136357	1	Hydraulic Hose	9/16" X 400 mm (15-3/4") X 9/16"
7	AT306838	2	Hydraulic Hose	Fabricate
8	AT306839	2	Hydraulic Hose	Fabricate
9	AT318802	1	Hydraulic Hose	17.4752" X 425 mm (16-3/4") X 17.4752"
12	38H1030	3	Tee Fitting	(DIRECT DRIVE)
12	38H1030	2	Tee Fitting	(TORQUE CONVERTER)
13	38H1094	3	Elbow Fitting	-
16	AT181497	1	Hydraulic Hose	17.4752" X 787 mm (31") X 17.4752", (DIRECT DRIVE) (TO BRAKE ACCUMULATOR)
16	AT315362	1	Hydraulic Hose	17.4752" X 1016 mm (40") X 17.4752", (TORQUE CONVERTER) (TO BRAKE ACCUMULATOR)
17	AT312849	1	Hand Operated Valve	(LOAD LOWERING)
18	AT313099	1	Hydraulic Hose	17.4752" X 444 mm (17-1/2") X 13/16", Fabricate
19	AT314055	1	Hydraulic Hose	17.4752" X 2759 mm (108-3/4") X 17.4752"
19	AT325620	1	Hydraulic Hose	-
20	AT321322	1	Hydraulic Hose	17.4752" X 1155 mm (45-1/2") X 17.4752"
21	AT315284	1	Hydraulic Hose	17.4752" X 2235 mm (88") X 17.4752"
22	AT315363	1	Fitting	-
23	AT81867	1	Check Valve	-
24	AT84495	1	Check Valve	-
25	T210554	1	Label	(UNLOADING VALVE OPERATION)
26	T81029	1	Nut	-
27	38H1031	1	Tee Fitting	(TO BULKHEAD TEE FOR BOOM CYLINDER ROD END HOSES)
28	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
29	38H1480	1	Reducer	-

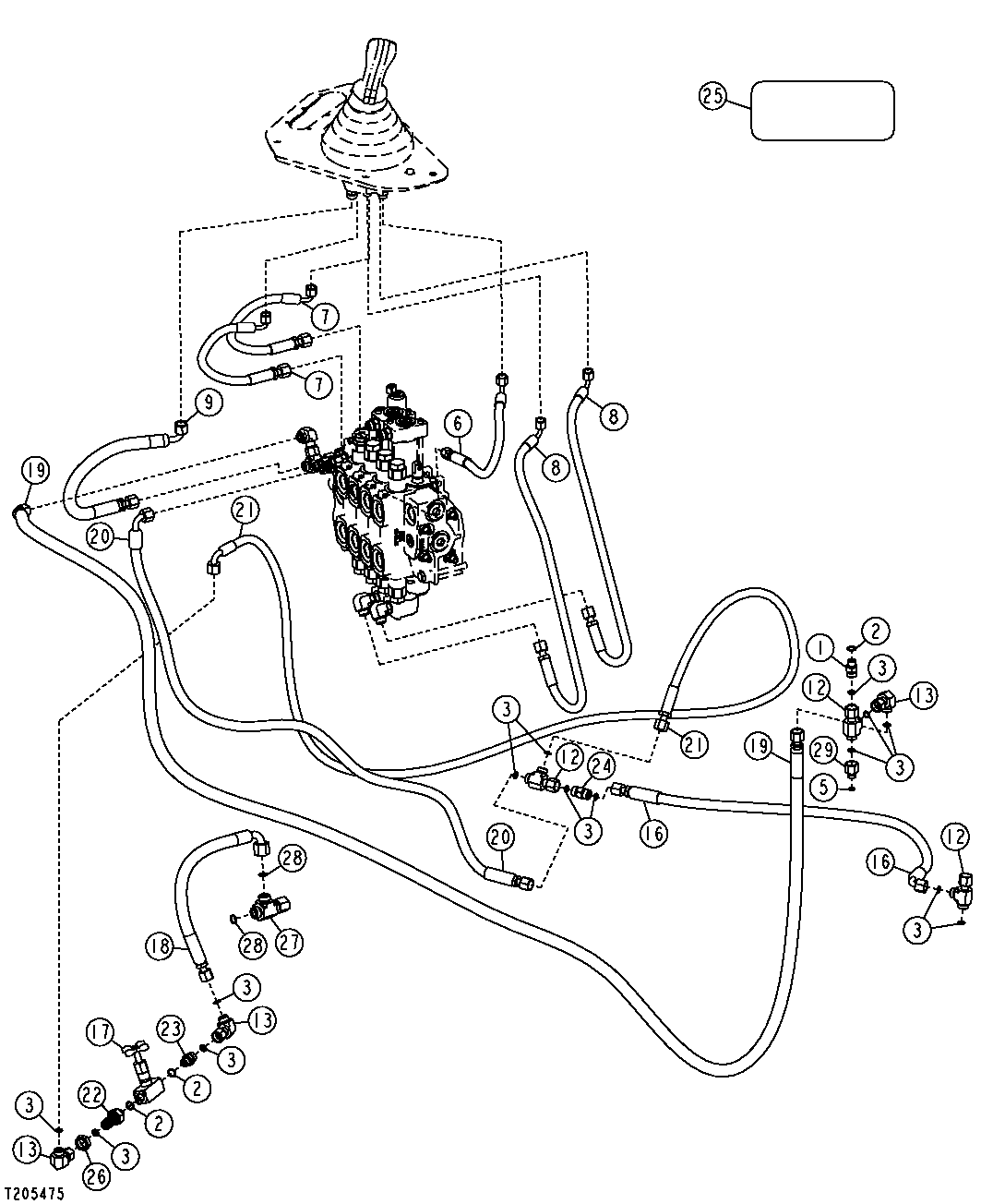

Pilot Control to Grapple Valve, Load Lowering Valve Hydraulics (Direct Drive and Torque Converter) (Dual Function) (596700 - )
