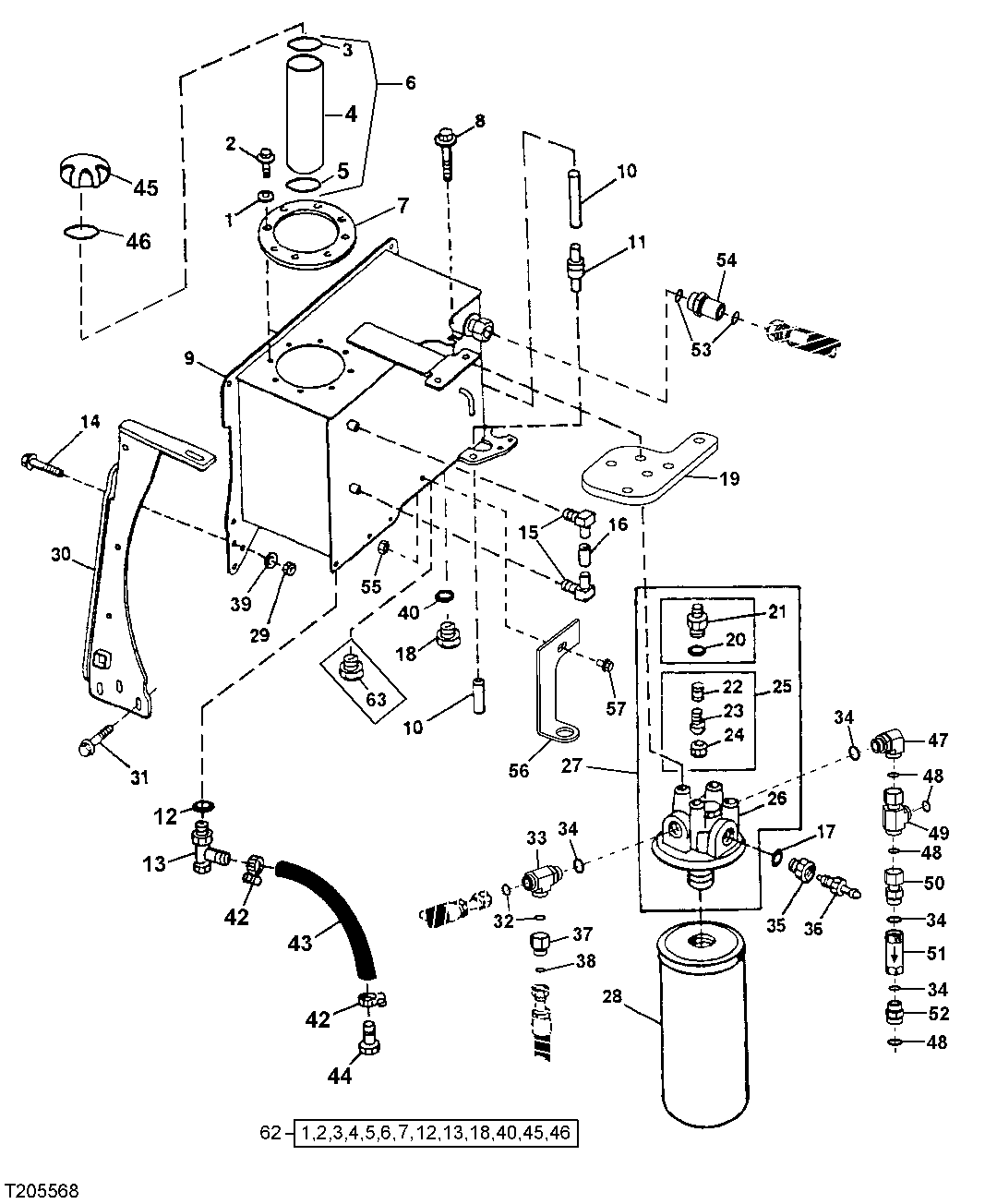

HYDRAULIC RESERVOIR & RETURN FILTER (SN 586337-596699)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1136	8	Washer	11/32" X 11/16" X 0.065"
2	T164946	8	Screw	-
3	T39155	1	Snap Ring	-
4	AT161638	1	Strainer	-
5	M596T	1	Snap Ring	-
6	AT223275	1	Housing	-
7	T179363	1	Gasket	-
8	19M7786	1	Screw	M10 X 30
9	-	1	Part 9	(SUB FOR AT191035, AT191048 ) (SUB AT310887)
9	-	1	Part 10	(SUB AT310887)
10	T72856	1	Hose	-
11	AT101565	1	Air Filter	-
12	R26906	1	O-Ring	-
13	AT152180	1	Drain Valve	-
14	03M7083	6	Bolt	M12 X 35
15	N115724	2	Elbow Fitting	-
16	-	1	Part 17	(MAKE FROM T107253 BULK MATERIAL, CUT TO LENGTH)
17	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
18	R27175	1	Drain Plug	(DUMP VALVE PART)
19	AT306850	1	Plate	-
20	R26375	2	O-Ring	-
21	AT60644	1	Sender	-
22	-	1	Part 23	-
23	-	1	Part 24	-
24	-	1	Part 25	-
25	AT129419	1	Switch Kit	-
26	-	1	Part 27	-
27	AT197341	1	Filter Head	-
28	AT193966	1	Hydraulic Filter	(SUB FOR AT209204, THIS APPLICATION)
29	14M7401	12	Lock Nut	M12
30	AT195225	1	Support	RIGHT, (SUB FOR AT180882, THIS APPLICATION)
30	AT193941	1	Support	LEFT (NOT ILLUSTRATED), (SUB FOR AT180883, THIS APPLICATION)
31	19M7496	6	Cap Screw	M12 X 45
32	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
33	38H1027	1	Tee Fitting	(TO BULKHEAD BRACKET)
34	R29936	4	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
35	Y1912C	1	Adapter Fitting	-
36	RE52722	1	Temperature Sensor	HYDRAULIC TEMPERATURE
37	38H1483	1	Reducer	(TO PRV OR GRAPPLE ROTATE SOLENOID VALVE)
38	T77858	1	O-Ring	-
39	24M7240	6	Washer	13 X 25 X 3 mm
40	F3171R	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
42	AR21837	2	Clamp	-
43	-	1	Part 44	(MAKE FROM T60811 BULK MATERIAL, CUT TO LENGTH, APPROX. 70")
44	19H1833	1	Cap Screw	5/8" X 1-1/4"
45	T191207	1	Filler Cap	(SUB FOR T121028)
46	T103461	1	Sealing Washer	-
47	38H1037	1	Elbow Fitting	-
48	T76938	4	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
49	38H1002	1	Tee Fitting	-
50	38H1071	1	Adapter Fitting	-
51	AT306704	1	Check Valve	-
52	38H1164	1	Adapter Fitting	-
53	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
54	38H1287	1	Adapter Fitting	(TO HYDRAULIC OIL COOLER IN)
55	14M7274	1	Nut	M10
56	-	1	Part 57	( T204528 NEVER USED)
57	19M7783	1	Screw	M10 X 16
62	-	1	Part 59	(SUB FOR AT191048 ) (SUB AT310887)
62	AT310887	1	Hydraulic Reservoir	-
63	R39112	1	Fitting	-
