HYDRAULIC RESERVOIR & RETURN FILTER (SN -586336)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1136	8	Washer	11/32" X 11/16" X 0.065"
2	T164946	8	Screw	-
3	T39155	1	Snap Ring	-
4	AT161638	1	Strainer	-
5	M596T	1	Snap Ring	-
6	AT223275	1	Housing	-
7	T179363	1	Gasket	-
8	19M7835	3	Screw	M10 X 35
9	-	1	Part 9	(SUB FOR AT191035, AT191048 ) (SUB AT310887)
10	T72856	1	Hose	-
11	AT101565	1	Air Filter	-
12	R26906	1	O-Ring	-
13	AT152180	1	Drain Valve	-
14	03M7083	6	Bolt	M12 X 35
15	N115724	2	Elbow Fitting	-
16	-	1	Part 16	(MAKE FROM T107253 BULK MATERIAL, CUT TO LENGTH)
17	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
18	R27175	1	Drain Plug	-
19	28H3400	1	Spacer	0.546" X 0.840" X 9/16"
20	R26375	1	O-Ring	-
21	AT60644	1	Sender	-
22	-	1	Part 22	-
23	-	1	Part 23	-
24	-	1	Part 24	-
25	AT129419	1	Switch Kit	-
26	-	1	Part 26	-
27	AT197341	1	Filter Head	-
28	AT193966	1	Hydraulic Filter	(SUB FOR AT209204, THIS APPLICATION)
29	14M7401	12	Lock Nut	M12
30	AT195225	1	Support	RIGHT, (SUB FOR AT180882, THIS APPLICATION)
30	AT193941	1	Support	LEFT (NOT ILLUSTRATED), (SUB FOR AT180883, THIS APPLICATION)
31	19M7496	6	Cap Screw	M12 X 45
32	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
33	38H1037	1	Elbow Fitting	-
34	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
35	Y1912C	1	Adapter Fitting	-
36	AT171020	1	Switch	HYDRAULIC TEMPERATURE
37	R29936	3	O-Ring	-
38	38H1518	1	Tee Fitting	-
39	24M7240	6	Washer	13 X 25 X 3 mm
40	F3171R	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
41	24M7296	1	Washer	10.500 X 30 X 2.500 mm
42	AR21837	2	Clamp	(SUB FOR AT191048 ) (SUB AT310887)
43	-	1	Part 44	(MAKE FROM T60811 BULK MATERIAL, CUT TO LENGTH, APPROX. 70")
44	19H1833	1	Cap Screw	5/8" X 1-1/4"
45	T191207	1	Filler Cap	(SUB FOR T121028)
46	T103461	1	Sealing Washer	-
47	-	1	Part 48	(SUB FOR AT191048 ) (SUB AT310887)
47	AT310887	1	Hydraulic Reservoir	-

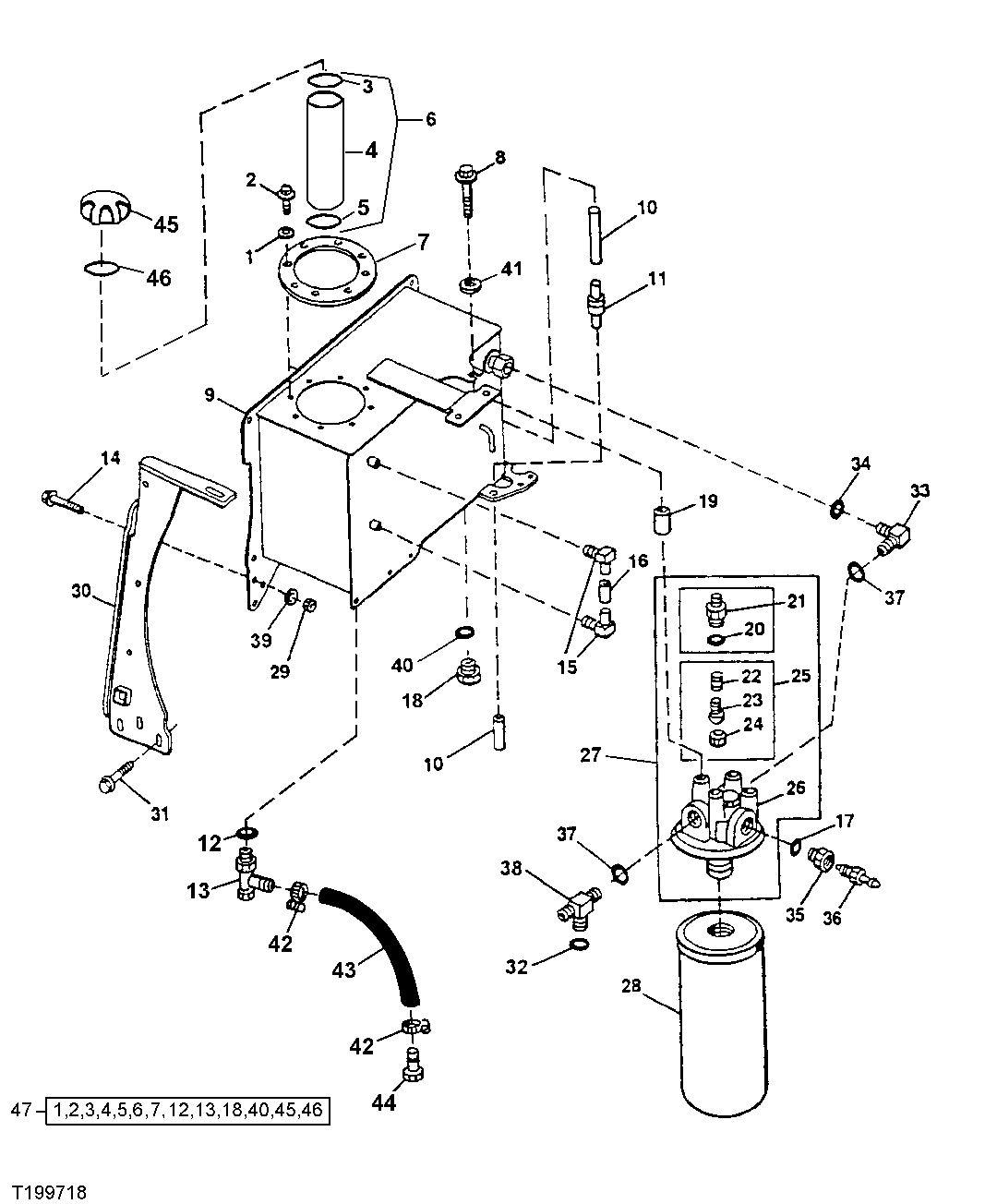

HYDRAULIC RESERVOIR & RETURN FILTER (SN -586336)
