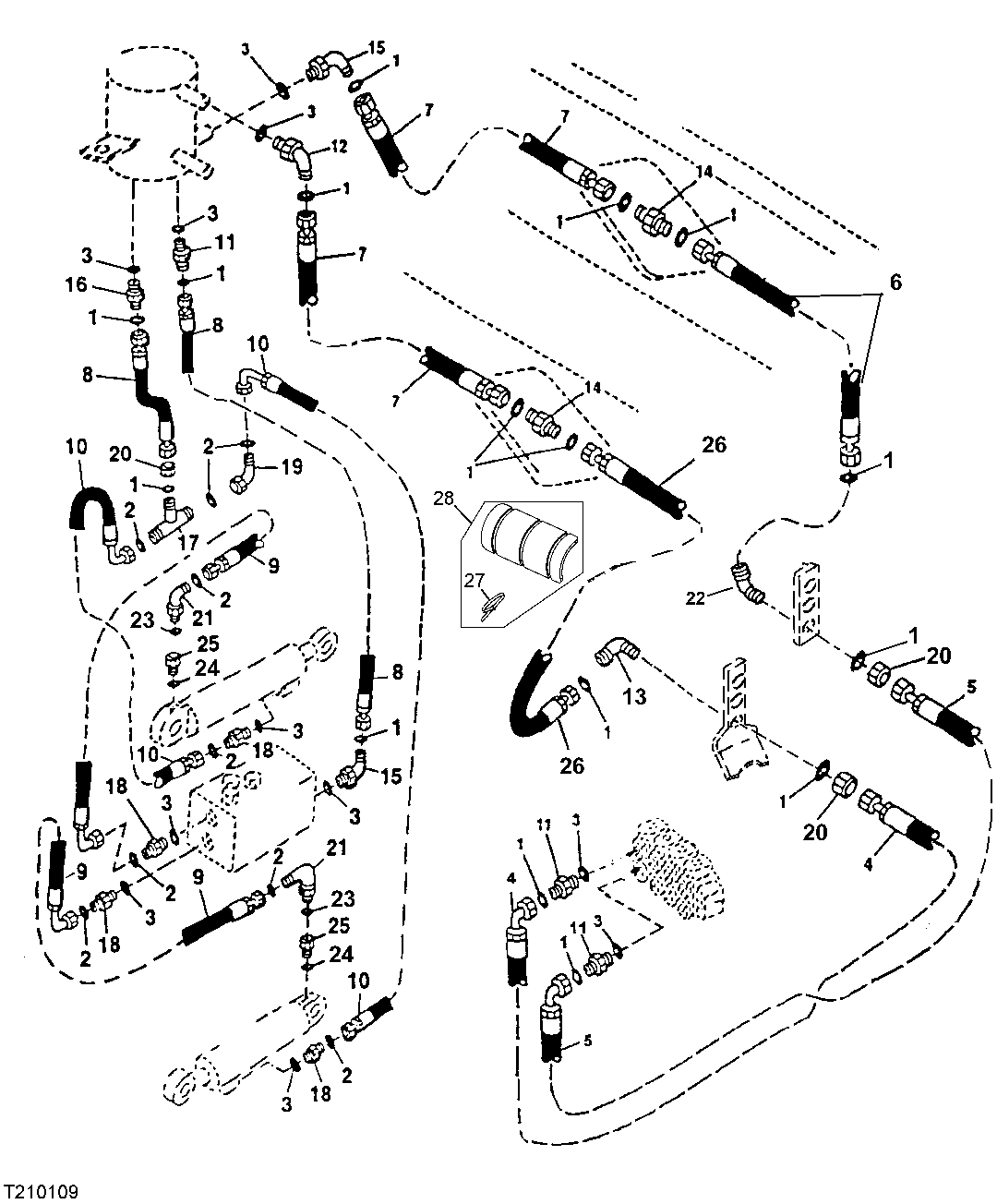

GRAPPLE CYLINDER LINES (SINGLE & DUAL FUNCTION) (SN -600034)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
2	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
3	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
4	AT199385	1	Hydraulic Hose	(SUB FOR AT190527)
5	AT199384	1	Hydraulic Hose	(SUB FOR AT190526)
6	AT199383	2	Hydraulic Hose	(SUB FOR AT189618)
7	AT199405	2	Hydraulic Hose	(SINGLE FUNCTION), (SUB FOR AT191281)
7	AT199377	2	Hydraulic Hose	(DUAL FUNCTION), (SUB FOR AT191287)
8	AT199380	2	Hydraulic Hose	(SUB FOR AT166042 ) (SUB AT313432)
8	AT313432	2	Hydraulic Hose	-
9	AT199381	2	Hydraulic Hose	13/16" X 762 mm (30") X 13/16", (SUB FOR AT169466)
10	AT165909	2	Hydraulic Hose	13/16" X 965 mm (38") X 13/16"
11	38H1163	2	Adapter Fitting	-
11	38H1418	2	Fitting	(CABLE OPTION)
12	38H1048	2	Elbow Fitting	(45 DEGREE)
13	38H1324	2	Elbow Fitting	(90 DEGREE)
14	38H1272	2	Union Fitting	-
15	38H1007	4	Elbow Fitting	(90 DEGREE)
16	38H1215	1	Adapter Fitting	-
17	38H1543	1	Tee Fitting	-
18	38H1175	4	Adapter Fitting	-
19	38H1095	1	Elbow Fitting	(90 DEGREE)
20	T78707	3	Nut	30.175 mm (1-3/16")
21	38H1005	2	Elbow Fitting	-
22	38H1490	1	Elbow Fitting	-
23	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
24	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
25	T132838	2	Fitting Plug	-
26	AT199382	1	Hydraulic Hose	(SUB FOR AT189429)
27	R44302	3	Tie Band	-
28	AT313439	1	Hose Guard	-

GRAPPLE CYLINDER LINES (SINGLE & DUAL FUNCTION) (SN -600034)
