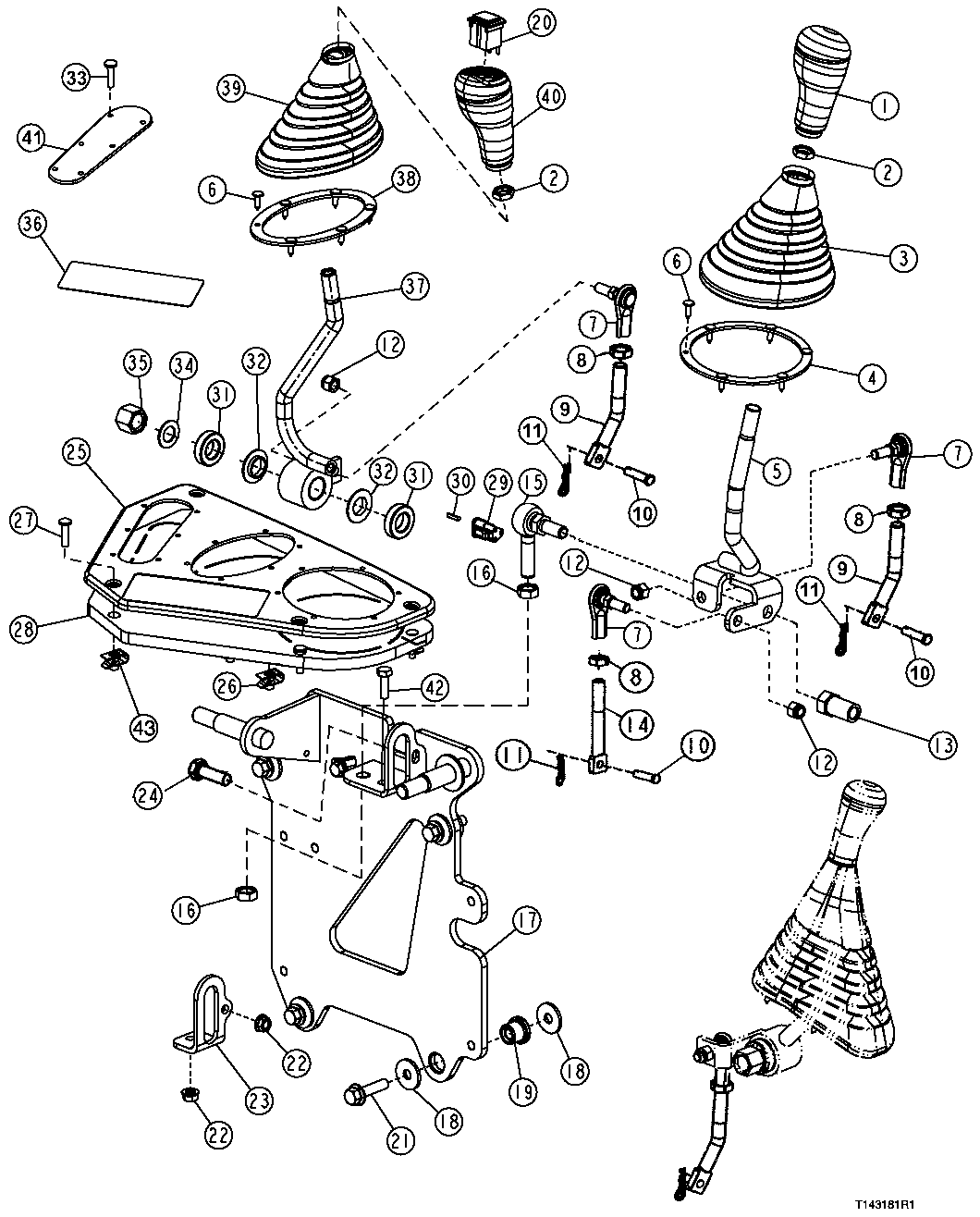

GRAPPLE CONTROL VALVE LEVERS & LINKAGE (DF)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT187802	1	Knob	-
2	14M7488	2	Nut	M14
3	T183460	1	Boot	-
4	T183402	1	Ring	-
5	AT186699	1	Mounting Parts	BOOM/ARCH WELDMENT
6	T183882	12	Clip	-
7	AT65619	3	Ball Joint	-
8	14H774	3	Nut	3/8"
9	T106130	2	Link	-
10	T19155	3	Pin Fastener	6.330 X 23.100 mm (0.249" X 0.909")
11	R46528	3	Spring Locking Pin	-
12	M68954	3	Lock Nut	9.525 mm (3/8")
13	T145279	1	Spacer	-
14	T105825	1	Eyebolt	-
15	AT124107	1	Ball Joint	(0.10)
16	14H856	2	Nut	1/2"
17	AT182301	1	Support	NLA
18	24M7296	8	Washer	10.500 X 30 X 2.500 mm
19	U42208	4	Isolator	-
20	AT186695	1	Switch	GRAPPLE ROTATE, (ALSO ORDER 57M7627 AND 57M7676)
21	19M8162	4	Screw	M10 X 40
22	14M7298	2	Flange Nut	M8
23	T145222	1	Angle	GUIDE
24	19M7407	1	Cap Screw	M8 X 25
25	AT190685	1	Cover	CONSOLE
25	-	1	Part 26	(AROUND EDGE OF CONSOLE) (MAKE FROM T63019 BULK MATERIAL, CUT TO LENGTH, 5 LF.)
26	M84972	1	Nut	-
27	T134895	4	Self-Locking Screw	M6 X 25, (SUB FOR 21M7310)
28	-	1	Part 29	( T184131 NO LONGER AVAILABLE)
29	57M7626	1	Elec. Connector Terminal	-
30	57M7676	1	Elec. Connector Terminal	-
31	T104482	2	Bushing	-
32	T104220	2	Washer	19.270 X 22.400 X 5.840 mm (0.759" X 0.882" X 0.230")
33	T183882	6	Clip	-
34	24H1375	1	Washer	11/16" X 1-1/8" X 0.060"
35	U44915	1	Lock Nut	15.875 mm (5/8")
36	T167016	1	Label	(DUAL FUNCTION GRAPPLE)
37	AT186698	1	Mounting Parts	TONG/ROTATE WELDMENT
38	T183403	1	Ring	-
39	T183461	1	Boot	-
40	AT186694	1	Knob	-
41	T165952	1	Cover	-
42	19M7866	1	Screw	M8 X 20
43	R134098	3	Nut	-

GRAPPLE CONTROL VALVE LEVERS & LINKAGE (DF)
