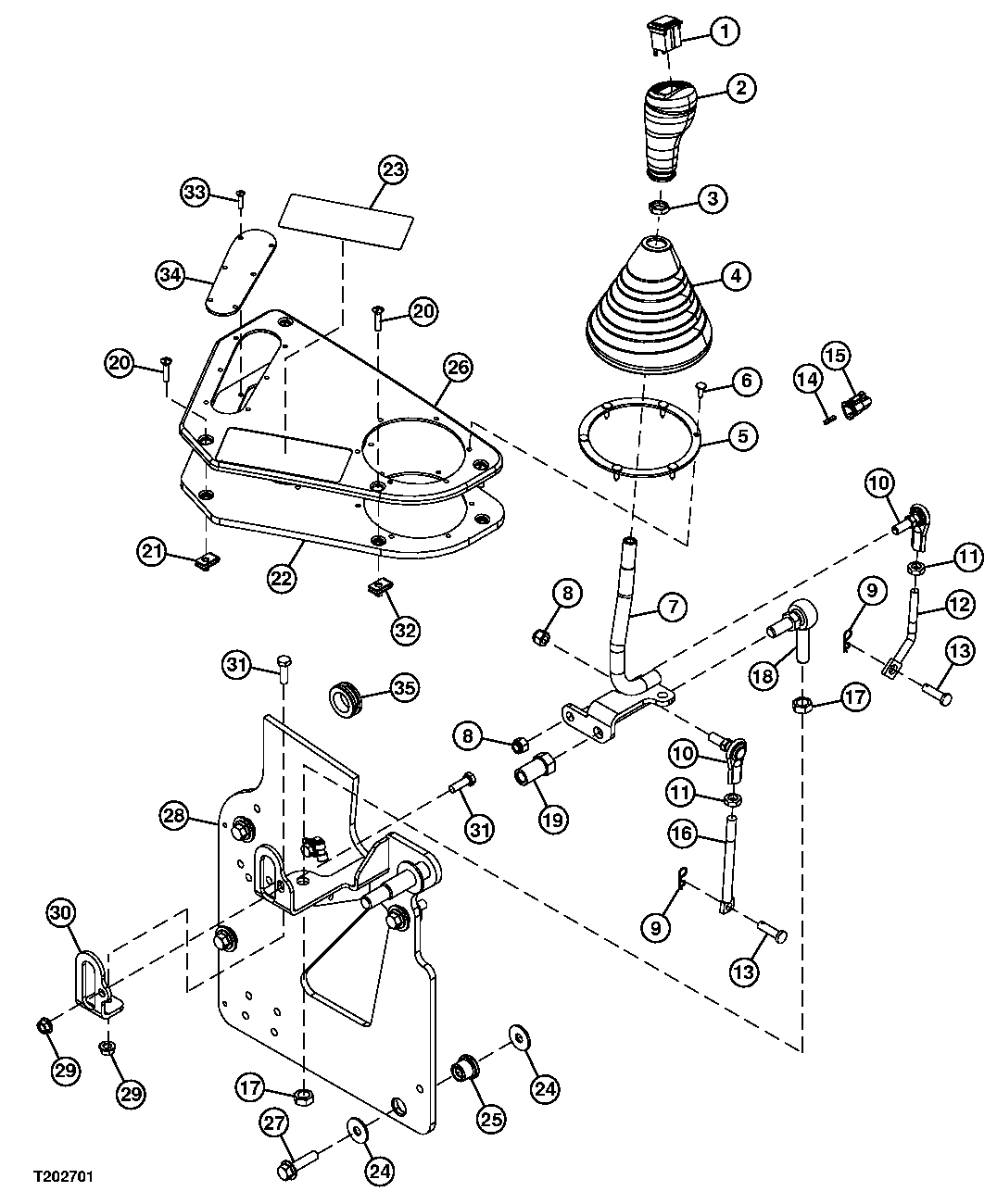

GRAPPLE CONTROL VALVE LEVERS AND LINKAGE (SF) (SN 596700-)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT186695	1	Switch	GRAPPLE ROTATE
2	AT186694	1	Knob	-
3	14M7488	1	Nut	M14
4	T183460	1	Boot	-
5	T183402	1	Ring	-
6	T183882	6	Clip	-
7	AT186692	1	Lever	-
8	M68954	2	Lock Nut	9.525 mm (3/8")
9	R46528	2	Spring Locking Pin	-
10	AT65619	2	Ball Joint	-
11	14H774	2	Nut	3/8"
12	T106130	1	Link	-
13	T19155	2	Pin Fastener	6.330 X 23.100 mm (0.249" X 0.909")
14	57M7676	1	Elec. Connector Terminal	-
15	57M7626	1	Elec. Connector Terminal	(0.10)
16	T105825	1	Eyebolt	-
17	14H856	2	Nut	1/2"
18	AT124107	1	Ball Joint	-
19	T145279	1	Spacer	-
20	T134895	4	Self-Locking Screw	M6 X 25, (SUB FOR 21M7310)
21	R134098	3	Nut	(SUB FOR R120332, THIS APPLICATION)
22	-	1	Part 22	(INCLUDED IN AT190686)
23	T167015	1	Label	SINGLE FUNCTION GRAPPLE
24	24M7178	8	Washer	10.500 X 30 X 2.500 mm
25	U42208	4	Isolator	-
26	AT190686	1	Cover	CONSOLE, (INCLUDES SEAL)
26	-	1	Part 27	(AROUND EDGE OF CONSOLE) (MAKE FROM T63019 BULK MATERIAL, CUT TO LENGTH, 5 LF.)
27	19M8162	4	Screw	M10 X 40
28	AT313395	1	Support	VALVE
29	14M7298	2	Flange Nut	M8
30	T145222	1	Angle	GUIDE
31	19M7407	2	Cap Screw	M8 X 25
32	M84972	1	Nut	-
33	T183882	6	Clip	-
34	T165952	1	Cover	-
35	R65477	1	Plug	-

GRAPPLE CONTROL VALVE LEVERS AND LINKAGE (SF) (SN 596700-)
