GRAPPLE CONTROL VALVE FITTINGS (PILOT) (DF) (SN 596700- )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

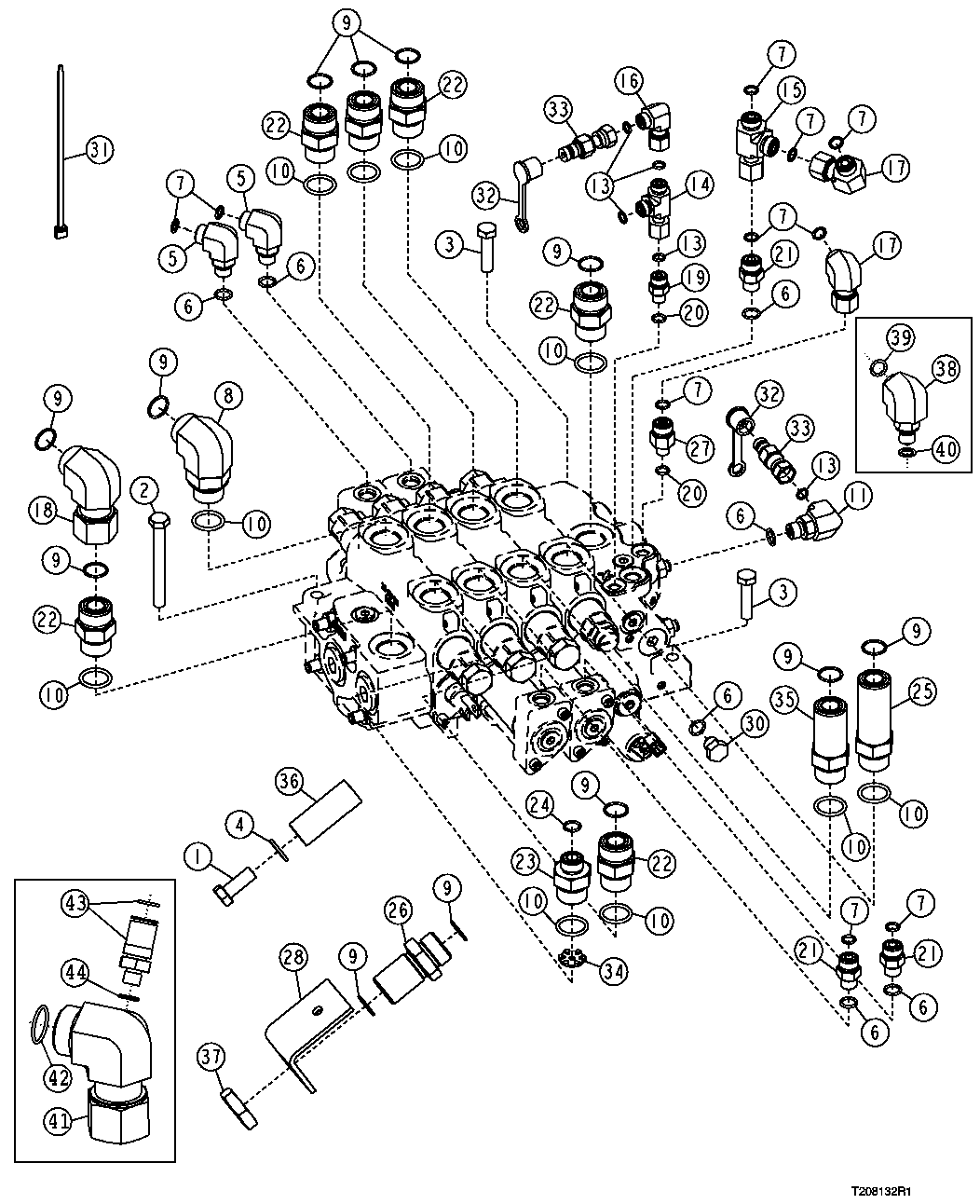

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8011	1	Cap Screw	M12 X 30
2	19M8183	1	Cap Screw	M10 X 90
3	19M8637	2	Cap Screw	M10 X 40
4	24M7047	1	Washer	13 X 24 X 2.500 mm
5	38H1004	2	Elbow Fitting	-
6	R26448	7	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
7	T77613	11	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	38H1007	1	Elbow Fitting	-
9	T77858	12	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
10	U12547	10	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
11	38H1009	1	Elbow Fitting	-
13	T77814	5	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
14	38H1029	1	Tee Fitting	-
15	38H1030	1	Tee Fitting	-
16	38H1093	1	Elbow Fitting	-
17	38H1094	2	Elbow Fitting	-
18	38H1097	1	Elbow Fitting	-
19	38H1159	1	Adapter Fitting	-
20	R28782	2	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
21	38H1160	3	Adapter Fitting	-
22	38H1163	6	Adapter Fitting	-
23	38H1175	1	Adapter Fitting	-
24	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
25	38H1215	1	Adapter Fitting	-
26	38H1276	1	Adapter Fitting	-
27	38H1309	1	Adapter Fitting	-
28	AT307473	1	Bracket	-
30	R27218	1	Fitting Plug	-
31	R44302	1	Tie Band	-
32	R77175	2	Cover	-
33	RE60700	2	Diagnostic Coupling	-
34	T152706	1	Restrictor	-
35	-	1	Part 33	(ORDER AT359328 ) (SUB FOR T154939 ) (INCLUDES T77858 AND U12547)
36	T163292	1	Pin	-
37	T78707	1	Nut	30.175 mm (1-3/16")
38	38H1435	1	Elbow Fitting	-
39	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
40	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
41	T215013	1	Tee Fitting	(SUB FOR AT321172)
42	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
43	AT321211	1	Fitting	-
44	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")

GRAPPLE CONTROL VALVE FITTINGS (PILOT) (DF) (SN 596700- )
