Открытый узел

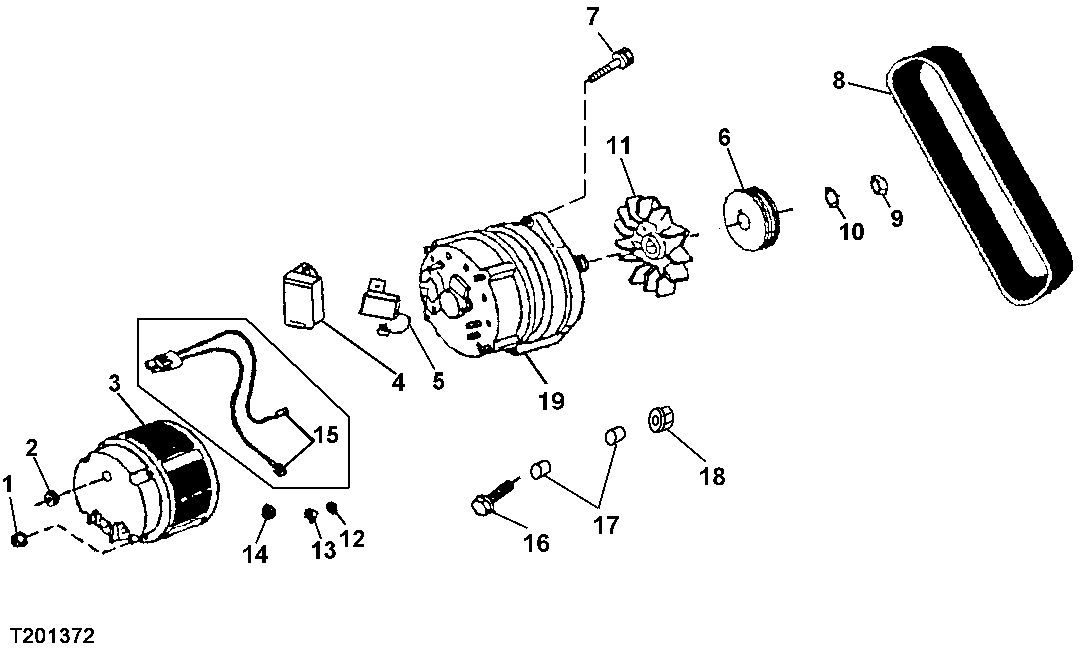

Alternator, Voltage Regulator & Alternator Belt (65A, 95A, 120A)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7375	4	Flange Nut	M5
2	R27180	1	Grommet	-
3	AH138291	1	Screen	(SUB FOR AT207952)
4	H144094	1	Voltage Regulator	-
5	H144095	1	Capacitor	-
6	R501486	1	Pulley	-
7	19M7800	1	Screw	M8 X 50, (SUB FOR 19M7868, THIS APPLICATION)
8	T185061	1	V-Belt	(TO SELECT PROPER FAN BELT REFER TO DTAC SOLUTION <service-part>55965.</service-part >) (WITHOUT A/C)
8	DZ118818	1	V-Belt	(TO SELECT PROPER FAN BELT REFER TO DTAC SOLUTION <service-part>55965.</service-part >) LGTH = 1745 mm, Without Air Conditioning, SUB FOR T190809
8	T185081	1	V-Belt	(TO SELECT PROPER FAN BELT REFER TO DTAC SOLUTION <service-part>55965.</service-part >) (WITH A/C)
8	R135600	1	V-Belt	(TO SELECT PROPER FAN BELT REFER TO DTAC SOLUTION <service-part>55965.</service-part >) (SUB FOR T190817)
9	14M7158	1	Nut	M16, OUTPUT TERMINAL
10	T10745	1	Washer	OUTPUT TERMINAL
11	T158584	1	Fan	-
12	12M7032	1	Lock Washer	8.400 mm
13	14M7298	1	Flange Nut	M8
14	14M7375	1	Flange Nut	M5
15	AT160701	1	Wiring Harness	-
16	19M7944	1	Screw	M10 X 120
17	W26301	2	Bushing	10.211 X 12.700 X 9.652 mm (0.402" X 1/2" X 0.380")
18	14M7296	1	Flange Nut	M10
19	AT173624	1	Alternator	(SUB FOR AT220393 ) (SUB TY6799)12V-65AMP (WITH STANDARD WORK LIGHTS)
19	-	1	Part 23	12V-65AMP, (WITH STANDARD WORK LIGHTS) (TY6799 NLA; ORDER SE501387
19	SE501387	1	Alternator Reman	REMAN FOR AT173624, AT220393 OR TY6799
19	TY24485	1	Alternator	12V-95AMP,
19	SE501342	1	Alternator Reman	REMAN FOR TY24485
19	AT185951	1	Alternator	(12V-120 AMP) NEW, (SUB AH165975)
19	AH165975	1	Alternator	(12 VOLT, 120 AMP) (BOSCH) (NEW)
19	SE501343	1	Alternator Reman	12 VOLT, 120 AMP, BOSCH; REMAN FOR AH165975

Alternator, Voltage Regulator & Alternator Belt (65A, 95A, 120A)

Нет текстового описания
