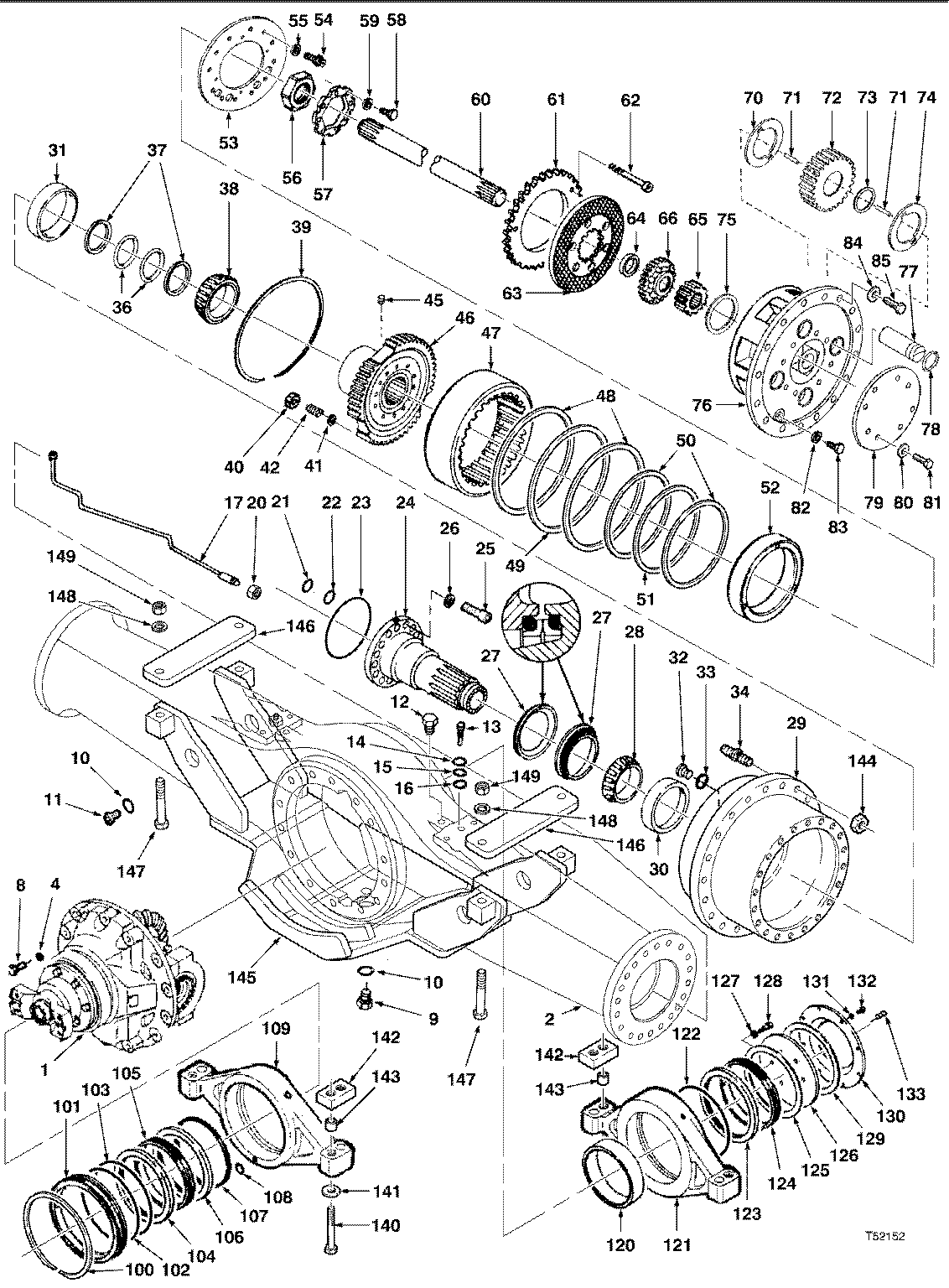

AXLE ASSY GRAPPLE FRONT 42R112 TW142D ( 10EC1103 - ) 5133-026/10 [5133-026/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F434917	1	Differential	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\VALVE SECTION - SEE VALVE ASSEMBLY\VALVE SECTION STEER ( AA5191 - CE7000) 2433-037/10
2	F434918	1	HOUSING -	-
4	841614200	28	WASHER	-
8	F433867	28	CAPSCREW -	-
9	F432941	1	PLUG - MAGNETIC	-
10	840287100	2	O-RING -	-
11	F432941	1	PLUG - MAGNETIC	-
12	810605700	1	PLUG -	-
13	F433232	2	FITTING -	-
14	841428600	2	O-RING -	-
15	F433020	2	SEAL RING -	-
16	F433233	2	RETAINING RING -	-
17	F434919	2	Brake Line	-
20	F434936	2	Nut	-
21	F434107	2	BACK-UP RING -	-
22	F433763	2	SEAL RING -	-
23	843042900	2	SEAL -	-
24	F433295	2	SPINDLE -	-
25	841806500	40	BOLT*M24-3.00X100 -	-
26	843100400	40	WASHER*METRIC 24 -	-
27	842265300	2	SEAL-ASSY -	-
28	843043900	2	CONE -	-
29	F433301	2	HUB -	-
30	841622400	2	BEARING-CUP - OUTER	-
31	F433781	2	BEARING-CUP - OUTER	-
32	F432941	2	PLUG - MAGNETIC	-
33	840287100	2	O-RING -	-
34	F433242	38	STUD -	-
36	F433243	4	SEAL -	-
37	F433244	4	BACK-UP RING -	-
38	840361800	2	BEARING-CONE	-
39	843100500	2	RETAINING RING -	-
40	F433909	6	NUT -	-
41	841627200	6	WASHER -	-
42	F433249	6	SPRING -	-
45	F433251	2	BLEEDER -	-
46	F433782	2	GEAR - & HOUSING - BRAKE	-
47	843043700	2	GEAR -	-
48	F433254	4	BACK-UP RING - OUTER	-
49	F433255	2	SEAL - OUTER	-
50	F433256	4	BACK-UP RING - INNER	-
51	F433594	2	RING-PISTON SEAL - INNER	-
52	F434937	2	PISTON - BRAKE	-
53	F434921	2	Retainer	-
54	810899400	24	BOLT*M10X1.50-35	-
55	843147500	24	WASHER*METRIC -	-
56	843044000	2	NUT-ADJUSTING*M105 -	-
57	843044100	2	LOCK -	-
58	F433783	8	BOLT -	-
59	843142700	8	WASHER*METRIC -	-
60	F432276	2	SHAFT-AXLE -	-
61	F434146	2	PLATE - PRESSURE -	-
62	F433869	6	BOLT -	-
63	F433307	2	DISC - FRICTION	-
64	F433265	2	THRUST WASHER -	-
65	841937000	2	GEAR -	-
66	F433303	2	COUPLING - DISC	-
70	841620600	4	WASHER*SPECIAL -	-
71	841936800	224	BEARING NEEDLE - NEEDLE	-
72	841936900	4	GEAR - PLANET	-
73	841620800	4	SPACER -	-
74	841620600	4	WASHER*SPECIAL -	-
75	841936300	1	THRUST WASHER -	-
76	F433305	1	CARRIER -	-
77	843043300	4	SHAFT -	-
78	841936600	4	O-RING -	-
79	F433306	1	PLATE -	-
80	F433279	8	WASHER -	-
81	F433280	8	BOLT -	-
82	840287100	2	O-RING -	-
83	F432941	2	PLUG - MAGNETIC	-
84	840766200	40	WASHER* 5/8 X 1 -	-
85	843100800	40	SCREW*METRIC 14X50 -	-
100	F433364	1	RETAINING RING - BUSHING	-
101	F433365	1	RETAINING RING - SEAL	-
102	810670300	1	O-RING -	-
103	811387000	1	O-RING -	-
104	F433366	1	SEAL - WIPER	-
105	F433367	1	BUSHING - TRUNION	-
106	F433366	1	SEAL - WIPER	-
107	811387000	1	O-RING -	-
108	F433376	1	VENT -	-
109	F433369	1	TRUNION - FRONT	-
120	F433370	1	WEAR RING -	-
121	F433371	1	TRUNION - REAR	-
122	811387000	1	O-RING -	-
123	F433366	1	SEAL - WIPER	-
124	F433372	1	BUSHING -	-
125	F433373	1	THRUST WASHER -	-
126	F433374	1	PLATE - THRUST	-
127	840766200	16	WASHER* 5/8 X 1 -	-
128	811045400	16	BOLT*M14X2.00-45 -	-
129	F433373	1	THRUST WASHER -	-
130	F433375	1	RETAINER - THRUST PLATE	-
131	840766200	12	WASHER* 5/8 X 1 -	-
132	811045400	12	BOLT*M14X2.00-45 -	-
133	F433376	1	VENT -	-
134	840855300	1	SEALANT - (NOT ILLUSTRATED)	-
140	811865900	8	BOLT*M24X3.00-180 -	-
141	810020200	8	WASHER*1	-
142	826991500	4	BLOCK -	-
143	F284913	4	DOWEL -	-
144	826918700	38	NUT*SPECIAL -	-
145	F283412	1	GUARD -	-
146	F283431	2	BAR -	-
147	811461200	4	BOLT*M20X2.50-110 -	-
148	810183200	4	Washer	-
149	811706700	4	LOCKNUT*M20X2.50 -	-
-	-	1	Part 115	-
-	-	1	Part 117	-
-	-	1	Part 114	-
-	-	1	Part 116	-
-	F433596	2	SEAL -	-
-	F433593	1	KIT*SEAL 42R - K2	-
-	F433592	1	KIT*SEAL-AXLE - TRUNION - K1	-
-	F433304	2	CARRIER - PLANET ASSY	-
-	F122406	1	AXLE -	-
