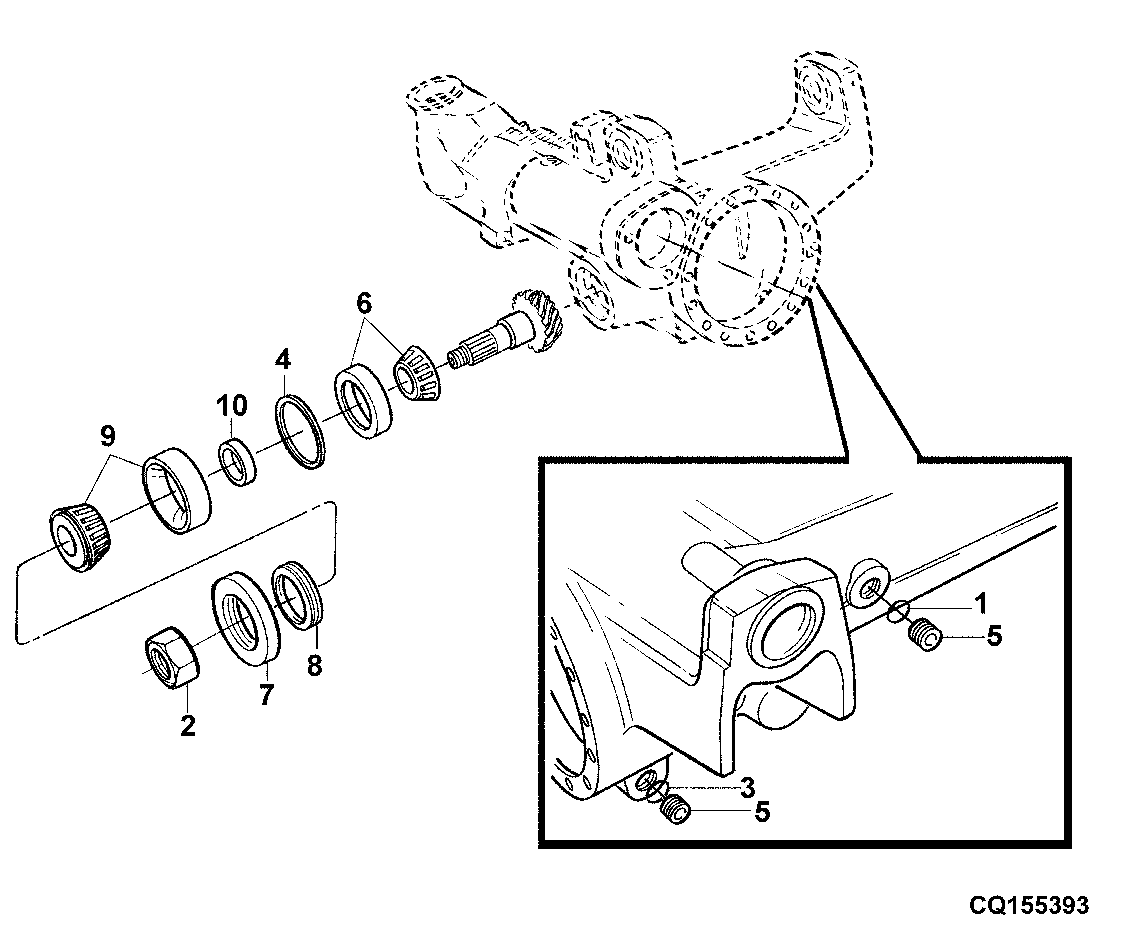

STEERING GEAR/DRIVE ASSY GROUPS (ZF)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L55580	1	O-Ring	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-)
2	CQ29317	1	Nut	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
3	L55580	1	O-Ring	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
4	L60042	1	Shim	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.50MM
4	L60043	1	Shim	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.60MM
4	L60052	1	Shim	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.65MM
4	L60044	1	Shim	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.70MM
4	L60053	1	Shim	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.75MM
4	L60045	1	Washer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.80MM
4	L60054	1	Washer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.85MM
4	L60046	1	Washer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.90MM
4	L60055	1	Washer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.95MM
4	L60056	1	Washer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 1.05MM
5	CQ27241	2	Plug	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
6	AL71099	1	Bearing	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
7	L39992	1	Guard	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
8	CQ67641	1	Seal	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
9	T116824	1	Tapered Roller Bearing	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
10	L61245	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK=11.87MM
10	L61246	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK=11.90MM
10	L61247	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK=11.93MM
10	L61248	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.96MM
10	L61249	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.99MM
10	L61250	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 12.02MM
10	L61251	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 12.05MM
10	L61252	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 12.08MM
10	CQ29315	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 12.11MM
10	CQ29316	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 12.14MM
10	L61255	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 12.17MM
10	L61256	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 12.20MM
10	L61257	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 12.23MM
10	L61258	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 12.26MM
10	L61259	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 12.29MM
10	L61260	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 12.32MM
10	L61261	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 12.35MM
10	L61262	1	Bushing	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 12.38MM
10	L61235	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.57MM
10	L61226	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.30MM
10	L61227	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.33MM
10	L61228	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.36MM
10	L61229	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.39MM
10	L61230	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.42MM
10	L61231	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.45MM
10	L61232	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.48MM
10	L61233	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.51MM
10	L61234	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.54MM
10	L61244	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.84MM
10	L61236	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.60MM
10	L61237	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.63MM
10	L61238	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.66MM
10	L61239	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.69MM
10	L61240	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.72MM
10	L61241	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.75MM
10	L61242	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.78MM
10	L61243	1	Spacer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 11.81MM

STEERING GEAR/DRIVE ASSY GROUPS (ZF)
