Открытый узел

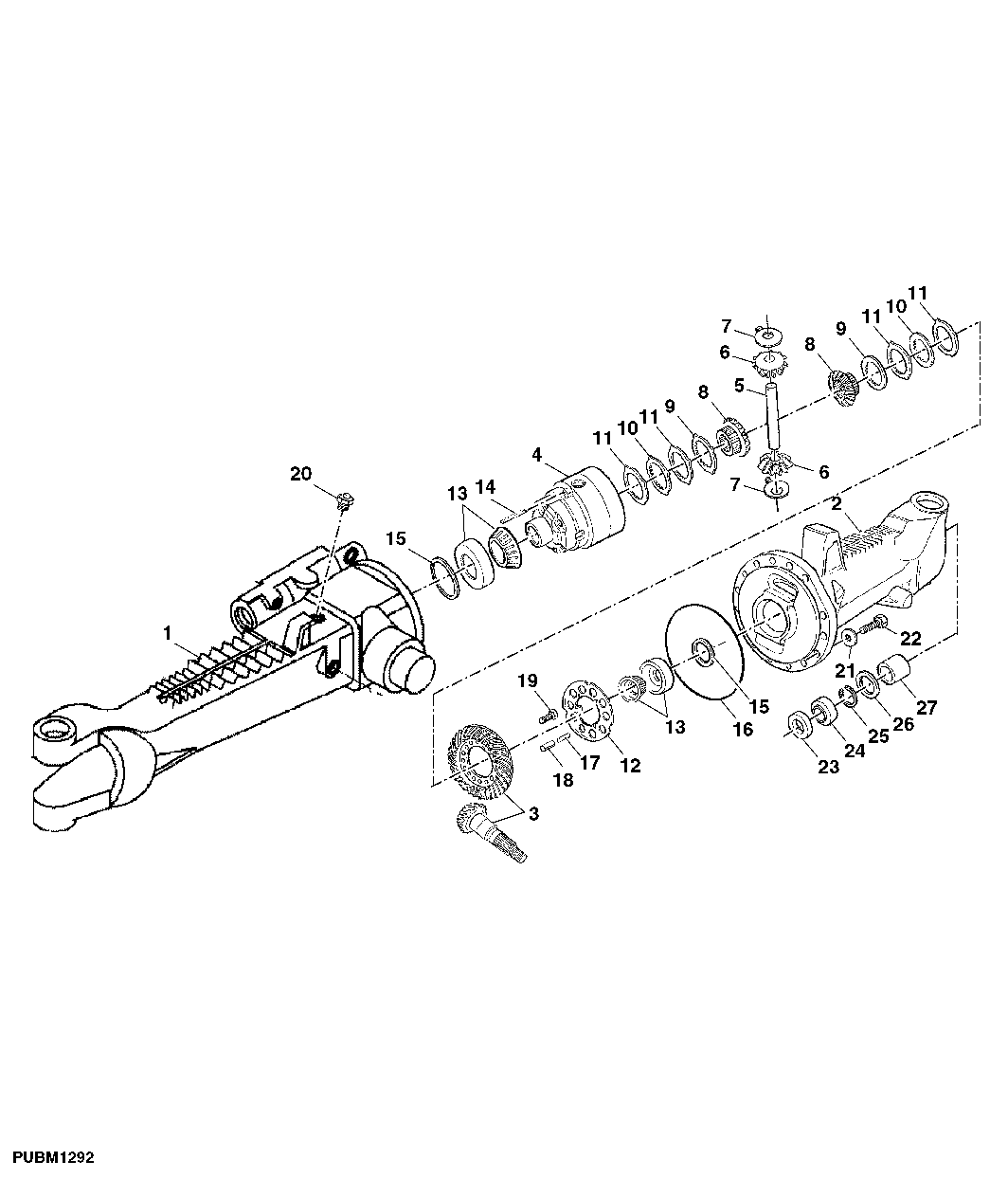

FRONT DRIVE AXLE - COMPONENTS (ZF)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CQ29346	1	Jumper	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) ORD SU23035, SU23036, L40306, (15) CQ29335, (15) L40014
2	CQ29347	1	Jumper	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) ORD SU23034
3	DQ29314	1	Ring Gear And Pinion	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-)
3	DQ51863	1	Ring Gear And Pinion	(Tractor Serial Number 5605- 026227-080728, 5705- 026227-080728) (Tractor Serial Number 5605- 090476-)
4	CQ29326	1	Cage	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
5	SU21969	1	Shaft	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
6	L101698	1	Bevel Gear	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
7	L40136	1	Thrust Washer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
8	CQ29330	1	Chain Sprocket	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
9	L40258	1	Disk With Inner Spline	-
10	L40280	1	Disk With Inner Spline	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
11	CQ29327	1	Disk With Outer Spline	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 1.1MM
11	CQ29329	1	Blade	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 1.4MM
11	CQ29328	1	Blade	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 1.3MM
11	L40022	1	Disk With Outer Spline	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 1.2MM
12	L40040	1	Lock Plate	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
13	CQ32596	1	Bearing	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
14	CQ29333	1	Spring Pin	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
15	L40092	1	Shim	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 1.75MM
15	L40093	1	Shim	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 1.50MM
15	L60118	1	Shim	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.65MM
15	L40090	1	Washer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.95MM
15	L40097	1	Washer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.90MM
15	L40096	1	Washer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.80MM
15	L40095	1	Shim	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.70MM
15	L40094	1	Shim	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.60MM
15	L60119	1	Shim	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.55MM
15	L40091	1	Washer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-) TK= 0.85MM
16	L40306	1	O-Ring	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
17	T116408	1	Spring Pin	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
18	T116409	1	Spring Pin	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
19	CQ29332	1	Bolt	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
20	AL32877	1	Vent	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
21	L40014	1	Washer	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
22	CQ29335	1	Cap Screw	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
23	CQ29344	2	Sheet	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
24	CQ27245	2	Seal	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
25	CQ27246	2	Snap Ring	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
26	CQ27244	1	Seal	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)
27	L60088	2	Bushing	(Tractor Serial Number 5605 -080728, 5705 -080728) (Tractor Serial Number 5605- 090476-)

FRONT DRIVE AXLE - COMPONENTS (ZF)

Нет текстового описания
