Открытый узел

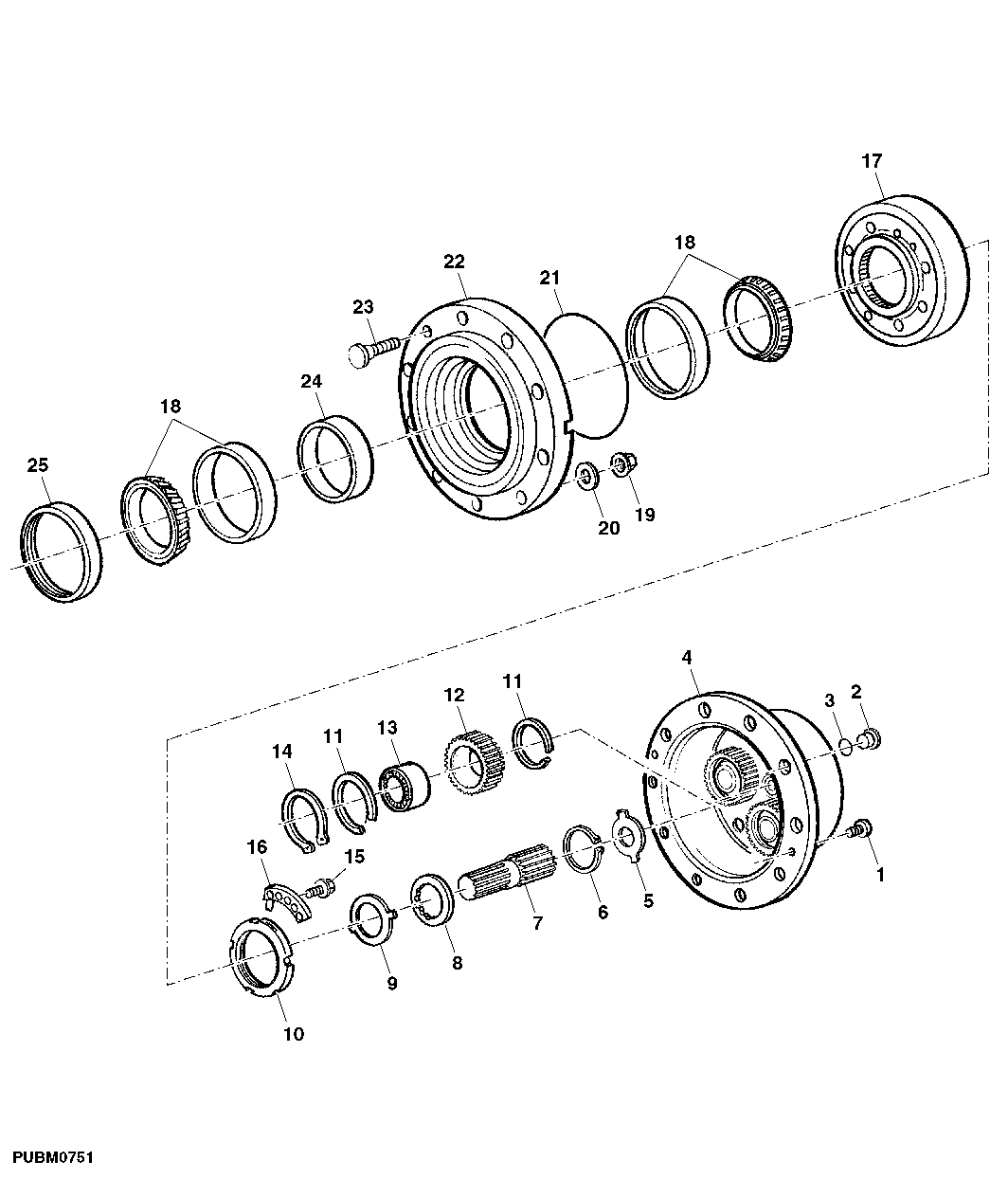

FINAL DRIVE (ZF)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
21	L40281	2	O-Ring	(Tractor Serial Number 5605- 090476-)
22	CQ29403	2	Hub	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-)
22	CQ52024	2	Hub	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-)
23	CQ49408	16	Bolt	(Tractor Serial Number 5605- 090476-)
24	CQ27283	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.389MM
24	CQ27285	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.439MM
24	CQ27286	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.464MM
24	CQ27287	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.489MM
24	CQ27288	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.514MM
24	CQ27289	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.539MM
24	CQ27290	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.564MM
24	CQ27291	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.589MM
24	CQ27292	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK =14.619MM
24	CQ27293	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.639MM
24	CQ27294	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK=14.664MM
24	CQ27295	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.689MM
24	CQ27296	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.714MM
24	CQ29379	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 12.000MM
24	CQ29380	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 12.025MM
24	CQ29381	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 12.050MM
24	CQ29382	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 12.075MM
24	CQ29383	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 12.100MM
24	CQ29384	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK =12.125MM
24	CQ29385	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 12.150MM
24	CQ29386	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 12.175MM
24	CQ29387	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 12.200MM
24	CQ29388	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 12.225MM
24	CQ29389	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 12.250MM
24	CQ27282	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.364MM
24	CQ29390	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 10.000MM
24	CQ29391	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 10.025MM
24	CQ29392	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 10.050MM
24	CQ29393	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 10.075MM
24	CQ29394	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 10.100MM
24	CQ29395	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 10.125MM
24	CQ29396	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 10.150MM
24	CQ29397	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 10.175MM
24	CQ29398	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 10.200MM
24	CQ29399	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 10.225MM
24	CQ29400	1	Spacer	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-) TK= 10.250MM
24	CQ27271	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.089MM
24	CQ27272	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.114MM
24	CQ27273	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.139MM
24	CQ27274	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.164MM
24	CQ27275	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.189MM
24	CQ27276	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.214MM
24	CQ27277	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.239MM
24	CQ27278	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.264MM
24	CQ27279	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.289MM
24	CQ27280	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.314MM
24	CQ27281	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.339MM
24	CQ27284	1	Spacer	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) TK= 14.414MM
25	AL68210	2	Seal	(Tractor Serial Number 5605 -026226 , 5705 -026226) (Tractor Serial Number 5605- 090476-)
25	AL200971	2	Seal	(Tractor Serial Number 5605- 026227- , 5705- 026227-) (Tractor Serial Number 5605- 090476-) SUB FOR AL68616

FINAL DRIVE (ZF)

Нет текстового описания
