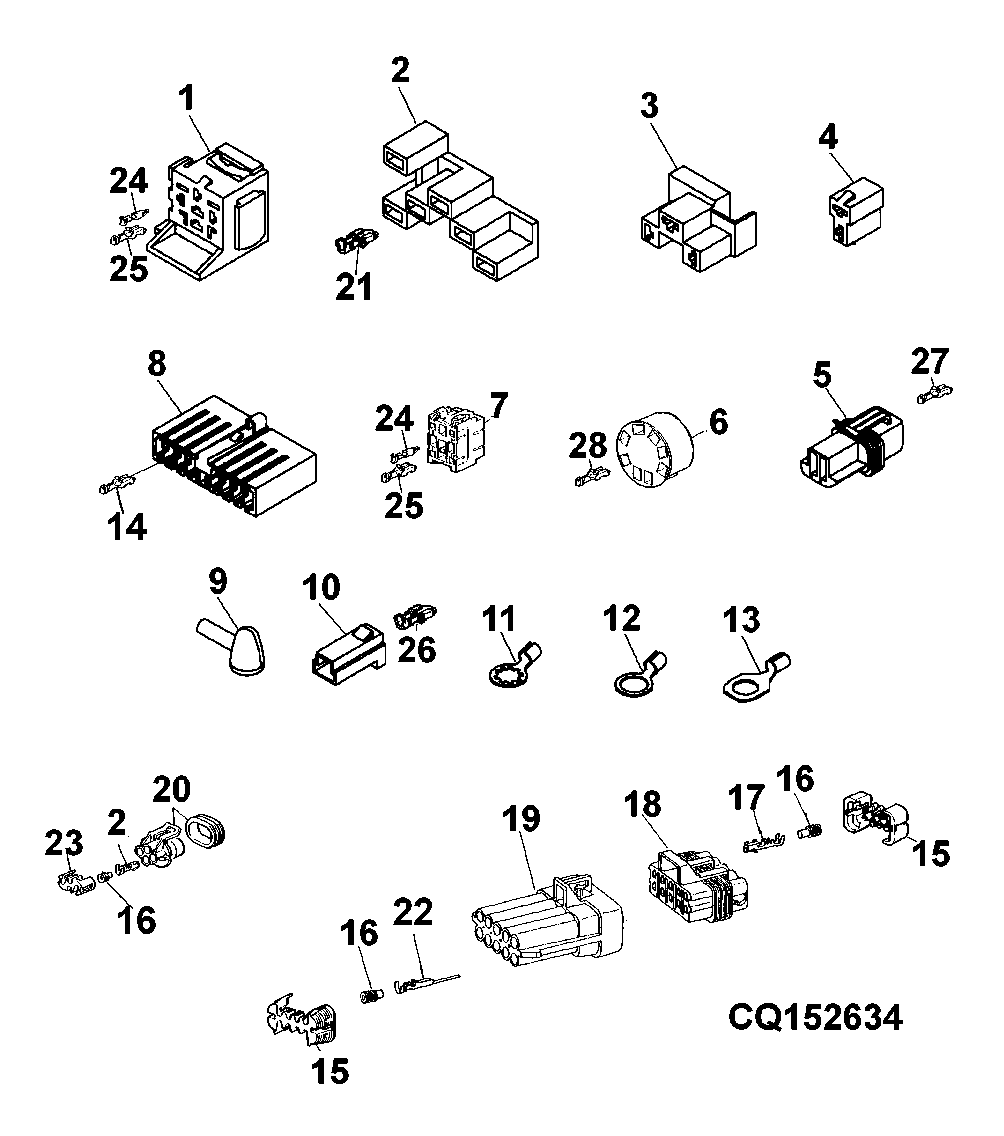

REGLETAS DE CONEXIONES Y DISTRIBUIDORES ELETRICOS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	ET15766	1	Elec. Connector Housing	-
2	E64911	1	Connector	-
3	CQ09403	1	Connector	-
4	CQ10886	1	Connector	-
5	RE42192	1	Connector	-
6	RE46736	1	Electrical Connector Assy	-
7	AL55738	1	CONECTOR	AMARELO, AMARILLO, YELLOW
8	57M7503	1	Elec. Connector Housing	-
9	R74993	1	Boot	-
10	T28583	1	Elec. Connector Housing	-
11	57M7557	1	Elec. Connector Terminal	TK=1,5MM
12	57M7564	1	Elec. Connector Terminal	TK=1,0MM
13	57M7552	1	Electrical Connector Assy	TK=2,5MM
14	57M7502	1	Elec. Connector Terminal	TK=0,5MM
15	57M7281	1	Elec.Connect Locking Device	-
16	57M7258	1	Elec. Connector Seal	-
17	R104846	1	Elec. Connector Terminal	TK=1,0MM
18	57M7262	1	Elec. Connector Housing	-
19	57M7265	1	Elec. Connector Housing	-
20	57M7349	1	Elec. Connector Accessory	-
21	U46662	1	Elec. Connector Terminal	-
22	57M7252	1	Elec. Connector Terminal	OD 2,5MM
23	57M7347	1	Elec. Connector Accessory	-
24	57M7514	1	Elec. Connector Terminal	TK=2MM
25	57M7513	1	Elec. Connector Terminal	TK=1MM
26	U46662	1	Elec. Connector Terminal	-
27	57M7829	1	Elec. Connector Terminal	-
28	57M7511	1	Elec. Connector Terminal	OD 0,5 - 0,75MM
-	57M7489	1	Elec. Connector Terminal	TK=1MM
-	57M7498	1	Elec. Connector Terminal	TK=2,5MM
-	57M7429	1	Elec. Connector Terminal	OD 1,00 - 1,5MM
-	57M7842	1	Electrical Connector Assy	-

REGLETAS DE CONEXIONES Y DISTRIBUIDORES ELETRICOS
