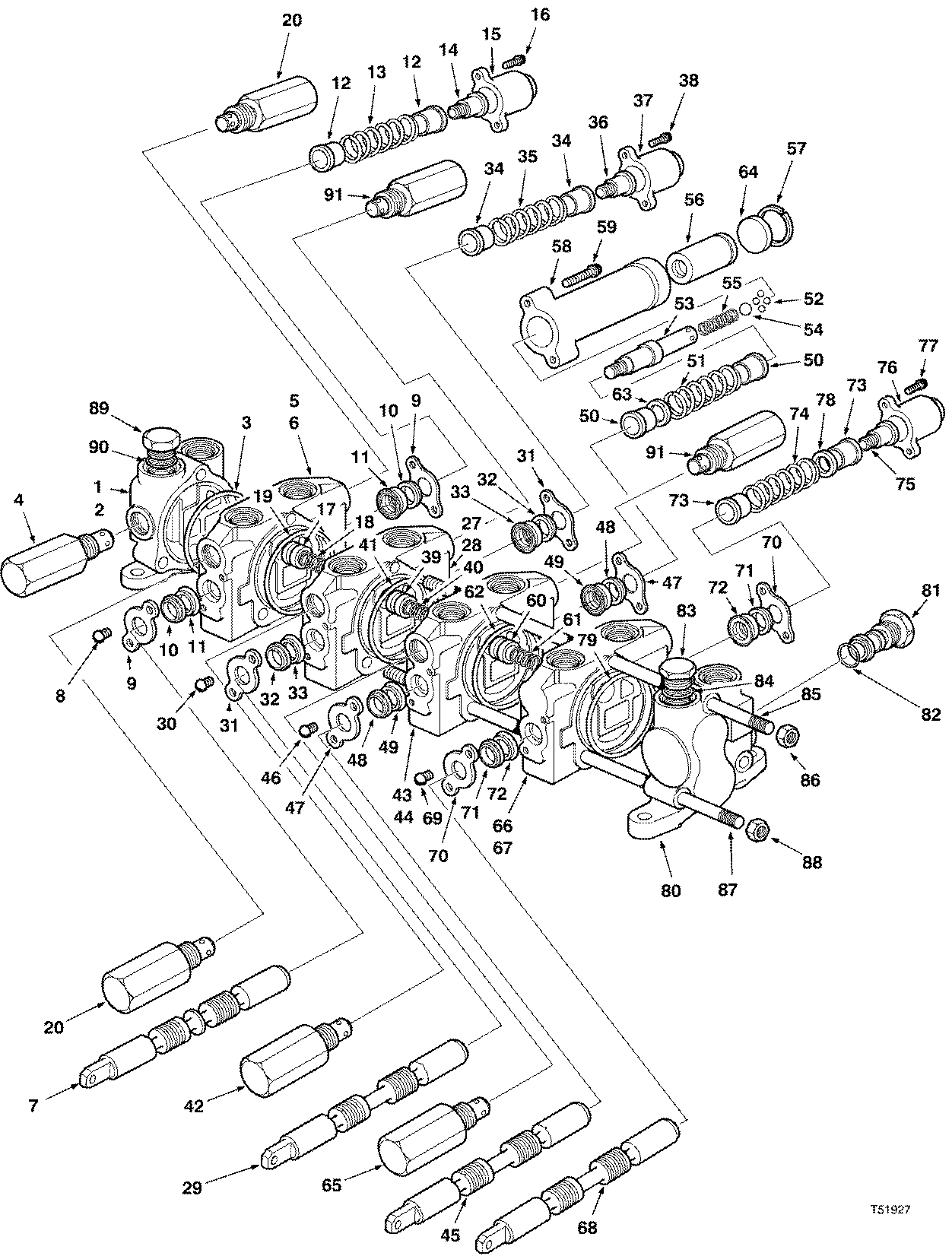

VALVE ASSEMBLY 4 SPOOL CONTROL MAIN GRAPPLE S/A ( 10EC1018 - 10EC1078) 2481-049/10 [2481-049/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	842850600	1	SECTION - INLET	-
2	-------	1	O-RING	-
3	-------	1	O-RING	-
4	843103500	1	VALVE-RELIEF - (3375 PSI)	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\VALVE SECTION - SEE VALVE ASSEMBLY\VALVE SECTION STEER ( AA5191 - CE7000) 2433-037/10
5	842934600	1	SECTION - DOZER	-
6	-------	1	O-RING	-
7	-------	1	O-RING	-
8	840083800	2	SCREW -	-
9	840081600	2	PLATE -	-
10	-------	2	O-RING	-
11	-------	2	O-RING	-
12	840081700	2	SEAT - SPRING	-
13	842934900	1	SPRING -	-
14	840081800	1	BOLT - SPECIAL	-
15	840081500	1	CAP -	-
16	790107200	2	SCREW -	-
17	842657600	1	POPPET - C.V	-
18	842656200	1	SPRING -	-
19	-------	1	O-RING	-
20	843103400	2	VALVE-RELIEF - (3225 PSI)	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\VALVE SECTION - SEE VALVE ASSEMBLY\VALVE SECTION STEER ( AA5191 - CE7000) 2433-037/10
27	843107300	1	SECTION - ARCH -	-
28	-------	1	O-RING	-
29	-------	1	O-RING	-
30	840083800	2	SCREW -	-
31	840081600	2	PLATE -	-
32	-------	2	O-RING	-
33	-------	2	O-RING	-
34	840081700	2	SEAT - SPRING	-
35	842934900	1	SPRING -	-
36	840081800	1	BOLT - SPECIAL	-
37	840081500	1	CAP -	-
38	790107200	2	SCREW -	-
39	842657600	1	POPPET - C.V	-
40	842656200	1	SPRING -	-
41	-------	1	O-RING	-
42	843103400	1	VALVE-RELIEF - (3225 PSI)	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\VALVE SECTION - SEE VALVE ASSEMBLY\VALVE SECTION STEER ( AA5191 - CE7000) 2433-037/10
43	F434648	1	SECTION -	-
44	-------	1	O-RING	-
45	-------	1	O-RING	-
46	840083800	2	SCREW -	-
47	840081600	2	PLATE -	-
48	-------	2	O-RING	-
49	-------	2	O-RING	-
50	843107500	2	SEAT -	-
51	843107600	1	SPRING -	-
52	842858600	4	BALL	-
53	843107700	1	DETENT PIN -	-
54	842935200	1	BALL - SPRING	-
55	842935600	1	SPRING -	-
56	843107800	1	SLEEVE - SPRING -	-
57	843107900	1	RETAINING RING -	-
58	843108600	1	CAP - SPOOL -	-
59	790107200	2	SCREW -	-
60	842657600	1	POPPET - C.V	-
61	842656200	1	SPRING -	-
62	-------	1	O-RING	-
63	843108400	1	SHIM -	-
64	843108500	1	SPACER -	-
65	843103400	1	VALVE-RELIEF - (3225 PSI)	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\VALVE SECTION - SEE VALVE ASSEMBLY\VALVE SECTION STEER ( AA5191 - CE7000) 2433-037/10
66	843108100	1	SECTION - ROTATE -	-
67	-------	1	O-RING	-
68	-------	1	O-RING	-
69	840083800	2	SCREW -	-
70	840081600	2	PLATE -	-
71	-------	2	O-RING	-
72	-------	2	O-RING	-
73	840081700	2	SEAT - SPRING	-
74	842934900	1	SPRING -	-
75	840081800	1	BOLT - SPECIAL	-
76	840081500	1	CAP -	-
77	790107200	2	SCREW -	-
78	843108200	1	SHIM -	-
79	-------	1	O-RING	-
80	842852000	1	SECTION - OUTLET	-
81	842851500	1	PLUG -	-
82	842851600	1	O-RING -	-
83	840083500	1	PLUG*1-1/16-12 -	-
84	-------	1	O-RING	-
85	790073700	1	ROD	-
86	810087800	2	NUT*1/2-20UNF	-
87	790073800	2	ROD	-
88	810114200	4	NUT*7/16-20UNF	-
89	F432158	1	Plug	-
90	-------	1	O-RING	-
91	F434190	2	VALVE-RELIEF - (3500 PSI)	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\VALVE SECTION - SEE VALVE ASSEMBLY\VALVE SECTION STEER ( AA5191 - CE7000) 2433-037/10
-	F122358	1	VALVE - CONTROL (4 SPOOL)	-
-	843134400	1	KIT - SEAL -	-
