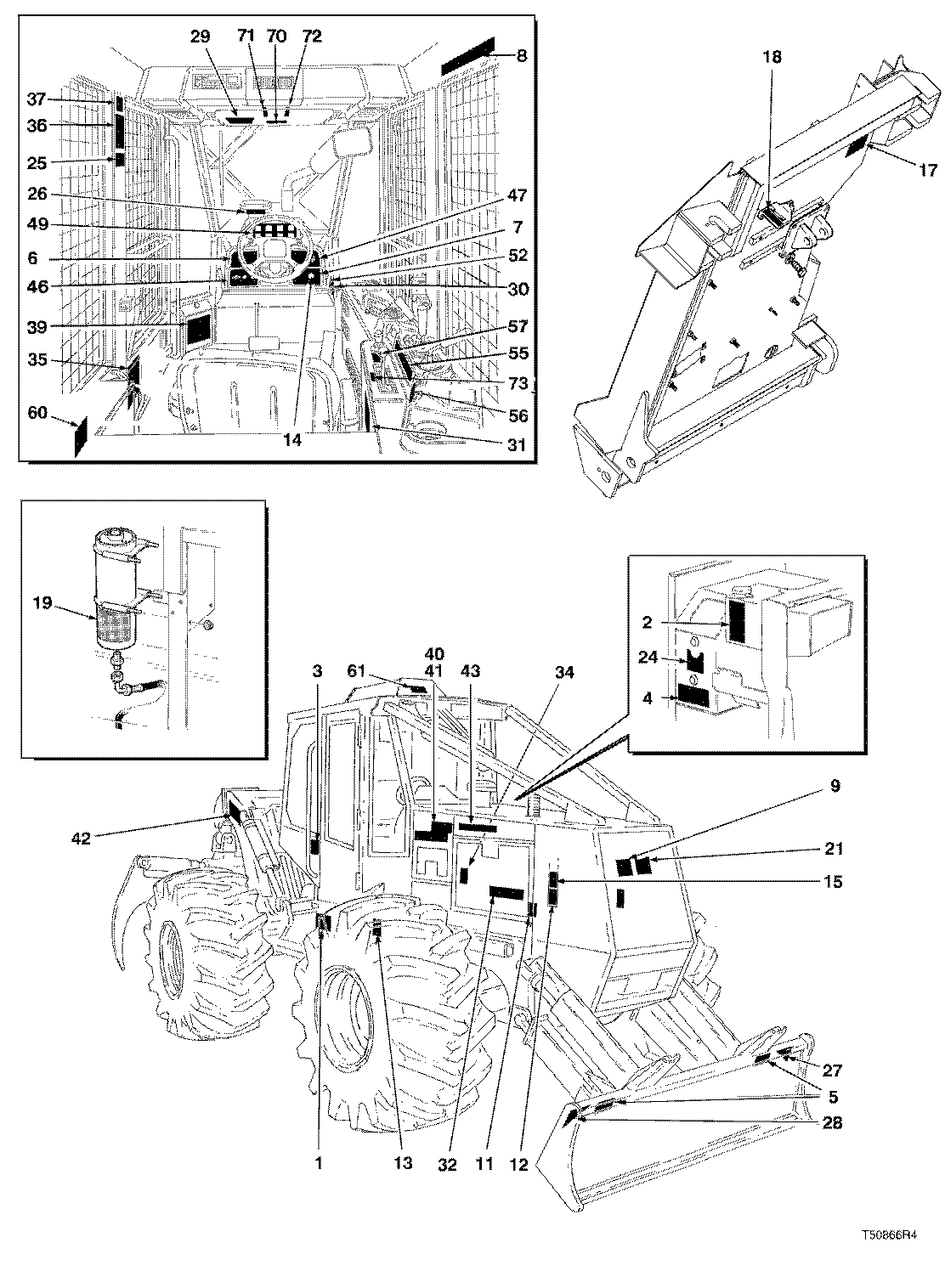

DECALS ENGLISH ( CE2001 - 974801) 7510-053/10 [7510-053/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	826928900	2	DECAL - CRUSH ZONE & PROPSHAFT	-
2	826929000	1	Label	-
3	826929300	2	DECAL - MOUNT/DISMOUNT	-
4	826929400	1	DECAL - PRESSURIZED SYSTEM	-
5	826929500	2	DECAL - BLOCK SUSPENDED LOADS	-
6	826929200	1	DECAL - DASH PANEL-UPPER L.H	-
7	826931000	1	DECAL - DASH PANEL-LOWER R.H	-
8	F276493	1	DECAL - ROPS CERT PLATE	-
9	F279873	1	DECAL - A/C SYSTEM	-
11	826930400	2	Safety Sign	-
12	826930500	1	DECAL - DISCONNECT POWER	-
13	826930800	1	DECAL - DO NOT PRESSURIZE FUEL	-
14	F279332	1	DECAL - TRANS. CONTR. CONFIG	-
15	826931300	1	DECAL - SHORTING ACROSS STARTER	-
17	F278089	1	DECAL - CRUSH ZONE/CAB	-
18	F278136	1	DECAL - CAB/TILT/SAFETY LATCH	-
19	827311900	2	Label	-
21	826762500	1	EMBLEM - DONKEY -	-
24	826961100	1	DECAL - HYD TANK OIL LEVEL	-
25	F280350	1	DECAL - WINCH (560/T40D)	-
26	F282129	1	DECAL - AIR INTAKE HEATER	-
27	826793900	1	DECAL - DOZER-L.H	-
28	826794000	1	DECAL - DOZER-R.H	-
29	F283745	1	DECAL - START INSTRUCTION	-
30	826930900	1	DECAL - MASTER DISCONNECT	-
31	F283445	1	DECAL - EGS INTERLOCK	-
32	827311700	1	DECAL - TRANS CONTROL VALVE	-
34	F284571	1	DECAL - CAB TILT	-
35	F278419	1	DECAL - MAINTENANCE CHART	-
36	826931100	1	DECAL - SAFETY PRECAUTIONS	-
37	826929100	1	DECAL - BLOCK LOADS/HYD LINES	-
39	F279399	1	DECAL - FUSE PANEL	-
40	F281411	1	DECAL - 560-R.H	-
41	F281410	1	DECAL - 560-L.H	-
42	826929600	2	DECAL - ARCH, KEEP CLEAR (GRAPPLE ONLY)	-
43	700875600	2	Label	-
46	826930300	1	DECAL - DASH PANEL-LOWER L.H	-
47	F281891	1	DECAL - ALARM/PARK BRAKE-660	-
49	827191500	1	DECAL - CENTRE DASH	-
52	F280356	1	DECAL - AIR HEATER	-
55	826929900	1	DECAL - BLADE FUNCTION (CABLE ONLY)	-
56	826930000	1	DECAL - TRANSMISSION/WINCH	-
57	826930600	1	DECAL - DIFF LOCK	-
60	826955800	1	DECAL - FIRE SUPPRESSION SYS	-
61	826955900	1	DECAL - PRESSURIZED SYS	-
70	827246500	1	DECAL - TERMINAL BLOCK	-
71	827335800	1	DECAL - FUSE HOLDER	-
72	827246900	1	DECAL - FUSE HOLDER	-
73	827332700	1	DECAL - EGS OVERIDE SWITCH	-
-	826952800	1	DECAL - BLADE/GRAPPLE FUNCTION (460 D/A)	-
-	826955400	1	DECAL - BLADE/CLAMP FUNCTION (CABLE ONLY)	-
-	F281879	1	DECAL - ALARM/PARK BRAKE - (MONITOR)	-
-	F281412	1	DECAL - 660-L.H	-
-	F281413	1	DECAL - 660-R.H	-
-	F280351	1	DECAL - WINCH (660/T40D)	-
-	F280349	1	DECAL - WINCH (660/T60D)	-
