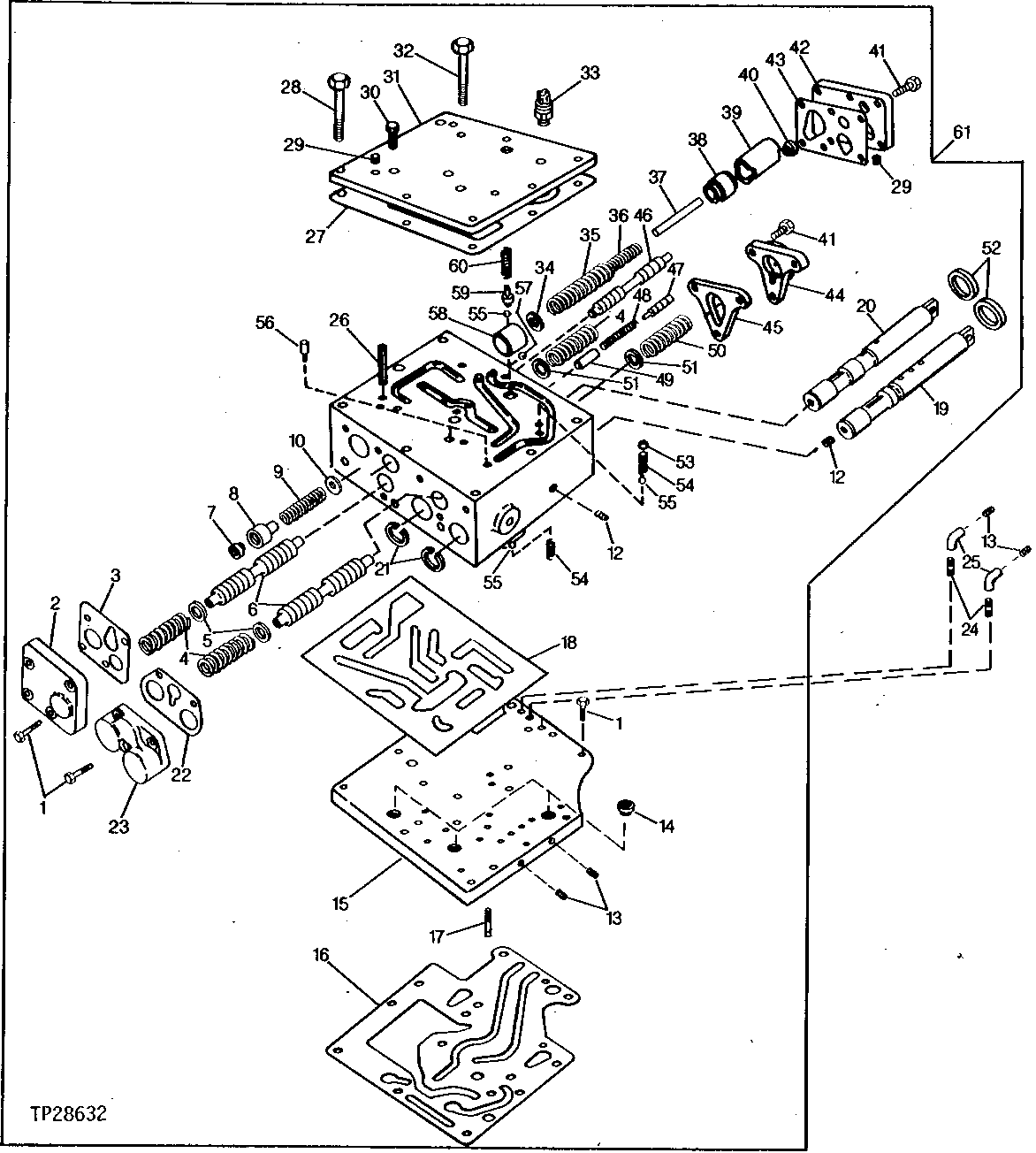

TRANSMISSION SELECTOR VALVE (SANDWICH PLATE, SPOOLS, MODULATING AND SELECTOR COVERS) (SERIAL NO. -720212) [01D06]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3239	10	Cap Screw	3/8" X 1-1/4"
2	T44855	1	COVER	MODULATING VALVE
3	T44861	1	GASKET	-
4	T44879	2	COMPRESSION SPRING	-
5	T44884	2	Washer	-
6	T44873	2	SPOOL	FIRST, SECOND, AND DIRECTIONAL SEQUENCE
7	AT52233	1	ORIFICE	-
8	T44862	1	STOP	THIRD SEQUENCE SPOOL
9	T44880	1	Compression Spring	-
10	T44883	1	WASHER	-
11	-	1	Part 11	(SUB AT43737)
12	15H275	2	Pipe Plug	1/4" 1/8"
13	15H638	3	Pipe Plug	1/8"
14	AT43739	2	ORIFICE	FIRST, SECOND AND DIRECTION SEQUENCE SPOOLS, RATE AND RISE
15	T44868	1	PLATE	SANDWICH
16	T44912	1	GASKET	-
17	19H3053	3	Screw	5/16" X 1"
18	T70140	1	GASKET	-
19	T44871	1	SPOOL	RANGE
20	T44872	1	SPOOL	DIRECTIONAL
21	T44869	2	SNAP RING	RETAINING
22	T44858	1	GASKET	-
23	T44852	1	COVER	SELECTOR SPOOL
24	29H25	2	Threaded Nipple	1/8" X 3"
25	15H155	2	ELBOW FITTING	1/8", 45°
26	34H388	1	Spring Pin	5/32" X 2-1/4"
27	T44857	1	GASKET	-
28	19H2229	7	Cap Screw	3/8" X 5-1/4"
29	15H638	5	Pipe Plug	1/8"
30	19H2705	4	Cap Screw	5/16" X 1"
31	T44851	1	COVER	-
32	19H2345	2	Cap Screw	3/8" X 5-1/2"
33	AT80076	1	SWITCH	(NEUTRAL START)
34	T44848	1	WASHER	-
35	T44877	1	SPRING	-
36	T44876	1	COMPRESSION SPRING	-
37	T44863	1	PIN	-
38	T44866	1	HYDRAULIC PRESSURE VALVE	-
39	T44849	1	BUSHING	-
40	AT43740	1	ORIFICE	-
41	19H1732	8	Cap Screw	3/8" X 1-1/4"
42	T44853	1	COVER	-
43	T44859	1	GASKET	-
44	T44854	1	COVER	FIRST AND SECOND SEQUENCE SPOOL
45	T44860	1	GASKET	-
46	T44874	1	SPOOL	THIRD SEQUENCE
47	T44875	1	SPOOL	-
48	T44881	1	SPRING	-
49	T44870	1	STOP	-
50	T44879	2	COMPRESSION SPRING	-
51	T44884	2	Washer	-
52	AT43738	2	SEAL	-
53	T44885	1	CAP	-
54	T44878	2	SPRING	-
55	R42849	3	Ball	-
56	T44865	1	PIN FASTENER	-
57	H23836	1	Ball	-
58	T44837	1	PISTON	-
59	T44864	1	PIN	-
60	T44882	1	SPRING	-
61	AT43737	1	VALVE	-
