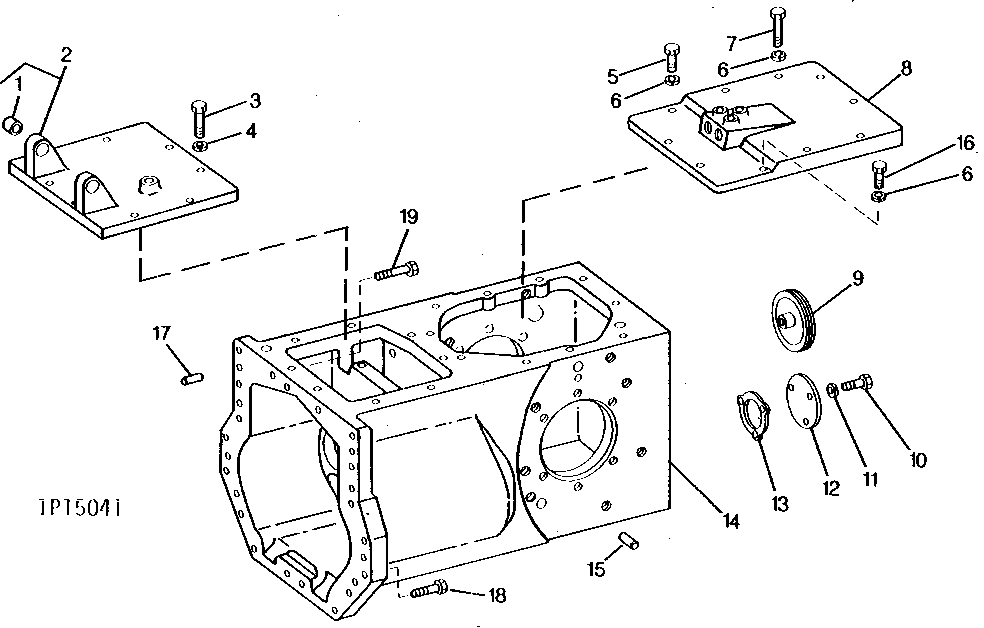

TRANSMISSION CASE AND COVERS (SERIAL NO. 720213- ) [01C12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T42687	2	BUSHING	-
2	AT40189	1	COVER	(SUB T41186 AND (2) T42687)
3	19H1805	8	CAP SCREW	1/2" X 2-1/4"
4	12H301	8	Lock Washer	1/2"
5	19H2676	1	Cap Screw	3/8" X 1"
6	12H304	10	Lock Washer	3/8"
7	19H1726	6	Cap Screw	3/8" X 2-1/4"
8	T41188	1	COVER	-
9	T20757	1	PLUG	-
10	19H2664	3	Cap Screw	5/16" X 3/4", (WITHOUT WINCH DRIVE)
11	12H303	3	Lock Washer	5/16", (WITHOUT WINCH DRIVE)
12	T15070	1	COVER	(WITHOUT WINCH DRIVE)
13	T12405	1	GASKET	(WITHOUT WINCH DRIVE)
14	T45617	1	HOUSING	-
15	T18621	4	DOWEL PIN	-
16	19H2633	3	Cap Screw	3/8" X 1-1/2"
17	T21655	2	PIN	-
18	19H2473	12	Cap Screw	1/2" X 1-3/4"
18	TY9371	1	Sealant	(ON ALL ATTACHING HARDWARE SPIRAL BEVEL HOUSING TO POWER SHIFT HOUSING)
19	19H2644	3	Cap Screw	1/2" X 2-1/2"

TRANSMISSION CASE AND COVERS (SERIAL NO. 720213- ) [01C12]
