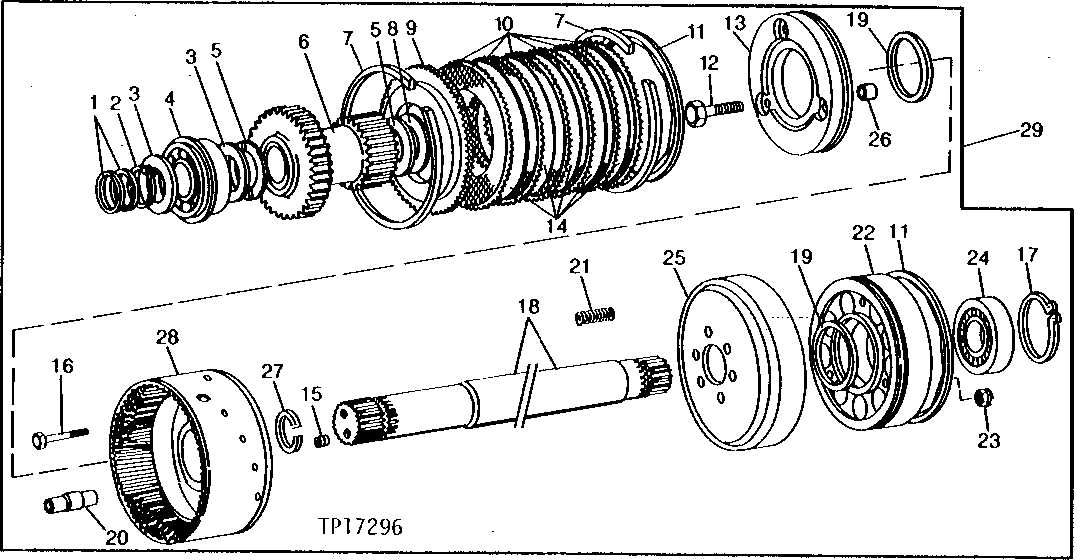

THIRD RANGE CLUTCH (SERIAL NO. 720213- ) [01D01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT78841	1	KIT	SEALING RING, 1.3 MM (0.05") OVERSIZE (CONTAINS EIGHT RINGS)
1	T104813	2	RING	SEALING, (SUB FOR T44809, THIS APPLICATION)
2	T15509	1	Snap Ring	-
3	T44814	2	WASHER	-
4	JD9432	1	Ball Bearing	-
5	T44815	2	WASHER	THRUST
6	AT43728	1	PINION	THIRD CLUTCH, (MARKED UXB9613) (32 TEETH)
7	T44806	2	RING	INTERNAL SNAP
8	T44807	1	Thrust Bearing Race	THRUST
9	T44803	1	PLATE	CLUTCH PACK
10	T44805	6	CLUTCH PLATE	SINTERED
11	AT43725	2	RING	-
12	19H2960	3	Cap Screw	HS, SAE 8, 3/8" X 1-3/4"
13	T44802	1	PISTON	CLUTCH
14	T44804	5	CLUTCH PLATE	STEEL
15	15H558	2	Pipe Plug	1/8"
16	19H1648	9	Cap Screw	3/8" X 3/4"
17	U43883	1	SNAP RING	INTERNAL
18	T44818	1	SHAFT	-
19	T44810	2	RING	SEALING
20	T44811	3	RETAINER	SPACER, PISTON SPRING
21	T50776	9	SPRING	PISTON RETURN
22	T48505	1	PISTON	CLUTCH
23	T44799	3	NUT	-
24	JD8681	1	CYLINDRICAL ROLLER BEARING	-
25	T104814	1	DRUM	-
26	T48504	3	BUSHING	PISTON STOP
27	T104809	1	SNAP RING	-
28	T44795	1	DRUM	-
29	AT104348	1	CLUTCH	(NO LONGER AVAILABLE)

THIRD RANGE CLUTCH (SERIAL NO. 720213- ) [01D01]
