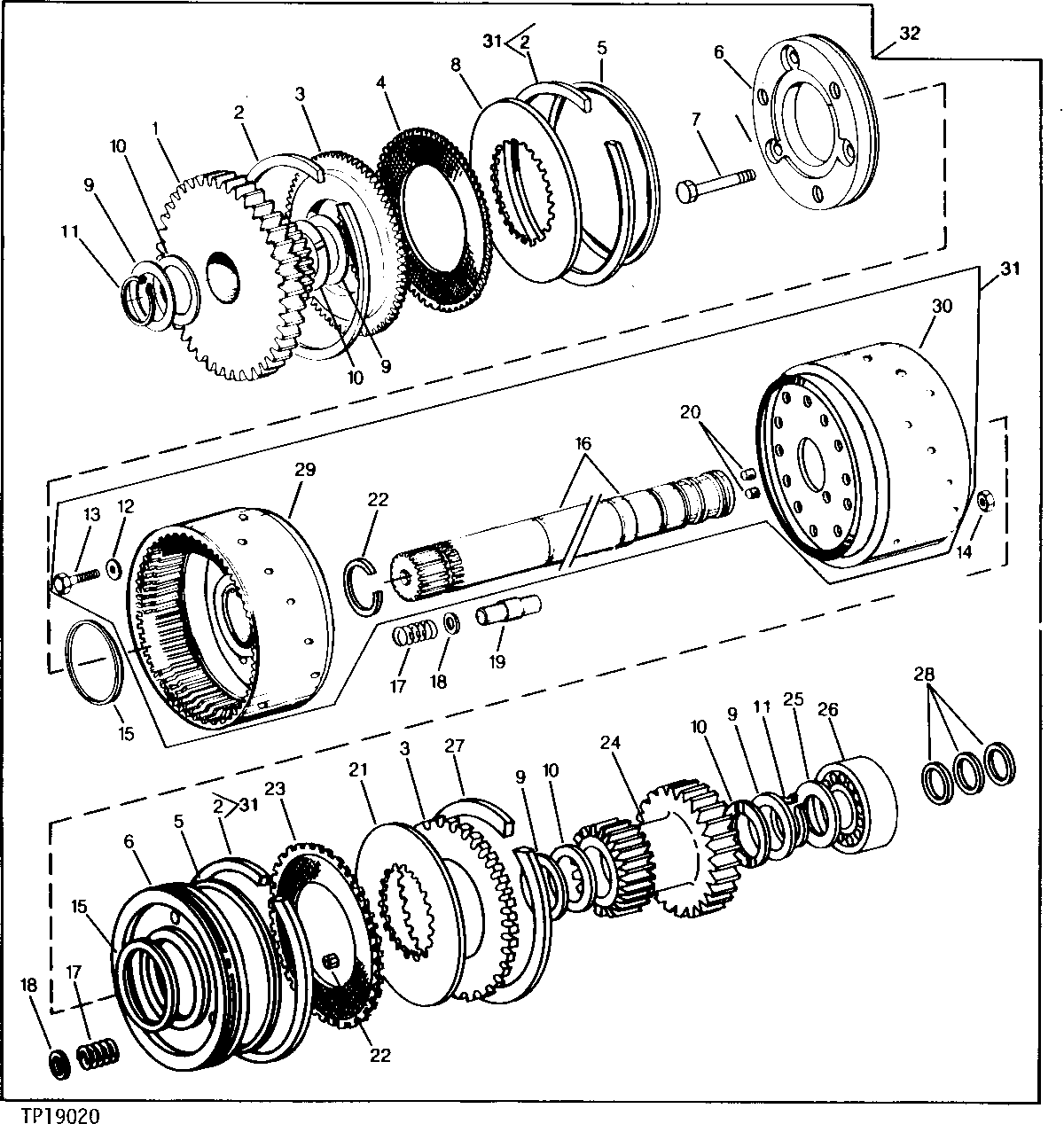

FORWARD AND REVERSE DIRECTIONAL CLUTCH (SERIAL NO. 720213- ) [01C22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT43724	1	PINION	REVERSE CLUTCH WITH BUSHING (MARKED UXB7223) (53 TEETH)
2	T44806	3	RING	INTERNAL SNAP
3	T44803	2	PLATE	CLUTCH BACK
4	T44805	6	CLUTCH PLATE	SINTERED CLUTCH
5	AT43725	2	RING	EXPANDER
6	T105141	2	PISTON	EXPANDER
7	T44813	6	CAP SCREW	CLUTCH
8	T44804	5	CLUTCH PLATE	STEEL CLUTCH
9	T44807	4	Thrust Bearing Race	THRUST
10	T44815	4	WASHER	THRUST
11	U11031	2	Snap Ring	EXTERNAL
12	12M7059	6	Disk Spring	10.200 X 20 X 0.800 MM
13	19H2676	6	Cap Screw	3/8" X 1"
14	T44799	6	NUT	-
15	T44810	2	RING	SEALING
16	T104808	1	SHAFT	DIRECTIONAL CLUTCH
17	T105142	12	EXTENSION SPRING	PISTON RETURN
18	T44816	12	WASHER	SPRING RETAINER
19	T44811	6	RETAINER	SPACER PISTON SPRING
20	15H558	2	Pipe Plug	1/8"
21	T44804	5	CLUTCH PLATE	-
22	T104809	1	SNAP RING	-
23	T44805	6	CLUTCH PLATE	-
24	AT43723	1	PINION	-
25	T44814	1	WASHER	-
26	JD9969	1	Cylindrical Roller Bearing	-
27	T104812	1	SNAP RING	(INSTALL INTERNAL SNAP RING IN FORWARD DRUM REAR PISTON)
28	T104813	3	RING	-
28	-	1	Part 29	(SUB (8) T79138) (SUB FOR AT78841) SEALING RING, 1.3 MM (0.05") OVERSIZE
29	T105140	1	DRUM	REVERSE
30	T104807	1	DRUM	FORWARD
31	AT113260	1	SHAFT	-
32	AT113260	1	SHAFT	(SUB FOR AT104347) (USE IF AVAILABLE)

FORWARD AND REVERSE DIRECTIONAL CLUTCH (SERIAL NO. 720213- ) [01C22]
