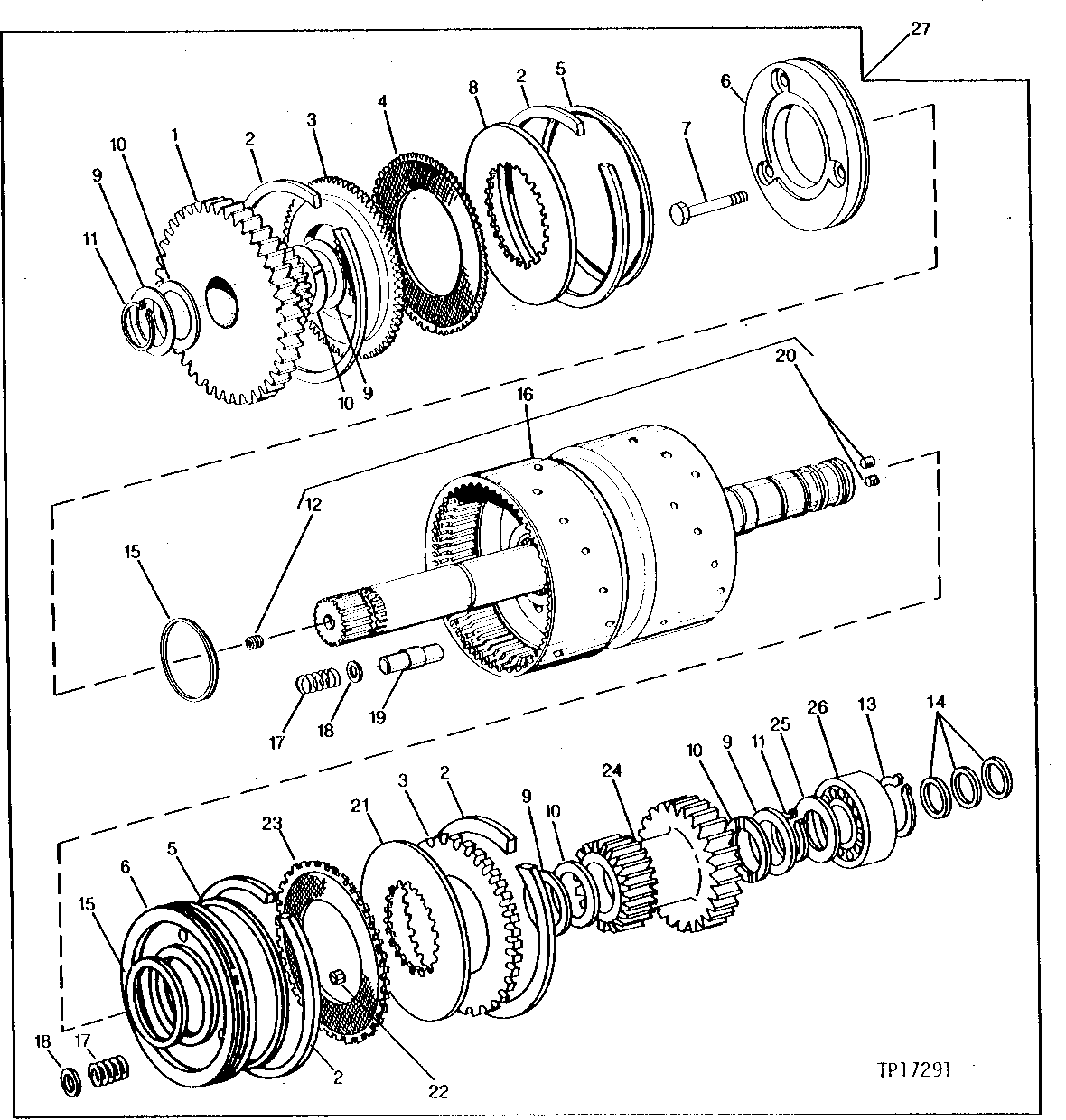

FORWARD AND REVERSE DIRECTIONAL CLUTCH (SERIAL NO. -720212) [01C15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT43724	1	PINION	REVERSE CLUTCH WITH BUSHING (MARKED UXB7223) (53 TEETH)
2	T44806	4	RING	INTERNAL SNAP
3	T44803	2	PLATE	CLUTCH BACK
4	T44805	6	CLUTCH PLATE	SINTERED CLUTCH
5	AT43725	2	RING	EXPANDER
6	T44802	2	PISTON	EXPANDER (WITH THREE HOLES)
6	T105141	2	PISTON	(WITH SIX HOLES)
7	T44826	3	CAP SCREW	CLUTCH (WITH THREE HOLES)
7	T44826	6	CAP SCREW	(WITH SIX HOLES)
8	T44804	5	CLUTCH PLATE	STEEL CLUTCH
9	T44807	4	Thrust Bearing Race	THRUST
10	T44815	4	WASHER	THRUST
11	U11031	2	Snap Ring	EXTERNAL
12	T44800	1	ORIFICE	-
13	T15509	1	Snap Ring	-
14	T104813	3	RING	(SUB FOR T44809, THIS APPLICATION)
14	-	1	Part 17	(SUB (8) T79138) (SUB FOR AT78841) SEALING RING, 1.3 MM (0.05") OVERSIZE
15	T44810	2	RING	SEALING
16	AT104958	1	SHAFT	DIRECTIONAL CLUTCH, WITH DRUMS, (SUB FOR AT43722) (WHEN SUBBED FOR AT43722 ALSO ORDER T104812)
17	T44812	6	Spring	PISTON RETURN (WITH THREE HOLE PISTON)
17	T105142	12	EXTENSION SPRING	(PISTON RETURN WITH SIX HOLE PISTON)
18	T44816	6	WASHER	SPRING RETAINER (WITH THREE HOLES)
18	T44816	12	WASHER	(WITH SIX HOLES)
19	T44811	3	RETAINER	SPACER PISTON SPRING (WITH THREE HOLES)
19	T44811	6	RETAINER	(WITH SIX HOLES)
20	15H558	2	Pipe Plug	1/8"
21	T44804	5	CLUTCH PLATE	-
22	T44799	3	NUT	(WITH THREE HOLES)
22	T44799	6	NUT	(WITH SIX HOLES)
23	T44805	6	CLUTCH PLATE	-
24	AT43723	1	PINION	-
25	T44814	1	WASHER	-
26	JD9969	1	Cylindrical Roller Bearing	-
27	AT112959	1	AT112959	(SUB FOR AT43721)

FORWARD AND REVERSE DIRECTIONAL CLUTCH (SERIAL NO. -720212) [01C15]
