FIRST AND SECOND RANGE CLUTCH (SERIAL NO. 720213- ) [01C24]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	(SUB (8) T79138) (SUB FOR AT78841) SEALING RING, 1.3 MM (0.05") OVERSIZE
1	T104813	3	RING	SEALING
2	T15509	1	Snap Ring	-
3	T44814	2	WASHER	-
4	JD9432	1	Ball Bearing	-
5	T44815	4	WASHER	THRUST
6	AT43731	1	GEAR	WITH BUSHING, (MARKED UXB7220) (38 TEETH)
7	T44806	3	RING	-
8	T44807	3	Thrust Bearing Race	-
9	T44803	2	PLATE	CLUTCH BACK
10	T44805	1	CLUTCH PLATE	(CENTERED PLATE 2ND RANGE) (FIRST RANGE PACK REQUIRES 8 SINTERED PLATES AND 7 STEEL DISKS) (SECOND RANGE PACK USES 6 SINTERED PLATES AND 5 STEEL DISCS)
11	AT43725	2	RING	SEALING WITH EXPANDER
12	T44802	1	PISTON	CLUTCH
13	T44810	2	RING	-
14	T44823	3	RETAINER	FIRST AND SECOND PISTON SPRING
15	T44816	6	WASHER	SPRING RETAINER
16	T105142	6	EXTENSION SPRING	PISTON RETURN
17	19H3315	3	Cap Screw	-
18	T44804	1	CLUTCH PLATE	(STEEL DISK PLATE-2ND RANGE) (FIRST RANGE PACK REQUIRES 8 SINTERED PLATES AND 7 STEEL DISKS) (SECOND RANGE PACK USES 6 SINTERED PLATES AND 5 STEEL DISKS)
19	15H558	2	Pipe Plug	1/8"
20	T104809	1	SNAP RING	3/8"
21	19H1648	9	Cap Screw	3/8" X 3/4", (HIGH STRENGTH)
22	T104816	1	SHAFT	FIRST AND SECOND
23	T44822	1	PISTON	-
24	T44799	3	NUT	-
25	T44804	7	CLUTCH PLATE	(STEEL DISK PLATE - 1RST RANGE)
26	T44805	8	CLUTCH PLATE	(CENTERED PLATE - 1RST RANGE)
27	AT43732	1	GEAR	(48 TEETH) (MARKED UXB7224)
28	T44820	1	DRUM	FIRST RANGE
29	T104815	1	DRUM	SECOND RANGE
30	JD8537	1	Ball Bearing	-
31	T64736	1	Snap Ring	(SUB FOR T104865)
32	T104818	1	SPLINED COUPLING	-
33	T104817	1	SLEEVE	-
34	400R	1	Ball	-
35	T104812	1	SNAP RING	(INSTALL INTERNAL SNAP RING IN FORWARD DRUM REAR PISTON)
36	12M7059	9	Disk Spring	10.200 X 20 X 0.800 MM
37	U11031	1	Snap Ring	-
38	AT113261	1	SHAFT	-
39	AT104349	1	CLUTCH	(NO LONGER AVAILABLE)

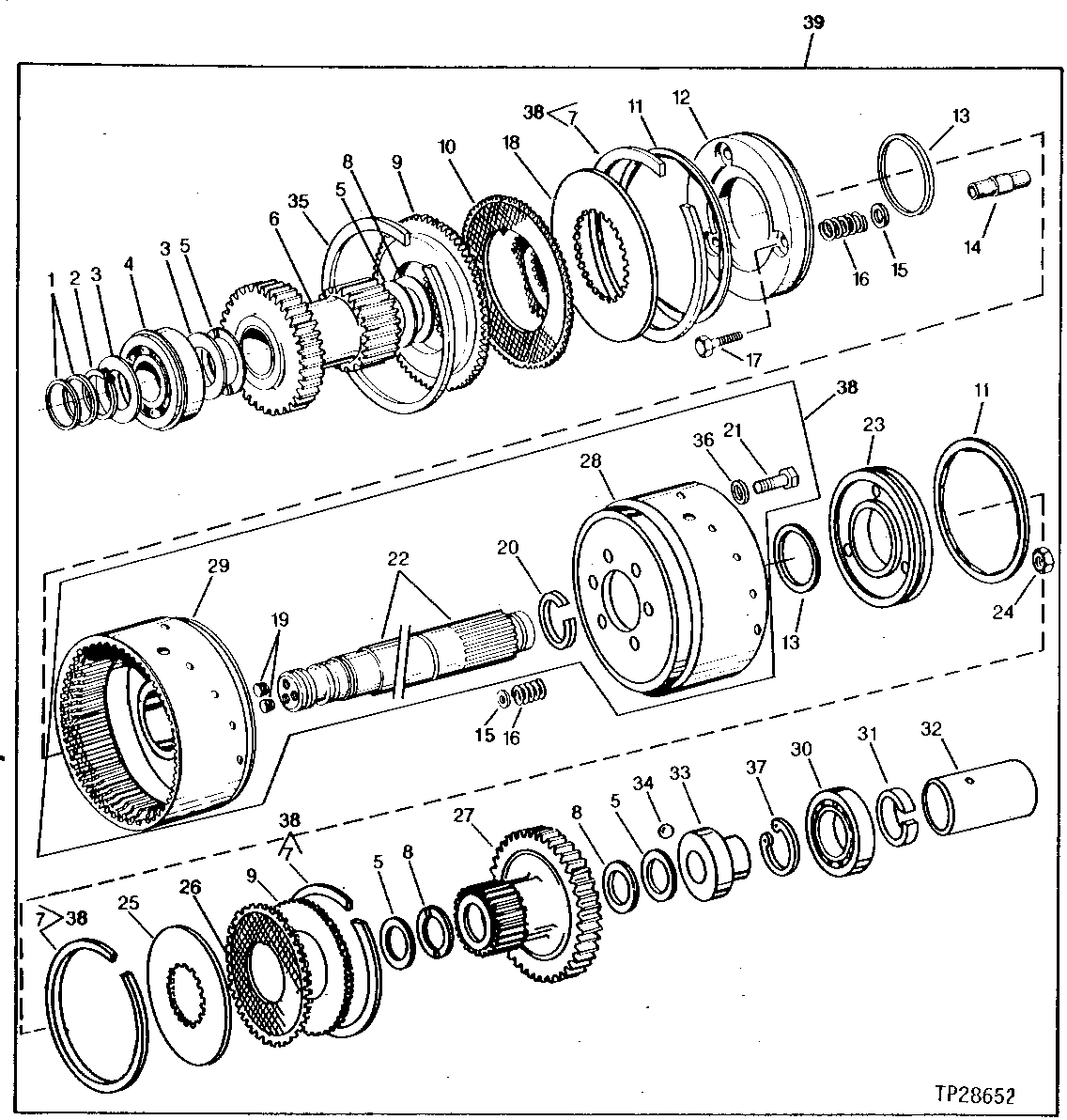

FIRST AND SECOND RANGE CLUTCH (SERIAL NO. 720213- ) [01C24]
