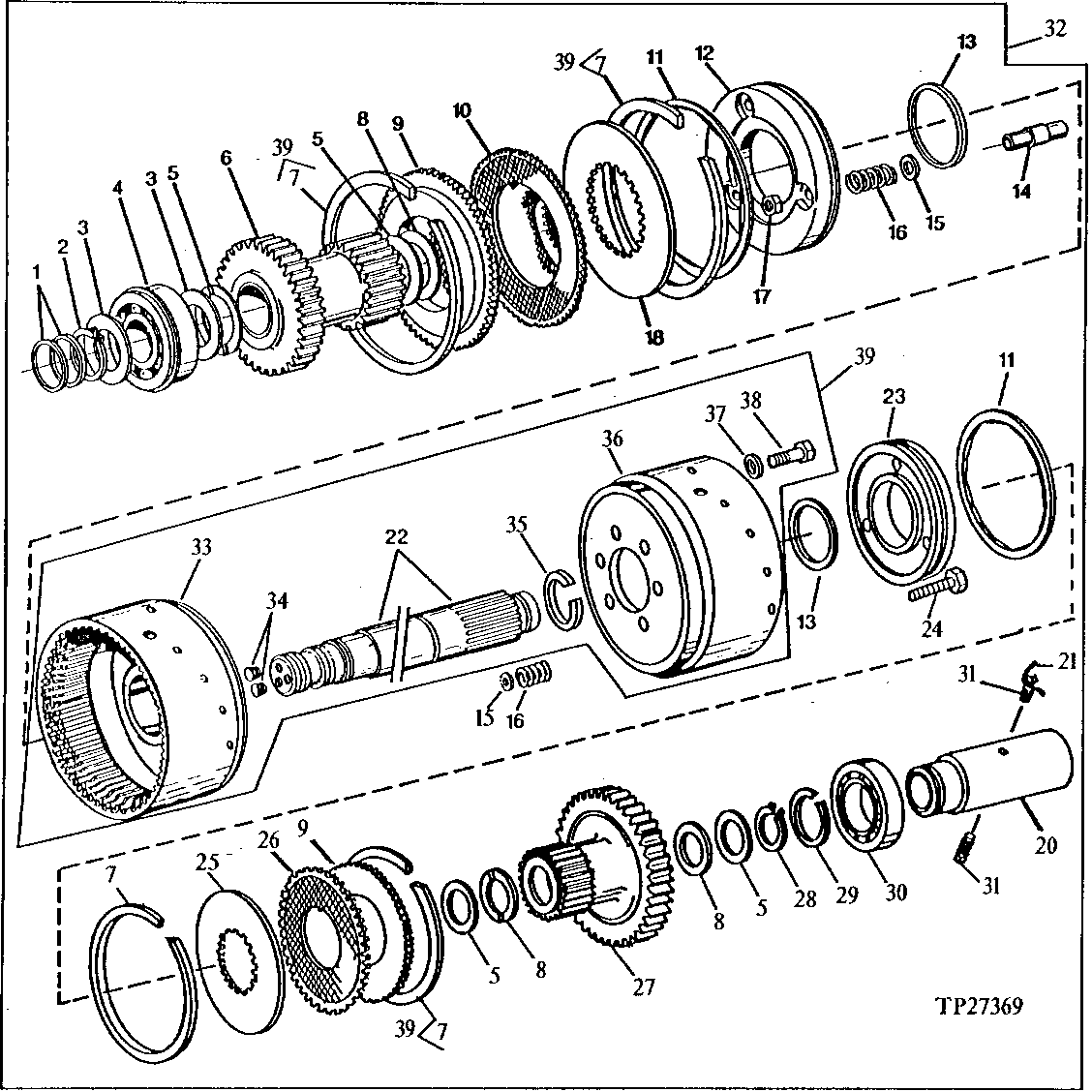

FIRST AND SECOND RANGE CLUTCH (SERIAL NO. -720212) [01C17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	SEALING RING (0.05") 1.3 MM OVERSIZE, (SUB (8) T79138) (SUB FOR AT78841)
1	T104813	3	RING	SEALING, (SUB FOR T44809, THIS APPLICATION)
2	T15509	1	Snap Ring	-
3	T44814	2	WASHER	-
4	JD9432	1	Ball Bearing	-
5	T44815	4	WASHER	THRUST
6	AT43731	1	GEAR	WITH BUSHING, (MARKED UXB7220) (38 TEETH)
7	T44806	4	RING	-
8	T44807	3	Thrust Bearing Race	-
9	T44803	2	PLATE	CLUTCH BACK
10	T44805	6	CLUTCH PLATE	-
11	AT43725	2	RING	SEALING WITH EXPANDER
12	T44802	1	PISTON	CLUTCH
13	T44810	2	RING	-
14	T44823	3	RETAINER	FIRST AND SECOND PISTON SPRING
15	T44816	6	WASHER	SPRING RETAINER
16	T44812	6	Spring	PISTON RETURN
17	T44799	3	NUT	3/8"
18	T44804	5	CLUTCH PLATE	-
19	15H558	2	Pipe Plug	1/8"
20	AT43733	1	COUPLING	(MARKED UXB9476)
21	T44829	1	WIRE	-
22	-	1	Part 23	(SUB AT104959)
23	T44822	1	PISTON	-
24	T44826	3	CAP SCREW	-
25	T44804	7	CLUTCH PLATE	-
26	T44805	8	CLUTCH PLATE	-
27	AT43732	1	GEAR	(48 TEETH) (MARKED UXB7224)
28	U11031	1	Snap Ring	-
29	T44824	1	Snap Ring	-
30	JD8537	1	Ball Bearing	-
31	T44825	2	SET SCREW	-
32	AT112958	1	AT112958	(SUB FOR AT43729)
33	T104815	1	DRUM	(SECOND RANGE)
34	15H558	2	Pipe Plug	1/8"
35	T104809	1	SNAP RING	-
36	T44820	1	DRUM	(FIRST RANGE)
37	12M7059	9	Disk Spring	10.200 X 20 X 0.800 MM
38	19H1648	9	Cap Screw	3/8" X 3/4"
39	AT104959	1	SHAFT	(ALSO ORDER T104812) FIRST AND SECOND WITH DRUMS (INSTALL INTERNAL SNAP RING IN FORWARD DRUM REAR PISTON)

FIRST AND SECOND RANGE CLUTCH (SERIAL NO. -720212) [01C17]
