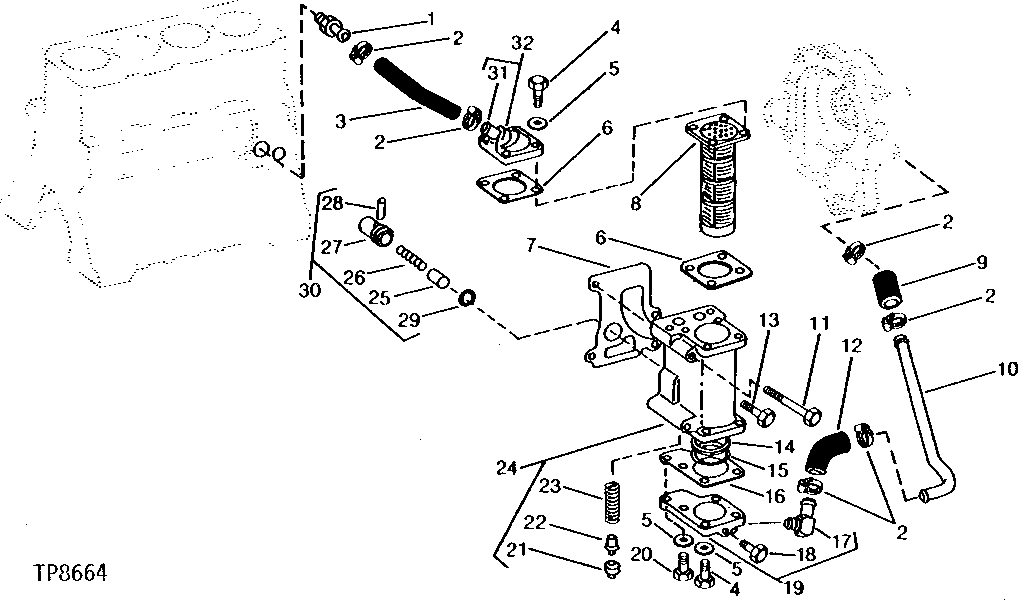

ENGINE OIL COOLER AND OIL COOLER LINES [01G06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R39503	1	Fitting	-
2	AR21839	6	Clamp	-
3	R54826	1	Hose	-
4	19H1849	8	Cap Screw	5/16" X 1-1/4"
4	19H2661	8	Cap Screw	5/16" X 1-3/8"
5	12H303	9	Lock Washer	5/16"
6	R56020	2	GASKET	-
7	R76243	1	GASKET	-
8	RE31089	1	Oil Cooler	(SUB FOR AR65812) (ALSO ORDER (4) 19H2661 CAP SCREWS)
9	-	1	Part 10	(MAKE FROM R57300 BULK MATERIAL, CUT TO LENGTH)
10	R54830	1	Tube	-
11	19H1925	2	Cap Screw	3/8" X 4-1/4"
12	R54829	1	HOSE	-
13	19H3065	2	Cap Screw	3/8" X 2"
14	R56814	1	O-Ring	INNER
15	R56815	1	O-Ring	OUTER
16	R54831	1	GASKET	-
17	AR26732	1	Elbow Fitting	-
18	R42852	1	Pipe Plug	-
19	AR63356	1	Cover	(MARKED R54828)
20	19H118	1	CAP SCREW	5/16" X 1"
21	-	1	Part 22	(SUB AR103165)
22	R73139	1	Flow Control Hyd. Valve	-
23	-	1	Part 24	(SUB AR103165)
24	AR103165	1	HOUSING	(MARKED R76241)
25	-	1	Part 26	(SUB AR63351)
26	R46625	1	SPRING	-
27	-	1	Part 28	(SUB AR63351)
28	34H184	1	Spring Pin	1/8" X 1-1/8"
29	R61871	1	O-Ring	-
30	AR63351	1	VALVE	-
31	R34985	1	Line	-
32	AR70464	1	Cover	(MARKED R58632)

ENGINE OIL COOLER AND OIL COOLER LINES [01G06]

Нет текстового описания
