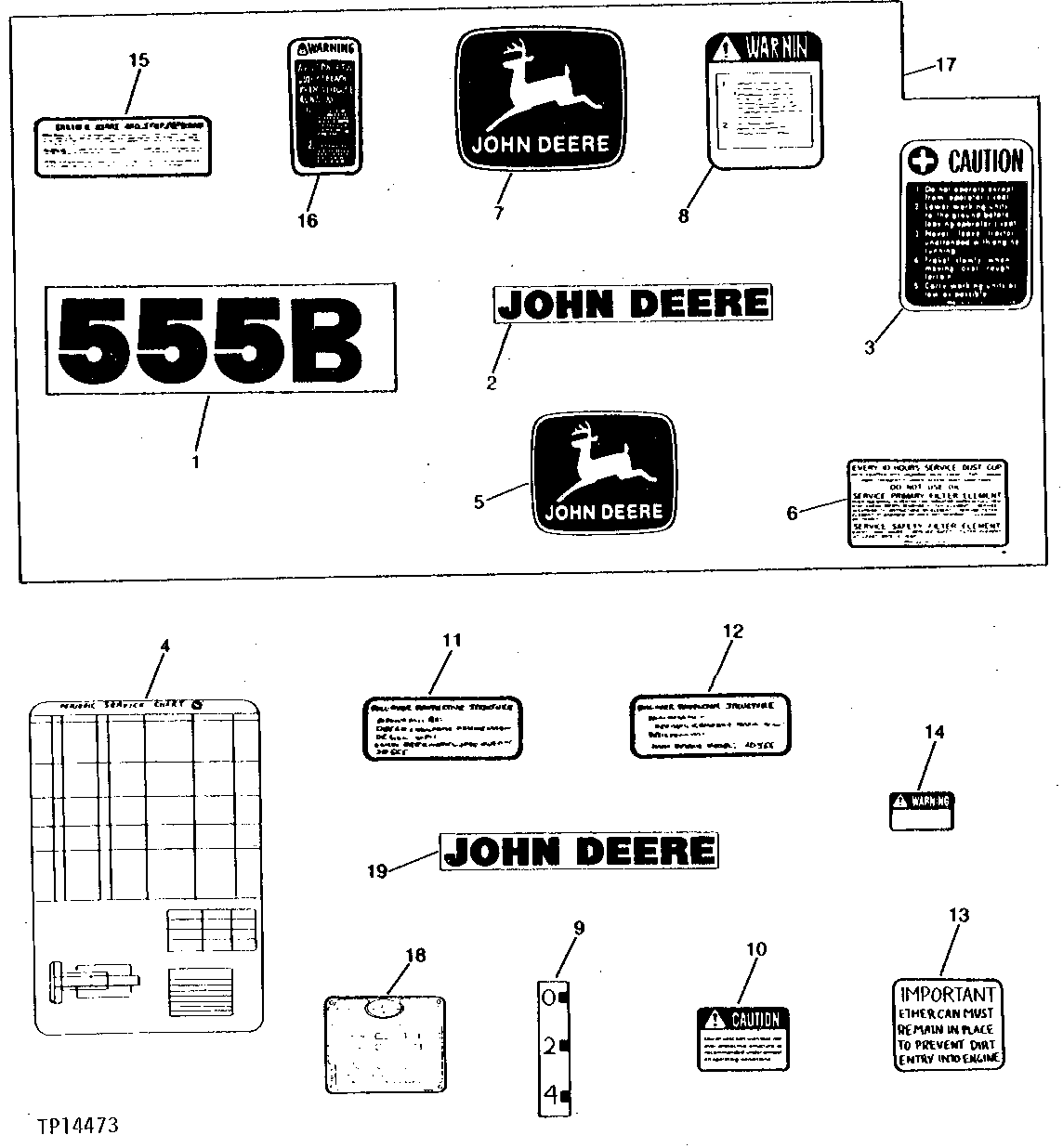

DECALS AND LABELS [01I18]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T81025	2	LABEL	(SERIES DESIGNATION)
2	JD5611	2	LABEL	(ON HYDRAULIC TANK)
3	T34954	1	SAFETY SIGN	(SAFETY)
4	T80328	1	LABEL	(PERIODIC MAINTENANCE)
4	T80333	1	LABEL	(PERIODIC MAINTENANCE) (FRENCH)
4	T80337	1	LABEL	(PERIODIC MAINTENANCE) (SPANISH)
5	JD5626	1	LABEL	(ON FUEL TANK)
6	T146605	1	Label	(SUB FOR T27580 AND T128278) (AIR CLEANER)
7	JD5620	1	Label	(ON INSTRUMENT VANDAL COVER)
8	T36158	1	SAFETY SIGN	(SAFETY)
9	T43671	1	LABEL	(CLAM INDICATOR)
10	T106833	1	LABEL	ROPS (PLACE ON ROPS FRONT RIGHT LEG TO FACE OPRATOR) (WITH BACKHOE)
10	T106835	1	LABEL	ROPS (ROPS RIGHT FRONT LEG FACING OPERATOR) (WITHOUT BACKHOE)
10	T106836	1	LABEL	ROPS (PLACE LABEL ABOVE LEFT SIDE CAB WINDOW)
10	T78176	1	SAFETY SIGN	(CAUTION)
10	T43705	1	SAFETY SIGN	(CAUTION)
11	T106833	1	LABEL	(OSHA ROPS) (SUB FOR T75785)
12	T106836	1	LABEL	(OSHA ROPS) (SUB FOR T75788)
13	T42170	1	Label	(INSTRUCTIONAL)
14	T146081	1	SERVICE SCHOOL APPVL SEAL	(WARNING) (SUB FOR T60909 AND T105883)
15	T35672	1	LABEL	(START AND STOP PROCEDURE)
16	T146102	1	Label	START SAFETY, (SUB FOR T75512, T84409 AND T134459)
17	AT61172	1	DECAL KIT	DECAL (FRENCH) (NOT ILLUSTRATED)
17	AT66590	1	DECAL KIT	DECAL (SPANISH) (NOT ILLUSTRATED)
18	T45289	1	IDENTIFICATION PLATE	BRITISH TWIN DISC
19	JD5640	2	LABEL	ON CAB
20	T127019	1	SAFETY SIGN	(SUB FOR R48628, THIS APPLICATION) (NOT ILLUSTRATED) (OIL FILLER CAP) (CENTER ON TOP OF OIL FILLER CAP)
21	T122078	1	LABEL	(NOT ILLUSTRATED) (LOADER CONTROL) (SUB FOR T69682)
