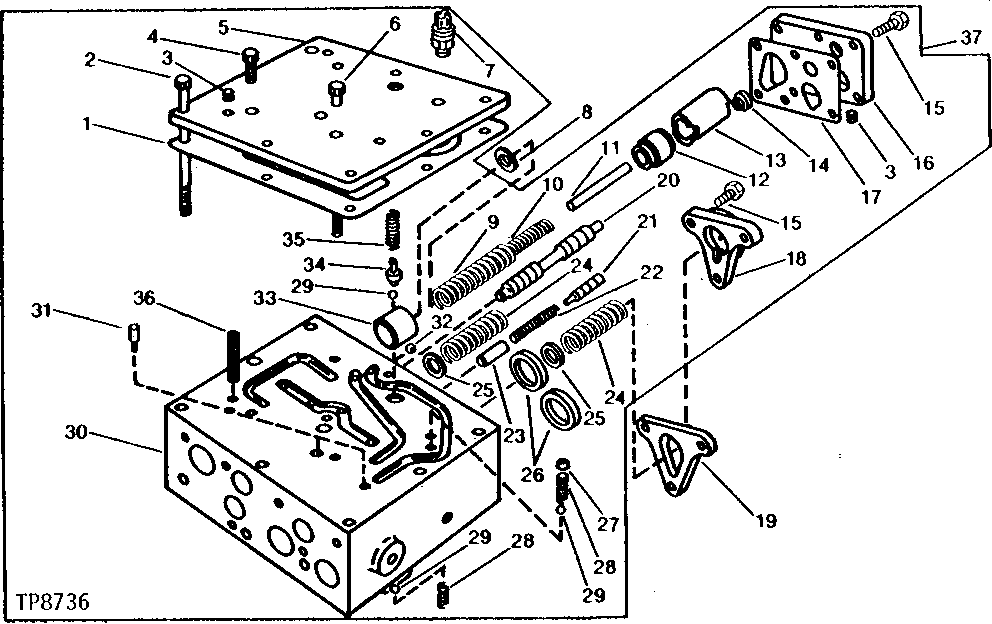

TRANSMISSION SELECTOR VALVE (HOUSING, SPOOLS, AND TOP COVER) [01D04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T44857	1	GASKET	-
2	19H2229	7	Cap Screw	3/8" X 5-1/4"
3	15H638	5	Pipe Plug	1/8"
4	19H2705	4	Cap Screw	5/16" X 1"
5	T44851	1	COVER	-
6	19H2345	2	Cap Screw	3/8" X 5-1/2"
7	AT80076	1	SWITCH	NEUTRAL START, (SUB FOR AH64759, THIS APPLICATION)
8	T44848	1	WASHER	-
9	T44877	1	SPRING	-
10	T44876	1	COMPRESSION SPRING	-
11	T44863	1	PIN	-
12	T44866	1	HYDRAULIC PRESSURE VALVE	-
13	T44849	1	BUSHING	-
14	AT43740	1	ORIFICE	-
15	19H3239	8	Cap Screw	3/8" X 1-1/4"
16	T44853	1	COVER	-
17	T44859	1	GASKET	-
18	T44854	1	COVER	-
19	T44860	1	GASKET	-
20	T44874	1	SPOOL	-
21	T44875	1	SPOOL	-
22	T44881	1	SPRING	-
23	T44870	1	STOP	-
24	T44879	2	COMPRESSION SPRING	-
25	T44884	2	Washer	-
26	AT43738	2	SEAL	-
27	T44885	1	CAP	-
28	T44878	2	SPRING	-
29	R42849	3	Ball	-
30	-	1	Part 30	(SUB AT43737)
31	T44865	1	PIN FASTENER	-
32	H23836	1	Ball	-
33	T44837	1	PISTON	-
34	T44864	1	PIN	-
35	T44882	1	SPRING	-
36	34H388	1	Spring Pin	5/32" X 2-1/4"
37	AT43737	1	VALVE	(ALSO INCLUDES ALL PARTS IN BOX ON PRECEDING PAGE)

TRANSMISSION SELECTOR VALVE (HOUSING, SPOOLS, AND TOP COVER) [01D04]
