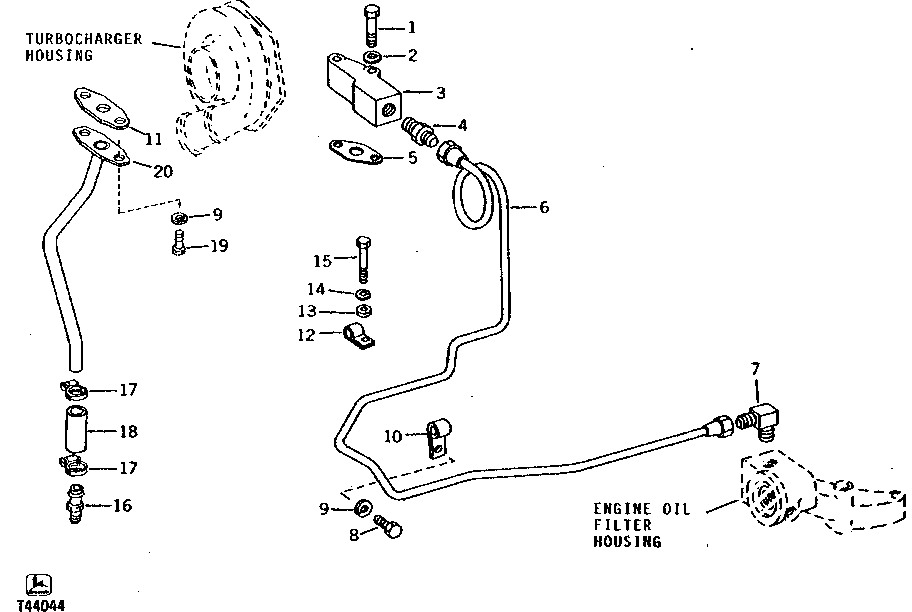

TURBOCHARGER OIL LINES (SERIAL NO. 222416- ) [01F18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3552	2	Cap Screw	5/16" X 1-1/2"
2	12H303	2	Lock Washer	5/16"
3	R43928	1	ADAPTER FITTING	-
4	R44795	1	Adapter Fitting	-
5	R97348	1	GASKET	(SUB FOR R43413)
6	AR70692	1	OIL LINE	-
7	AR26708	1	Fitting	90°
8	19H1648	1	Cap Screw	3/8" X 3/4"
9	12H304	1	Lock Washer	3/8", 3/8" X 3/4"
9	12H304	2	Lock Washer	3/8", (USE WITH RE19265)
10	T13814	1	Clamp	-
11	R43416	1	GASKET	-
12	M44204	1	Clamp	(SUB FOR T22645, THIS APPLICATION) (NO LONGER AVAILABLE)
13	L186T	1	Washer	-
14	12H302	1	Lock Washer	1/4"
15	19H2721	1	Cap Screw	1/4" X 1-1/2"
16	R39503	1	Fitting	-
17	AR21839	2	Clamp	-
18	-	1	Part 19	(SUB FOR U42686 AND R81210) (SUB FOR R76973, THIS APPLICATION) (MAKE FROM R120013 BULK MATERIAL, CUT TO LENGTH)
19	19H2284	2	Cap Screw	3/8" X 7/8", (USE WITH RE19265)
19	R124277	2	Cap Screw	(USE WITH RE62097)
20	RE19265	1	Oil Line	(SUB RE62097 AND (2) R124277) (SUB FOR AR71578)

TURBOCHARGER OIL LINES (SERIAL NO. 222416- ) [01F18]
