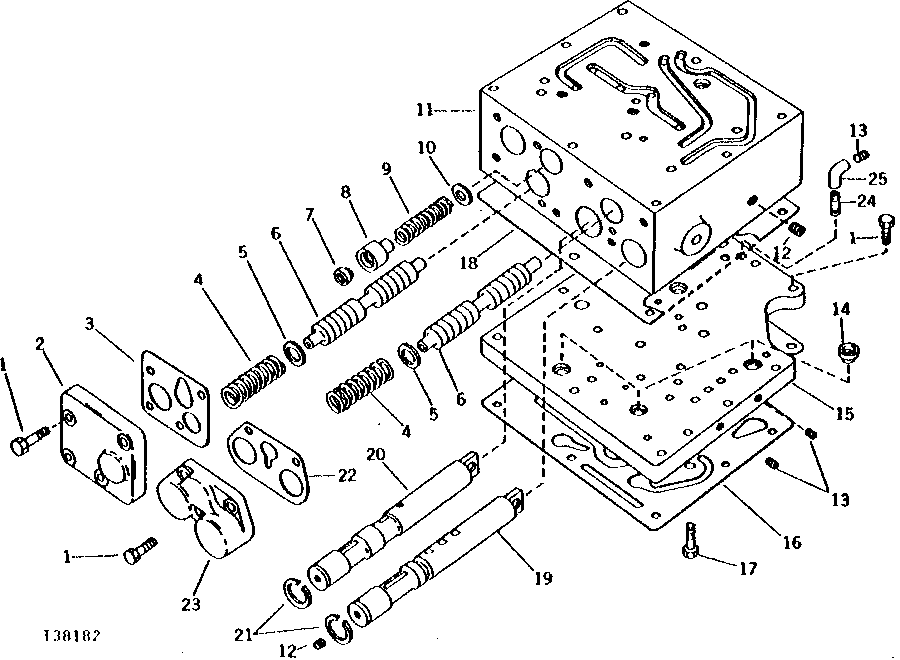

TRANSMISSION SELECTOR VALVE (SANDWICH PLATE, SPOOLS, MODULATING, AND SELECTOR COVERS) [01D10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3239	10	Cap Screw	(A) 3/8" X 1-1/4"
2	T44855	1	COVER	(A)
3	T44861	1	GASKET	(A)
4	T44879	2	COMPRESSION SPRING	(A)
5	T44884	2	Washer	(A)
6	T44873	2	SPOOL	(A)
7	AT52233	1	ORIFICE	(A)
8	T44862	1	STOP	(A)
9	T44880	1	Compression Spring	(A)
10	T44883	1	WASHER	(A)
11	-	1	Part 11	(A) (SUB AT43737)
12	15H558	2	Pipe Plug	(A) 1/8"
13	15H638	3	Pipe Plug	(A) 1/8"
14	AT43739	4	ORIFICE	(A)
15	T44868	1	PLATE	(A)
16	T44912	1	GASKET	-
17	19H3053	3	Screw	(A) 5/16" X 1"
18	T70140	1	GASKET	(SUB FOR T44856)
19	T44871	1	SPOOL	(A)
20	T44872	1	SPOOL	(A)
21	T44869	2	SNAP RING	(A)
22	T44858	1	GASKET	(A)
23	T44852	1	COVER	(A)
24	29H25	1	Threaded Nipple	1/8" X 3"
25	15H155	1	ELBOW FITTING	1/8", 90°
..	AT43737	1	VALVE	-
