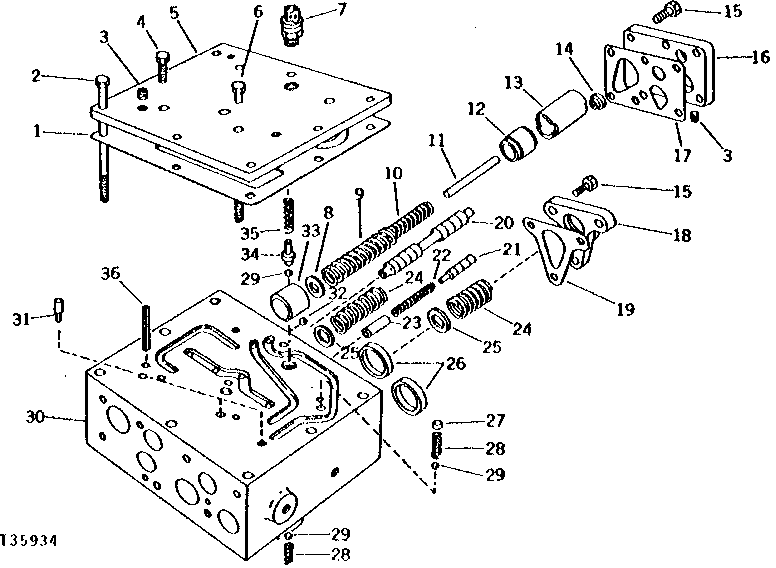

TRANSMISSION SELECTOR VALVE (HOUSING, SPOOLS, AND TOP COVER) [01D09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T44857	1	GASKET	(A)
2	19H2229	7	Cap Screw	3/8" X 5-1/4"
3	15H638	5	Pipe Plug	(A) 1/8"
4	19H2705	4	Cap Screw	(A) 5/16" X 1"
5	T44851	1	COVER	(A)
6	19H2345	2	Cap Screw	3/8" X 5-1/2"
7	AH64759	1	SWITCH	(A)
8	T44848	1	WASHER	-
9	T44877	1	SPRING	(A)
10	T44876	1	COMPRESSION SPRING	(A)
11	T44863	1	PIN	(A)
12	T44866	1	HYDRAULIC PRESSURE VALVE	(A)
13	T44849	1	BUSHING	(A)
14	AT43740	1	ORIFICE	(A)
15	19H3239	8	Cap Screw	3/8" X 1-1/4"
16	T44853	1	COVER	(A)
17	T44859	1	GASKET	(A)
18	T44854	1	COVER	(A)
19	T44860	1	GASKET	-
20	T44874	1	SPOOL	(A)
21	T44875	1	SPOOL	(A)
22	T44881	1	SPRING	(A)
23	T44870	1	STOP	(A)
24	T44879	2	COMPRESSION SPRING	(A)
25	T44884	2	Washer	(A)
26	AT43738	2	SEAL	(A)
27	T44885	1	CAP	(A)
28	T44878	2	SPRING	(A)
29	R42849	3	Ball	(A)
30	-	1	Part 30	(A) (SUB AT43737)
31	T44865	2	PIN FASTENER	(A)
32	H23836	1	Ball	(A)
33	T44837	1	PISTON	(A)
34	T44864	1	PIN	(A)
35	T44882	1	SPRING	(A)
36	34H388	1	Spring Pin	(A) 5/32" X 2-1/4"
..	AT43737	1	VALVE	-

TRANSMISSION SELECTOR VALVE (HOUSING, SPOOLS, AND TOP COVER) [01D09]

Нет текстового описания
