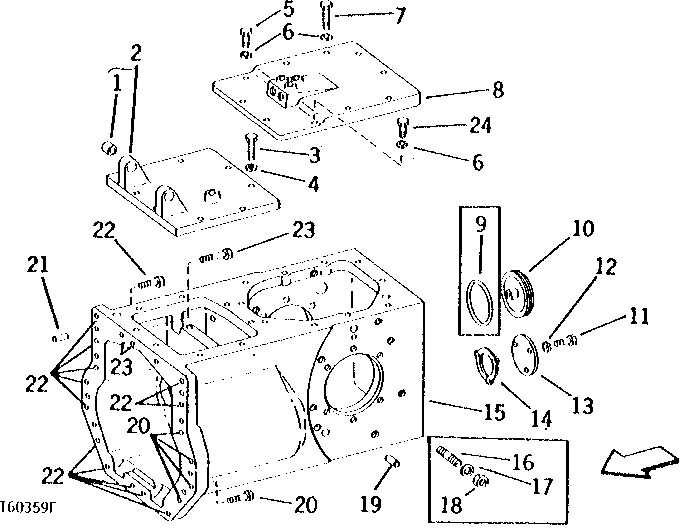

TRANSMISSION CASE AND COVERS [01C16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T42687	2	BUSHING	-
2	AT40189	1	COVER	TOP FRONT, (SUB T41186 AND (2) T42687)
3	19H1805	8	CAP SCREW	1/2" X 2-1/4"
4	12H301	8	Lock Washer	1/2"
5	19H3385	1	Cap Screw	1/2" X 1-1/8"
6	12H304	10	Lock Washer	3/8"
7	19H1726	6	Cap Screw	3/8" X 2-1/4"
8	T41188	1	COVER	TOP REAR
9	T20758	1	O-Ring	-
10	T20757	1	PLUG	-
11	19H2664	3	Cap Screw	5/16" X 3/4", (WITHOUT WINCH DRIVE)
12	12H303	3	Lock Washer	5/16", (WITHOUT WINCH DRIVE)
13	T15070	1	COVER	(WITHOUT WINCH DRIVE)
14	T12405	1	GASKET	(WITHOUT WINCH DRIVE)
15	T45617	1	HOUSING	-
16	T20756	6	STUD	-
17	T10510	6	Washer	(USE IF AVAILABLE)
17	R78019	6	Washer	(SUB FOR T10510)
18	14H794	6	Nut	3/4"
19	T18621	4	DOWEL PIN	-
20	19H2735	4	Cap Screw	1/2" X 2"
21	T21655	4	PIN	(SUB FOR T45616)
22	19H2473	12	Cap Screw	1/2" X 1-3/4"
22	TY9371	1	Sealant	(ON ALL ATTACHING HARDWARE SPIRAL BEVEL HOUSING TO POWER SHIFT HOUSING)
23	19H2644	3	Cap Screw	1/2" X 2-1/2"
24	19H2633	3	Cap Screw	3/8" X 1-1/2", (FRONT AND L.H. SIDE)
..	T43514	1	Gasket	(SUB FOR AT26340) 56 G (2 OZ.) BOTTLE
