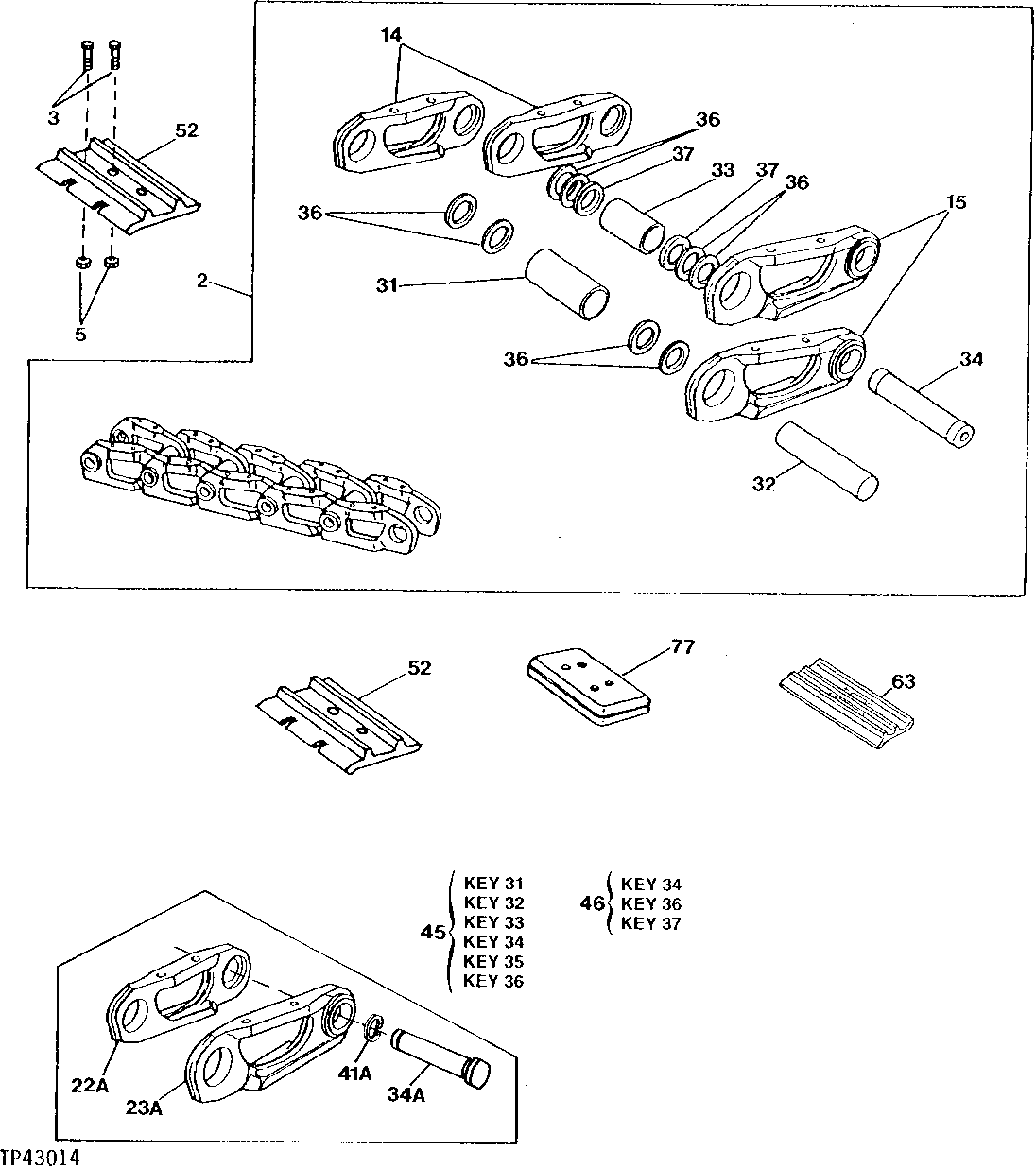

SEALED CHAIN, 1/2" WITH MASTER PIN AND NON-STRUTTED LINKS (37L) [01B06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	(N/A, ORDER 9/16" CHAIN WITH SHOES)
2	-	1	Part 2	(37L) (SEE SEC. 0132, PAGE 5, FOR 1/2" REPLACEMENT CHAIN WITHOUT SHOES)
3	T130032	148	BOLT	1/2" X 1.654", (USE WITH T129173, NUT) (SUB FOR T40535)
3	19H3012	148	Cap Screw	1/2" X 2-3/8", (USE WITH RUBBER SHOE)
5	T129173	148	NUT	1/2", (USE WITH T130032, SCREW) (SUB FOR T14913)
14	T42827	36	NON-STRUTTED LINK-LH	-
14	T42827	37	NON-STRUTTED LINK-LH	-
15	T42832	36	NON-STRUTTED LINK-RH	-
15	T42832	37	NON-STRUTTED LINK-RH	-
31	T52362	36	BUSHING	(SUB FOR T42836)
32	T42838	36	TRACK PIN	-
33	T42837	1	MASTER TRACK BUSHING	-
34	-	1	Part 15	(SUB AT56694 MASTER PIN KIT)
36	T42828	148	SPRING WASHER	-
37	T60841	2	WASHER	(SUB FOR T49874)
45	AT56690	1	PIN & BUSHING KIT	(INCLUDES (144) T42828, T42837, (35) T52362, (35) T42838, T53665 AND (2) T60841) (ALSO ORDER T52362, (4) T42828 AND T42838) (SUB FOR AT56692)
46	AT56694	1	PIN, SEAL & BUSHING KIT	(INCLUDES (4) T42828, T53665 AND (2) T60841)
46	AT58897	1	PIN, SEAL & BUSHING KIT	(OVERSIZE MASTER PIN) (SUB (4) T42828, (2) T60841 AND T61368)
52	T106960	37	DOUBLE BAR SHOE	355MM (14")
63	T75588	37	OPEN CENTER 3 BAR SHOE	356MM (14")
77	-	37	Part 26	330MM (13"), AT125940 NO LONGER AVAILABLE, ORDER DIRECTLY FROM SUPERIOR TIRE AND RUBBER, WARREN, PENNSYLVANIA 16365, PHONE 800-289-1456, (SUB FOR AT22880)
22A	T42829	1	NON-STRUTTED LINK-LH	-
23A	T42831	1	MASTER TRACK LINK-RH	-
34A	T42833	1	PIN FASTENER	HEADED MASTER, (SUB T55237)
34A	T55237	1	MASTER TRACK PIN	HEADED
41A	B1402R	1	SNAP RING	(SUB F215R)

SEALED CHAIN, 1/2" WITH MASTER PIN AND NON-STRUTTED LINKS (37L) [01B06]
