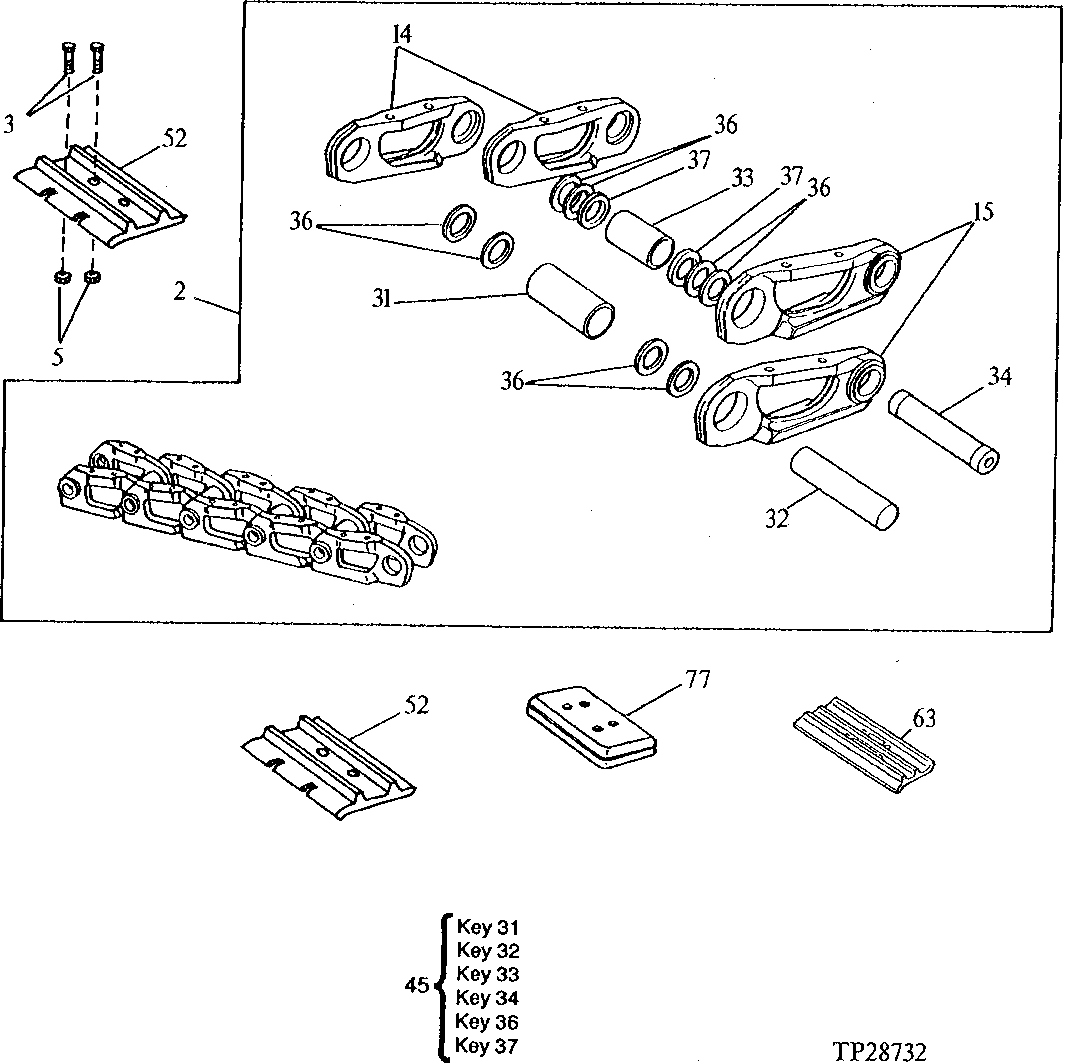

REPLACEMENT SEALED CHAIN, 1/2" WITH MASTER PIN AND NON-STRUTTEDLINKS (37) [01B08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	(N/A, ORDER 9/16" CHAIN WITH SHOES)
2	AT113053	1	TRACK CHAIN W/O SHOES	(37L) (USE WITH SPROCKET T153045 OR T175962) (SUB FOR AT74164, AT113073 AND AT148565)
3	T74183	148	BOLT	1/2" X 1.732"
3	19H3012	148	Cap Screw	1/2" X 2-3/8", (USE WITH RUBBER SHOE)
5	T74184	148	NUT	1/2"
14	T112081	37	NON-STRUTTED LINK-LH	(SUB FOR T75437)
15	T112080	37	NON-STRUTTED LINK-RH	(SUB FOR T75436)
31	T105116	36	Bushing	-
32	T74178	36	Track Pin	-
33	T74177	1	Master Track Bushing	-
34	T74185	1	Master Track Pin	-
36	T105117	148	Spring Washer	-
37	T105131	2	Washer	(SUB FOR T74186)
45	AT104530	1	Pin & Bushing Kit	(SUB FOR AT75611) (INCLUDES (35) T105116, (144) T105117, (2) T105131, T74177, (35) T74178 AND T74185) (FOR 37L, ALSO ORDER (1) T105116, (1) T74178 AND (4) T105117)
52	T106960	37	DOUBLE BAR SHOE	355MM (14")
63	T75588	37	OPEN CENTER 3 BAR SHOE	356MM (14")
77	-	37	Part 17	330MM (13"), AT125940 NO LONGER AVAILABLE, ORDER DIRECTLY FROM SUPERIOR TIRE AND RUBBER, WARREN, PENNSYLVANIA 16365, PHONE 800-289-1456, (SUB FOR AT22880)

REPLACEMENT SEALED CHAIN, 1/2" WITH MASTER PIN AND NON-STRUTTEDLINKS (37) [01B08]
