Открытый узел

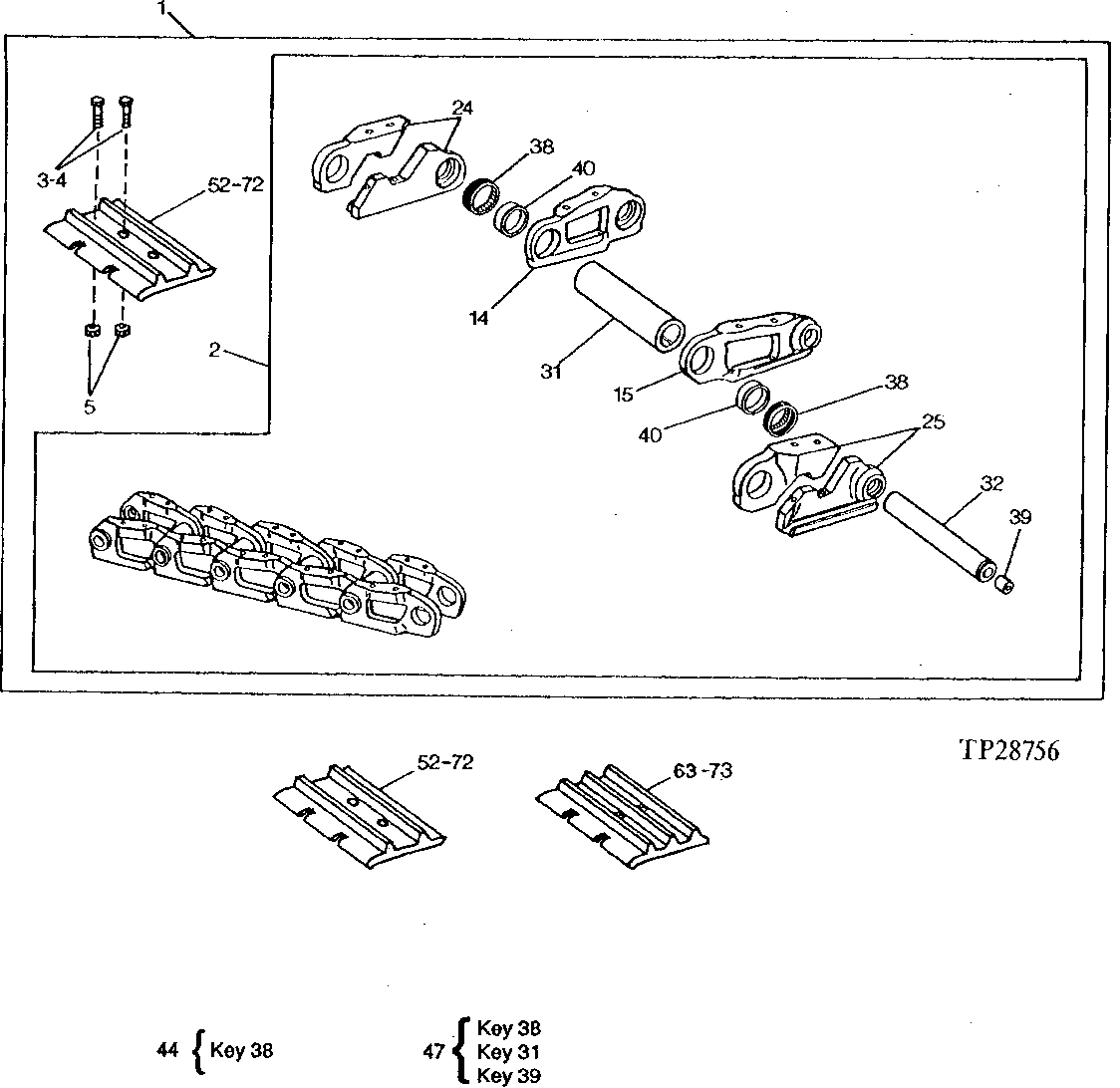

REPLACEMENT LUBRICATED CHAIN 9/16", WITH NON-STRUTTED LINKS STD (37L) [01B16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	( AT160828 NO LONGER AVAILABLE) (SUB AT167422) 355MM (14"), (37L)(BUSHING O.D. 53.8 MM)(USE WITH SPROCKET T145700 OR T175960) (SUB FOR AT135377)
2	-	1	Part 2	( AT160824 NO LONGER AVAILABLE) (SUB AT167344) (37L)(BUSHING O.D. 53.8 MM)(USE WITH SPROCKET T145700 OR T175960) (SUB FOR AT135357)
3	T126931	144	Track Bolt	-
4	T126771	4	MASTER TRACK BOLT	-
5	T126932	144	Nut	-
14	T126959	36	Non-Strutted LINK-LH	-
15	T126958	36	Non-Strutted LINK-RH	-
24	-	1	Part 8	( AT135354 NO LONGER AVAILABLE) (SUB AT167329) (FOR FIRST TIME REPLACEMENT ALSO ORDER (2) T151272, (2) T151271 AND (1) REGULAR SHOE FOR USE AS MASTER) (ALSO ORDER AT167327)
25	-	1	Part 9	( AT135355 NO LONGER AVAILABLE) (SUB AT167327) (FOR FIRST TIME REPLACEMENT ALSO ORDER (2) T151272, (2) T151271 AND (1) REGULAR SHOE FOR USE AS MASTER) (ALSO ORDER AT167329)
31	T112245	37	BUSHING	(51 MM O.D.)(USE WITH SPROCKET T153045 OR, T175962)
31	T135646	37	Bushing	(53.8 MM O.D.)(USE WITH SPROCKET T145700 OR, T175960)
31	T203866	37	Track Bushing	(USE WITH SPROCKET T145700 OR T175960) (EXTENDED WEAR)
32	T112247	37	Track Pin	-
38	AT113118	37	Seal	(PACKAGE OF 2)
39	T151270	37	Plug	(SUB FOR T112246) (ALSO ORDER T149248)
39	T149248	37	Plug	(INSERT IN MIDDLE OF PLUG T151270)
40	T112252	74	Washer	-
44	AT124014	1	SEAL KIT	CONTAINS 72 SEALS, ALSO ORDER (1) AT113118 PACKED 2 PER PACKAGE
47	AT113119	1	PLUG AND SEAL KIT BUSHING	(FOR BUSHING O.D. OF 51 MM) CONTAINS 72 SEALS, 36 BUSHINGS AND 36 PLUGS, ALSO ORDER (1) T112245, (1) T151270 (1) T149248 AND (1) AT113118 PACKED 2 PER PACKAGE
47	AT160608	1	PLUG AND SEAL KIT BUSHING	(FOR BUSHING O.D. OF 53.8 MM) CONTAINS 72 SEALS, 36 BUSHINGS AND 36 PLUGS, ALSO ORDER (1) T135646, (1) T112246 AND (1) AT113118 PACKED 2 PER PACKAGE
52	T163464	36	DOUBLE BAR SHOE	(SUB FOR T127053) 355MM (14")
63	T127514	36	OPEN CENTER 3 BAR SHOE	355MM (14")
63	T127516	36	OPEN CENTER 3 BAR SHOE	533MM (21")
72	T127054	1	MASTER DOUBLE BAR SHOE	355MM (14")
72	T127056	1	MASTER DOUBLE BAR SHOE	533MM (21")
73	T126962	1	MASTER TRIPLE BAR SHOE	355MM (14")
73	T126961	1	MASTER TRIPLE BAR SHOE	533MM (21")
-	T127055	36	DOUBLE BAR SHOE	533MM (21")

REPLACEMENT LUBRICATED CHAIN 9/16", WITH NON-STRUTTED LINKS STD (37L) [01B16]

Нет текстового описания
