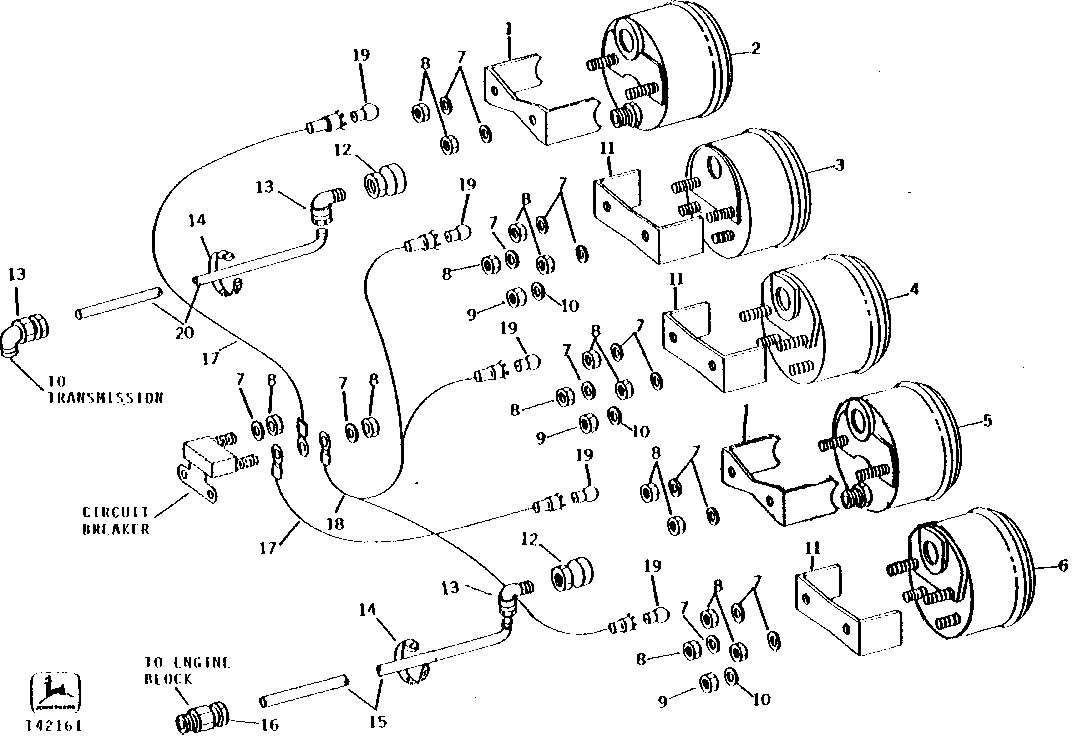

PRESSURE, TEMPERATURE AND VOLTMETER GAUGES WITH LIGHT HARNESS [01J20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T38594	2	BRACKET	-
2	AT185970	1	GAUGE	(SUB FOR AT39827 AND AT47133)
3	AT42587	1	PYROMETER	(SUB AT57601 AND AT57602)
3	AT57601	1	TEMPERATURE GAUGE	TRANSMISSION OIL TEMPERATURE
4	AT39727	1	VOLTMETER	(SUB AT104767 AND T118593 BRACKET. REPLACE HARNESS EYELETS WITH R65595 AND U46370)
5	AT37411	1	PRESSURE GAUGE	ENGINE OIL PRESSURE
6	-	1	Part 7	ENGINE TEMPERATURE (STEWART-WARNER) (SUB AT149018) (SUB FOR AT37410) ( AT61467 USE IF AVAILABLE)
6	AT104755	1	TEMPERATURE GAUGE	(K) ENGINE TEMPERATURE (VDO)
7	12H295	15	Lock Washer	0.190"
8	14H631	15	Nut	0.190"
9	14H605	3	Nut	0.164"
10	12M7084	3	Lock Washer	4.300 MM
11	T39395	3	BRACKET	-
12	15H73	2	Coupling	1/8"
13	AT62178	3	ELBOW FITTING	90°, 3/16" X 1/8", (SUB FOR AM234T, THIS APPLICATION)
14	R44302	2	Tie Band	-
15	T41087	1	HOSE	5 MM X 914 MM (3/16" X 36")
16	AT62083	1	FITTING	(SUB FOR AM235T, THIS APPLICATION)
17	AT39824	2	WIRING LEAD	-
18	AT39823	1	WIRING HARNESS	-
19	T40990	5	BULB	-
20	T60804	1	Tube	5 MM X 1 626 MM (3/16" X 64") (SUB FOR T55838, THIS APPLICATION)

PRESSURE, TEMPERATURE AND VOLTMETER GAUGES WITH LIGHT HARNESS [01J20]

Нет текстового описания
