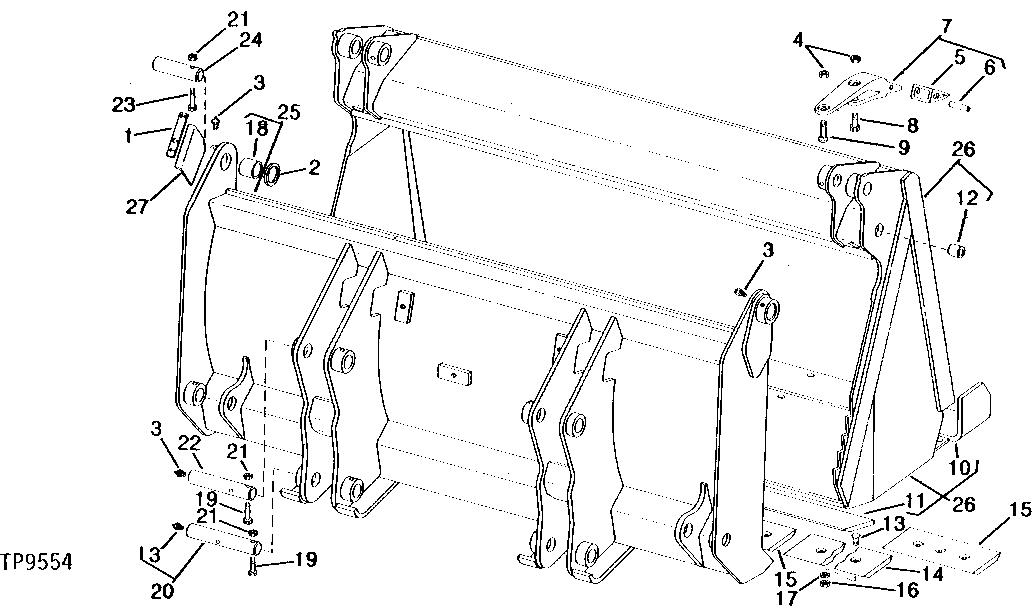

MULTI-PURPOSE BUCKET (1.00 M3 (1-1/4 CU. YARD) [02D16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T43671	1	LABEL	-
2	24H1595	2	Washer	2-1/16" X 3" X 0.075"
3	T162396	6	Lubrication Fitting	(SUB FOR JD7759 OR JD7798)
4	U14555	14	Lock Nut	-
5	T29887	7	TOOTH	(SUB FOR U16086)
6	TP160	7	Pin	(SUB FOR T25101)
7	AU13811	7	TOOTH	-
8	10H1157	7	BOLT	5/8" X 3-1/4"
9	19H1833	3	Cap Screw	5/8" X 1-1/4"
9	19H2706	4	Cap Screw	5/8" X 2"
10	U16966	1	DURA-MAX TM CUTTING EDGE	-
10	T84182	1	DURA-MAX TM CUTTING EDGE	AUXILIARY - FOR USE WITH U16966, (USE WITH (7) T25879 AND (7) 10H1058)
11	T43485	1	CUTTING EDGE	-
12	U10481	2	BUSHING	-
13	10H1040	12	Bolt	5/8" X 2", (SUB FOR 09H1587, THIS APPLICATION)
14	U11711	1	CUTTING EDGE	-
15	U11708	2	END BIT	-
16	14H1039	12	Nut	5/8"
17	12H294	12	Lock Washer	5/8"
18	U17220	2	BUSHING	-
19	19H1868	4	CAP SCREW	1/2" X 3-3/4"
20	AU14012	2	PIN FASTENER	WITH GREASE FITTING
21	BP12214	6	Lock Nut	(SUB FOR U12622)
22	AT86423	2	PIN FASTENER	(WITH GREASE FITTING) (SUB FOR T32601)
23	19H3586	2	Cap Screw	1/2" X 4-1/4"
24	T43502	1	PIN FASTENER	-
25	-	1	Part 27	( AT42376 NO LONGER AVAILABLE, SUB AT76845, AT76848 AND T43494)
26	AT42373	1	CLAMSHELL BUCKET	(SUB AT58630)
26	AT53666	1	CLAMSHELL BUCKET	(SUB AT58630)
26	AT58630	1	MULTI-PURPOSE BUCKET	-
27	T43494	1	BUCKET LEVEL INDICATOR	-
..	-	1	Part 32	(AT82986 NO LONGER AVAILABLE)

MULTI-PURPOSE BUCKET (1.00 M3 (1-1/4 CU. YARD) [02D16]
