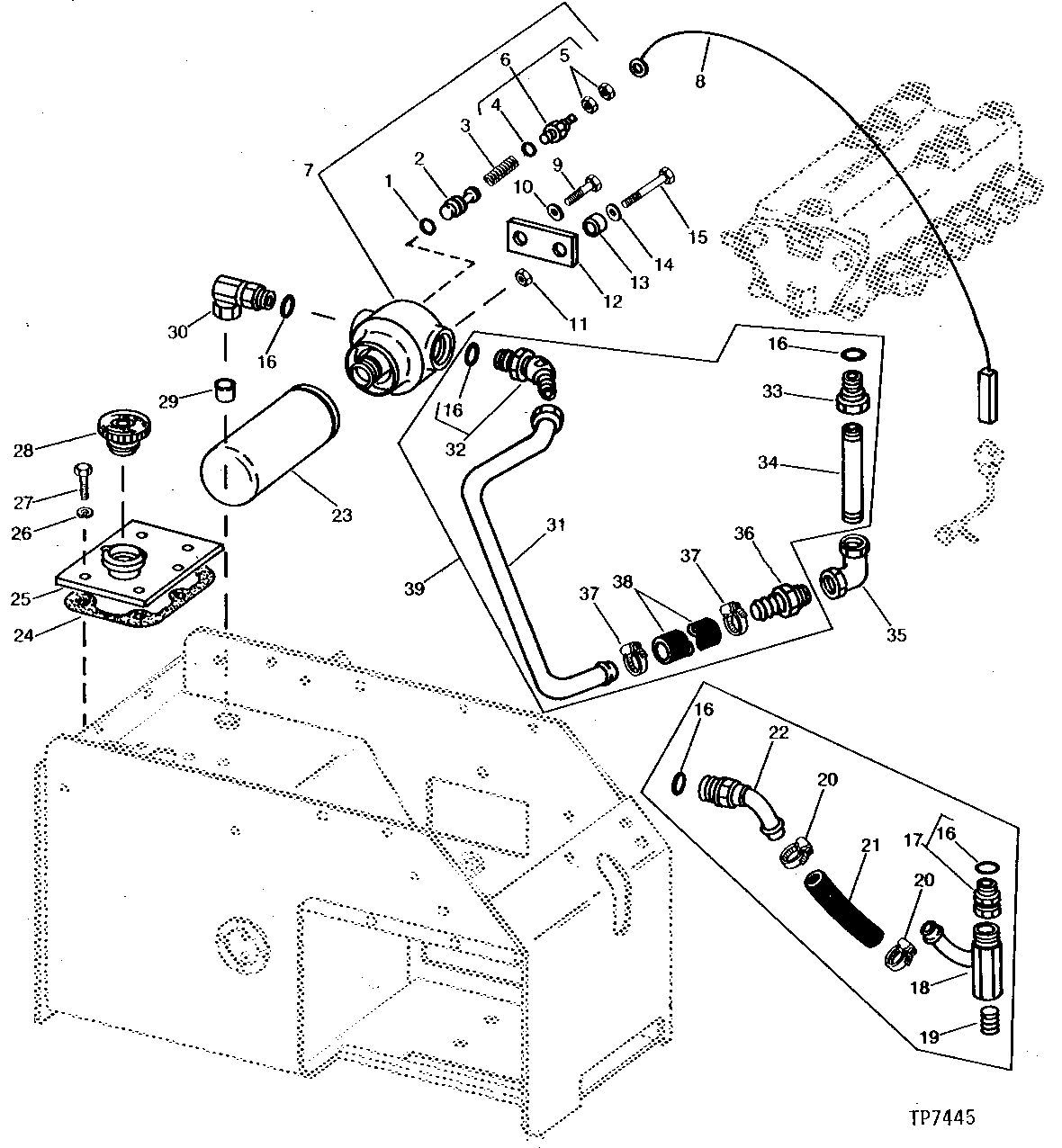

HYDRAULIC RETURN FILTER AND LINES (SERIAL NO. 354140- ) [02C12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	P46051	1	O-Ring	-
2	T71326	1	PISTON	(SUB FOR T63942, THIS APPLICATION)
3	T158876	1	COMPRESSION SPRING	(SUB FOR T63943, THIS APPLICATION) (SUB FOR T73705)
4	R26375	1	O-Ring	-
5	14H778	2	Nut	0.190"
6	AT60644	1	Sender	-
7	AT63421	1	BASE	(SUB AT70977)
7	AT70977	1	BASE	-
8	AT63422	1	WIRING LEAD	-
9	19H2127	1	Cap Screw	5/16" X 7/8"
10	24H1136	1	Washer	11/32" X 11/16" X 0.065"
11	14H812	1	NUT	3/8"
12	AT22862	1	BRACKET	-
13	M40463	1	Washer	-
14	24H1305	1	Washer	13/32" X 13/16" X 0.065"
15	19H3483	1	Cap Screw	3/8" X 1-1/8"
16	R29936	3	O-Ring	-
17	AU13375	1	FITTING	-
18	AT65819	1	FITTING	-
19	15H620	1	PIPE PLUG	-
20	AR21839	2	Clamp	-
21	-	1	Part 22	149 MM LONG (3/4" X 5-7/8") (MAKE FROM T61939) (SUB FOR T66870, THIS APPLICATION)
22	AT65818	1	Fitting	-
23	AT113114	1	FILTER	(SUB FOR AT63557 AND AT73307) (SUB FOR AT69852, THIS APPLICATION)
24	U17022	1	GASKET	IF AVAILABLE
24	T84537	1	GASKET	(SUB FOR U17022)
25	AT63423	1	PLATE	-
26	12H304	6	Lock Washer	3/8"
27	19H2284	6	Cap Screw	3/8" X 7/8"
28	AU14021	1	CAP	-
29	T71051	1	TUBE	-
30	AU42452	1	ADAPTER FITTING	90°
31	AT73389	1	OIL LINE	-
32	AU43288	1	ELBOW FITTING	45°
33	AE35246	1	ADAPTER	-
34	T75432	1	THREADED NIPPLE	170 MM LONG (1" X 6-5/8")
35	-	1	Part 37	(15H100 NO LONGER AVAILABLE) 90°
36	N150084	1	HOSE FITTING	-
37	AR21839	2	Clamp	-
38	T37797	1	HOSE	137 MM LONG (1" X 5-3/8")
39	AT73390	1	MOUNTING PARTS	(AT73390 NO LONGER AVAILABLE)

HYDRAULIC RETURN FILTER AND LINES (SERIAL NO. 354140- ) [02C12]
