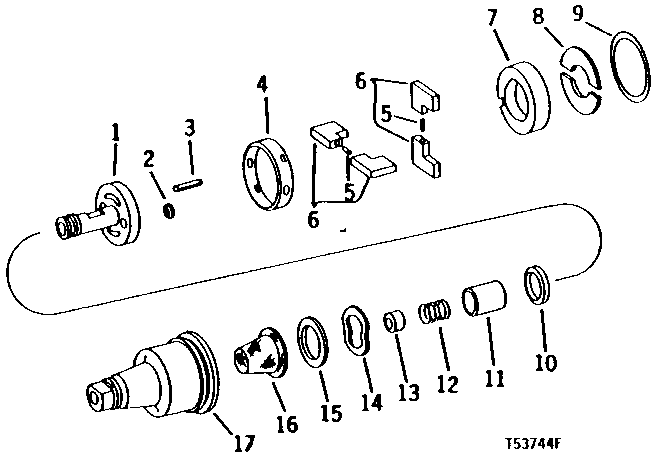

FUEL INJECTION PUMP TRANSFER GROUP (ROOSA-MASTER NOS. DM4427MD2703 AND DM4427MD2868) [01F02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR61995	1	REGULATOR	-
2	R54231	1	WASHER	(A)
3	R54226	1	SPRING PIN	-
4	R54257	1	Ring	(SUB AR91023, THIS APPLICATION)
4	R61122	1	BACK-UP RING	-
5	R34630	2	SPRING	TRANSFER PUMP BLADE
6	AR73828	1	KIT	BLADE TRANSFER PUMP WITH SPRINGS (STANDARD) (SUB FOR R45045) (ALSO ORDER AR73829)
6	AR73829	1	KIT	BLADE TRANSFER PUMP WITH SPRINGS (OVERSIZE)
7	R54244	1	LINING	-
8	R54248	2	Retainer	(SUB AR91023, THIS APPLICATION)
8	R61121	2	RETAINER	-
9	T26236	1	O-RING	(A) (SUB AR91023, THIS APPLICATION)
9	R61124	1	O-RING	(A)
10	R54222	1	WASHER	(A) INLET FILTER SCREEN
11	R54253	1	PISTON	-
12	R54237	1	SPRING	-
13	R34623	1	PLUG	-
14	R54234	1	Lock Washer	(SUB AR91023, THIS APPLICATION) TRANSFER PUMP
14	R61119	1	SNAP RING	-
15	R54246	1	Washer	(SUB AR91023, THIS APPLICATION) FILTER SCREEN
15	R61120	1	WASHER	-
16	R54223	1	Strainer	(SUB AR91023, THIS APPLICATION)
16	R61118	1	FUEL FILTER	-
17	R57599	1	Cap	(SUB AR91023, THIS APPLICATION)
17	R61123	1	CAP	-
..	AR63029	1	GASKET KIT	GASKET OVERHAUL

FUEL INJECTION PUMP TRANSFER GROUP (ROOSA-MASTER NOS. DM4427MD2703 AND DM4427MD2868) [01F02]

Нет текстового описания
