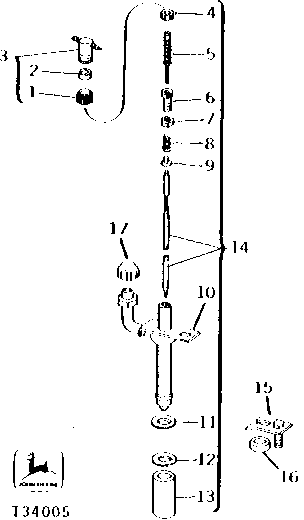

FUEL INJECTION NOZZLE (ENGINE SERIAL NO. -588609) [01F10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T29540	1	FITTING	(SUB R79604)
2	T29539	1	WASHER	(SUB R79605)
3	AT27622	1	CAP	-
3	AR85618	1	CAP	(SUB R79604, R79605 AND R79606)
4	-	1	Part 5	( R47733 NO LONGER AVAILABLE)
5	-	1	Part 6	( R47732 NO LONGER AVAILABLE)
6	-	1	Part 7	( R47734 NO LONGER AVAILABLE)
7	-	1	Part 8	( R46675 NO LONGER AVAILABLE)
8	-	1	Part 9	( R47731 NO LONGER AVAILABLE)
9	-	1	Part 10	( R39886 NO LONGER AVAILABLE)
10	T26870	1	CLAMP	(SUB R67779)
10	R67779	1	CLAMP	-
11	R34764	1	WASHER	(K1) (SUB RE13887, THIS APPLICATION) (SUB RE32011)
11	R60746	1	WASHER	(K) (USE WHEN RE13887 HAS BEEN INSTALLED)
12	R48000	1	Seal	-
13	T24472	1	Cap	-
14	AR68364	1	NOZZLE	(ROOSA-MASTER NO. 20291) (SUB RE37503 AND R92351)
14	AR88240	1	NOZZLE	(ROOSA-MASTER NO. 22205) (ROOSA-MASTER NO. 20504) (SUB FOR AR85617) (SUB RE37503 AND R92351)
14	SE500824	1	NOZZLE	REMANUFACTURED, (PACKAGE OF (4 RE37503)
14	SE501100	1	NOZZLE	(SINGLE PACK) (REMANUFACTURED FOR RE37503)
15	R34760	1	CLAMP	-
16	R34761	1	SPACER	(K1) (SUB RE13887, THIS APPLICATION) (SUB RE32011)
16	R60745	1	SPACER	(K) (USE WHEN RE13887 HAS BEEN INSTALLED)
17	-	1	Part 24	( T31174 NO LONGR AVAILABLE) (USE FOR SERVICING FUEL INJECTION NOZZLE)

FUEL INJECTION NOZZLE (ENGINE SERIAL NO. -588609) [01F10]
