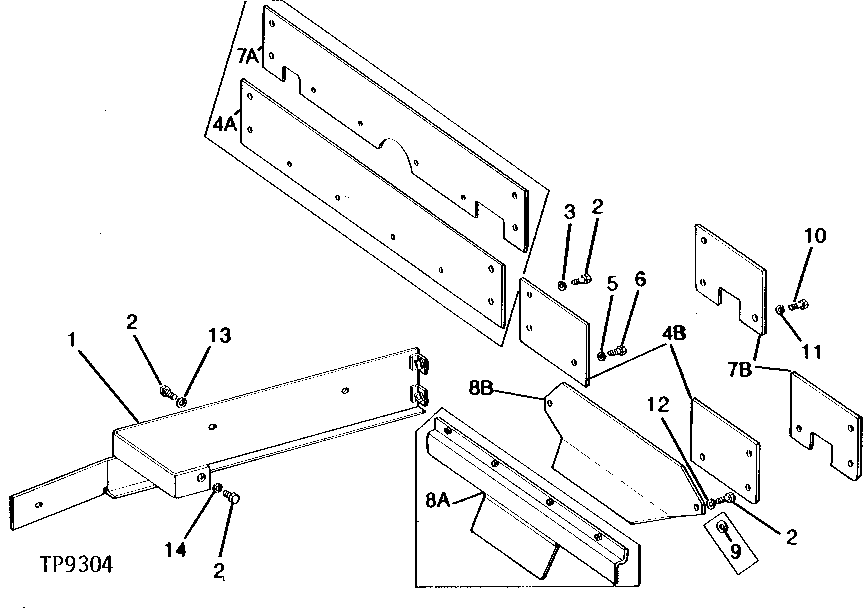

FENDER SHIELD, REAR COVER AND EXTENSION [02B05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT39217	1	SHIELD	LEFT
1	AT75999	1	SHIELD	RIGHT (ILLUSTRATED) (SUB FOR AT39216) (ALSO ORDER 24H1625)
2	19H3472	10	Cap Screw	5/8" X 9-3/4"
3	24H1625	6	Washer	17/32" X 1" X 0.120"
5	12H304	4	Lock Washer	3/8"
6	19H2676	4	Cap Screw	3/8" X 1"
6	19H2716	2	Cap Screw	3/4" X 1-1/2"
9	24H1682	4	Washer	13/32" X 7/8" X 0.120"
10	19H1648	2	Cap Screw	3/8" X 3/4"
11	24H1302	2	Washer	13/32" X 11/16" X 0.035"
12	12H236	2	Lock Washer	3/4"
13	12H301	1	Lock Washer	1/2", (USE WIT AT75999)
13	12H301	2	Lock Washer	1/2", (USE WITH AT39216)
14	24H1625	1	Washer	17/32" X 1" X 0.120", (USE WITH R.H. FENDER) (USE WITH AT75999)
4A	T40605	1	COVER	(USED WITHOUT REAR-MOUNTED EQUIPMENT)
4B	T55553	2	COVER	(USED WITHOUT REAR-MOUNTED EQUIPMENT)
7A	T40613	1	COVER	(USED WITH REAR-MOUNTED EQUIPMENT)
7B	T55556	2	COVER	(USED WITH REAR-MOUNTED EQUIPMENT)
8A	AT39215	1	COVER	-
8B	T38201	1	SHIELD	-

FENDER SHIELD, REAR COVER AND EXTENSION [02B05]
