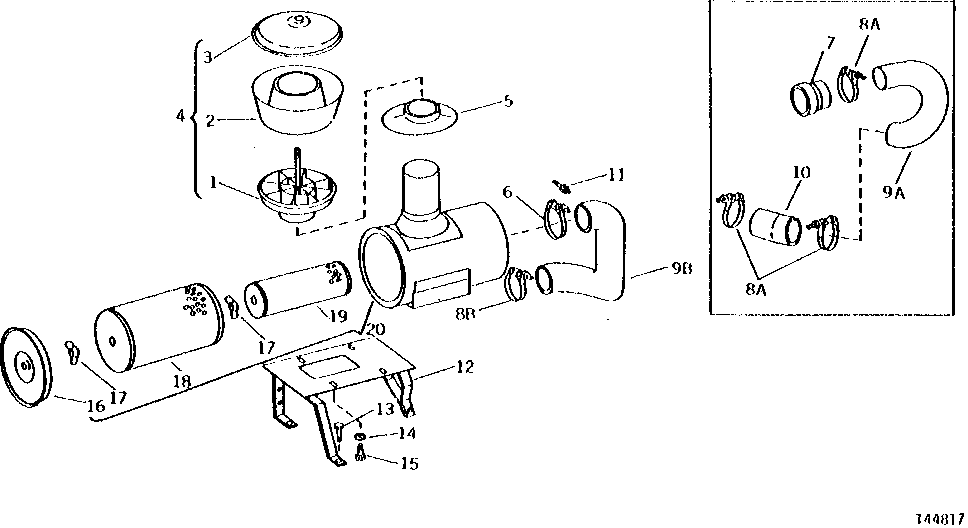

AIR CLEANER AND PRE-CLEANER WITH PIPING [01H07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR1729R	1	COVER	-
2	R28795	1	DUST BOWL	-
3	-	1	Part 3	-
4	AT170942	1	PRECLEANER	(SUB FOR AT39122)
4	AU12450	1	Hose Clamp	-
5	T41442	1	SEAL	-
6	AT56658	1	Hose Clamp	(SUB FOR AT37477 AND AT43290, THIS APPLICATION)
7	T41437	1	HOSE	-
10	T41438	1	HOSE	-
11	AT18687	1	HOSE FITTING	-
12	AT80935	1	SUPPORT	(SUB FOR AT40416, AT52722 AND AT63225)
13	19H1895	2	CAP SCREW	1/2" X 3/4"
14	24H1682	4	Washer	13/32" X 7/8" X 0.120"
15	19H1648	4	Cap Screw	3/8" X 3/4"
16	AT77471	1	COVER	254 MM (10") (SUB FOR AT35156)
16	AT40419	1	COVER	229 MM (9")
17	R44418	2	Wing Nut	(SUB FOR AR52041) (ALSO ORDER AR43940 GASKET)
18	AT35155	1	FILTER ELEMENT	PRIMARY
19	AT31227	1	FILTER ELEMENT	SECONDARY
20	AT40417	1	AIR CLEANER	254 MM (10") (SUB AT113152)
20	AT113152	1	AIR CLEANER	229 MM (9") (SUB FOR AT80866)
8A	AT37476	3	Hose Clamp	-
8B	AT50923	1	Hose Clamp	-
9A	AT40415	1	TUBE	-
9B	AT52559	1	HOSE	-

AIR CLEANER AND PRE-CLEANER WITH PIPING [01H07]
