Wiring Harness (Rear) (Powrreverser™ Transmission With Electro-Hydraulic Hitch) (Cab)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE198918	1	Cab Wiring Harness	-
2	57M7349	1	Elec. Connector Accessory	Left Tail/Turn 7
2	57M7347	1	Elec. Connector Accessory	-
2	R104846	3	Elec. Connector Terminal	Cavity A, B, D
2	57M9215	3	Elec. Connector Seal	Cavity A, B, D
2	57M7259	1	Elec. Connector Seal	Cavity C
3	57M7260	1	Elec. Connector Housing	Left External Hitch Switch 50
3	57M7291	1	Electrical Connector Assy	-
3	57M7494	6	Elec. Connector Terminal	Cavity A - F
3	57M9215	6	Elec. Connector Seal	Cavity A - F
4	57M8866	1	Elec. Connector Terminal	Vec Power 5
5	57M8866	1	Elec. Connector Terminal	Vec Power 6
6	57M8867	1	Elec. Connector Terminal	Load Center Power 8
7	R78069	5	Elec. Connector Cavity Plug	Cavity E - J
7	57M8164	4	Elec. Connector Terminal	Cavity A - D
7	57M7919	1	Elec. Connector Housing	Service Advisor 39
8	RE68327	1	Relay	Load Center 9
9	57M9880	3	Relay	-
10	57M8756	1	Elec. Connector Accessory	-
11	57M8749	2	Elec. Connector Accessory	-
12	57M8985	1	Elec. Connector Housing	To VEC, Green 10
12	57M9083	1	Elec. Connector Accessory	-
12	57M7297	5	Elec. Connector Terminal	Cavity A, B, F, G, H
12	57M8294	2	Elec. Connector Terminal	Cavity C, D
12	57M7491	1	Elec. Connector Terminal	Cavity E
12	57M9218	4	Elec. Connector Seal	Cavity B, E, G, H
12	57M10845	4	Elec. Connector Cable Seal	Cavity A, C, D, F
13	57M9218	3	Elec. Connector Seal	Cavity A, B, D
13	57M10845	5	Elec. Connector Cable Seal	Cavity C, E - H
13	57M7491	2	Elec. Connector Terminal	Cavity A, D
13	57M7297	4	Elec. Connector Terminal	Cavity B, C, E, F
13	57M9083	1	Elec. Connector Accessory	-
13	57M8986	1	Elec. Connector Housing	To VEC, Blue 11
13	57M8294	2	Elec. Connector Terminal	Cavity G, H
14	57M8984	1	Elec. Connector Housing	To VEC, Grey 12
14	57M9083	1	Elec. Connector Accessory	-
14	57M7297	4	Elec. Connector Terminal	Cavity A, B, D, H
14	57M8294	1	Elec. Connector Terminal	Cavity E
14	57M7491	3	Elec. Connector Terminal	Cavity C, F, G
14	57M9216	1	Elec. Connector Seal	Cavity E
14	57M9218	4	Elec. Connector Seal	Cavity B, C, D, G
14	57M9219	3	Elec. Connector Seal	Cavity A, E, H
15	57M9218	5	Elec. Connector Seal	Cavity C - F, H
15	57M10845	3	Elec. Connector Cable Seal	Cavity A, B, G
15	57M7491	1	Elec. Connector Terminal	Cavity H
15	57M7297	6	Elec. Connector Terminal	Cavity B - G
15	57M9083	1	Elec. Connector Accessory	-
15	57M8983	1	Elec. Connector Housing	To VEC, Black 13
15	57M8294	1	Elec. Connector Terminal	Cavity A
16	57M8324	6	Elec. Connector Terminal	Cavity A, F, G, K, L, N
16	57M8323	8	Elec. Connector Terminal	Cavity B, D, E, J, M, P, R, S
16	57M8322	2	Elec. Connector Terminal	Cavity C, H
16	57M8304	6	Elec. Connector Terminal	Cavity A, F, G, K, L, N
16	57M8303	8	Elec. Connector Terminal	Cavity B, D, E, J, M, P, R, S
16	57M8302	2	Elec. Connector Terminal	Cavity C, H
16	57M8279	1	Elec. Connector Housing	To Roof Harness 14
17	57M7263	1	Elec. Connector Housing	PTO Switch 3
17	57M7291	1	Electrical Connector Assy	-
17	57M7495	4	Elec. Connector Terminal	Cavity A, C, D, E
17	57M9215	4	Elec. Connector Seal	Cavity A, C, D, E
17	57M7259	2	Elec. Connector Seal	Cavity B, F
18	57M7328	1	Elec. Connector Housing	Seat Switch 4
18	57M7289	1	Elec.Connect Locking Device	-
18	57M7494	2	Elec. Connector Terminal	Cavity A, B
18	57M9215	2	Elec. Connector Seal	Cavity A, B

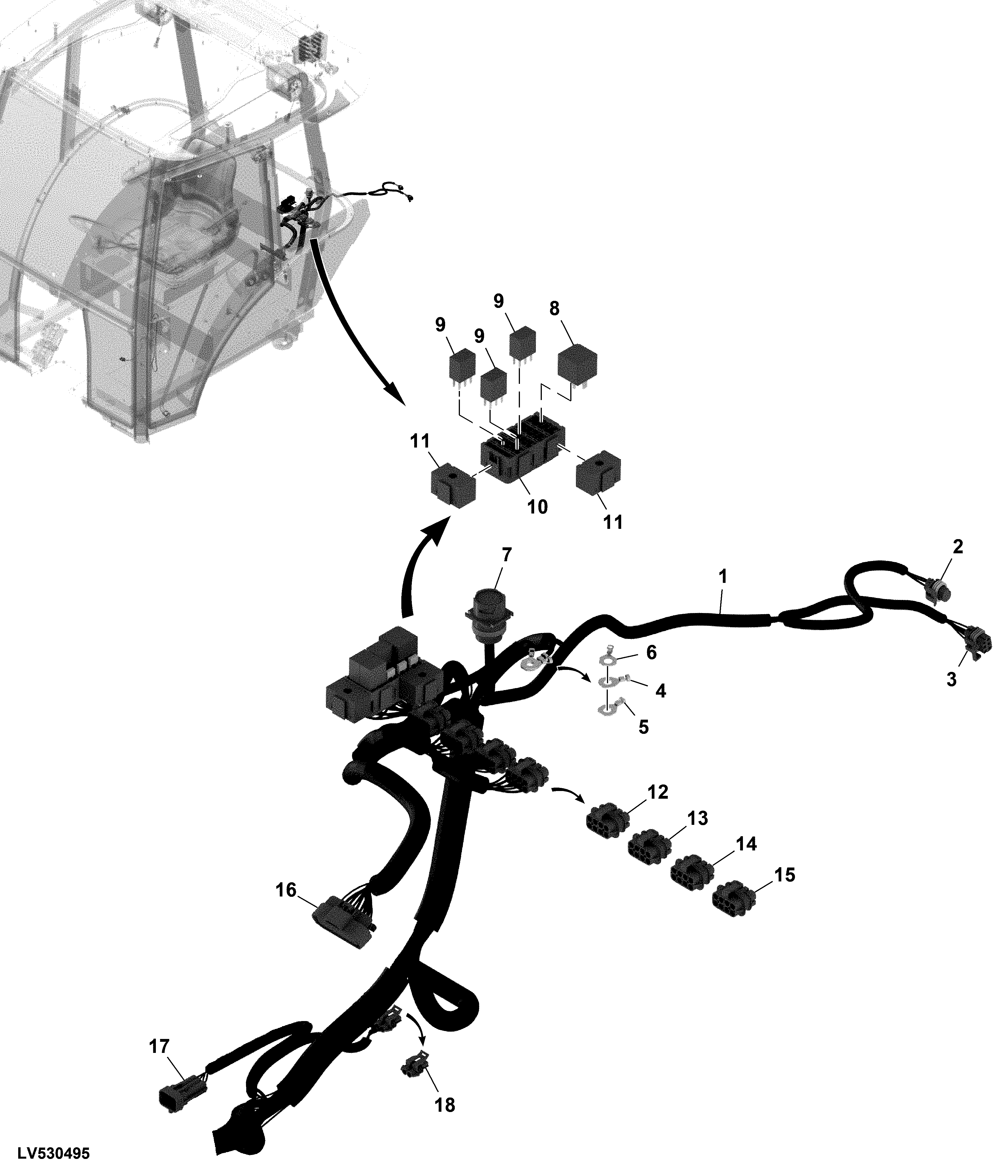

Wiring Harness (Rear) (Powrreverser™ Transmission With Electro-Hydraulic Hitch) (Cab)
