Wiring Harness (Rear) (Powrreverser™ Transmission With Electro-Hydraulic Hitch) (Cab)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE198918	1	Cab Wiring Harness	-
2	RE12363	1	Electrical Connector Assy	Park Sensor 23
2	57M9219	2	Elec. Connector Seal	Cavity A, B
2	57M7251	2	Elec. Connector Terminal	Cavity A, B
3	57M7850	1	Elec. Connector Housing	MFWD Solenoid 21
3	57M7830	2	Elec. Connector Terminal	Cavity A, B
4	57M7850	1	Elec. Connector Housing	Hyd Oil Temp 24
4	57M7830	2	Elec. Connector Terminal	Cavity A, B
5	57M7254	1	Elec. Connector Housing	Hitch Raise 55
5	57M7289	1	Elec.Connect Locking Device	-
5	57M7494	2	Elec. Connector Terminal	Cavity A, B
5	57M9215	2	Elec. Connector Seal	Cavity A, B
6	57M7254	1	Elec. Connector Housing	Hitch Lower 56
6	57M7289	1	Elec.Connect Locking Device	-
6	57M7494	2	Elec. Connector Terminal	Cavity A, B
6	57M9215	2	Elec. Connector Seal	Cavity A, B
7	57M7306	1	Elec.Connect Locking Device	-
7	57M9216	2	Elec. Connector Seal	Cavity A, B
7	57M7491	2	Elec. Connector Terminal	Cavity A, B
7	57M7309	1	Elec. Connector Housing	7-Pin Trailer Connector 27
8	57M7260	1	Elec. Connector Housing	7-Pin Trailer Connector 26
8	57M7291	1	Electrical Connector Assy	-
8	R104846	4	Elec. Connector Terminal	Cavity A, B, C, F
8	57M7258	1	Elec. Connector Seal	Cavity F
8	57M9215	3	Elec. Connector Seal	Cavity A, B, C
8	57M7259	2	Elec. Connector Seal	Cavity D, E
9	57M7850	1	Elec. Connector Housing	EH PTO Solenoid 43
9	57M7829	1	Elec. Connector Terminal	Cavity B
9	57M7830	1	Elec. Connector Terminal	Cavity B
10	R77476	1	Electrical Connector Assy	Front Washer Pump 25
10	57M9199	2	Elec. Connector Terminal	Cavity A, B
11	57M7741	3	Elec. Connector Terminal	Cavity A, B, D
11	57M8906	1	Elec. Connector Housing	Hitch Draft Sensor 53
11	57M7830	3	Elec. Connector Terminal	Cavity C, E, F
12	57M7346	1	Elec. Connector Housing	EH PTO Speed Sensor 42
12	57M7347	1	Elec. Connector Accessory	-
12	R104846	2	Elec. Connector Terminal	Cavity A, B
12	57M9215	2	Elec. Connector Seal	Cavity A, B
13	57M7255	1	Elec. Connector Housing	Wheel Speed Sensor 22
13	57M7290	1	Elec. Connector Accessory	-
13	57M7494	3	Elec. Connector Terminal	Cavity A - C
13	57M9215	3	Elec. Connector Seal	Cavity A - C
14	57M8873	2	Elec. Connector Terminal	Fuel Level Sender 30, 31
15	57M8909	1	Clip	-
16	57M7850	1	Elec. Connector Housing	Clutch Enable Valve 44
16	57M7830	2	Elec. Connector Terminal	Cavity A, B
17	57M7850	1	Elec. Connector Housing	Reverse Solenoid 45
17	57M7830	2	Elec. Connector Terminal	Cavity A, B
18	57M7496	3	Elec. Connector Terminal	Cavity A - C
18	57M7796	1	Elec. Connector Housing	Pressure Transduce 46
19	57M7850	1	Elec. Connector Housing	Forward Solenoid 47
19	57M7830	2	Elec. Connector Terminal	Cavity A, B
20	57M9432	1	Clamp	-
21	57M8867	1	Elec. Connector Terminal	28
22	57M8901	1	Elec. Connector Terminal	29
23	57M9215	3	Elec. Connector Seal	Cavity A - C
23	57M7494	3	Elec. Connector Terminal	Cavity A - C
23	57M7290	1	Elec. Connector Accessory	-
23	57M7255	1	Elec. Connector Housing	Top Shaft Speed Sensor 48
24	57M7850	1	Elec. Connector Housing	Hi Solenoid 49
25	57M8905	1	Elec. Connector Housing	To Power Cable 33
25	57M8910	1	Clip	-
25	57M7830	2	Elec. Connector Terminal	Cavity A, B
26	57M8905	1	Elec. Connector Housing	To Power Cable 32
27	RE12364	1	Electrical Connector Assy	Hitch Feedback Sensor 54
27	57M7251	3	Elec. Connector Terminal	Cavity A - C
27	57M9219	3	Elec. Connector Seal	Cavity A - C

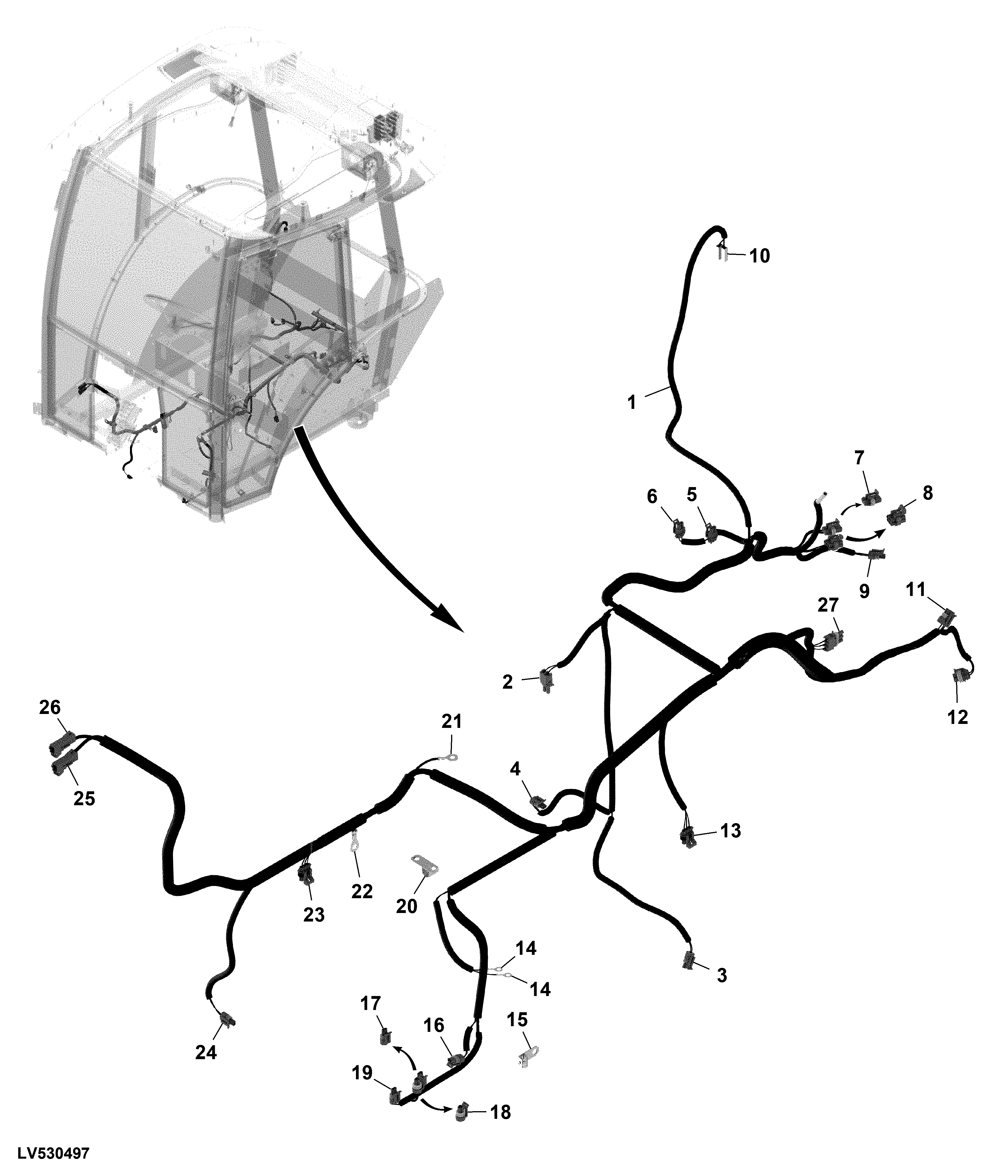

Wiring Harness (Rear) (Powrreverser™ Transmission With Electro-Hydraulic Hitch) (Cab)
