Открытый узел

Hydraulic Oil Cooler And Lines (Syncshuttle Transmission)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7100	2	Washer	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) 6.600 X 22 X 2 mm
2	19M7775	2	Screw	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) M6 X 16, HS=10.9
3	RE212290	1	Oil Cooler	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)
4	19M7864	2	Screw	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) M8 X 12, HS=10.9
5	24M7298	2	Washer	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) 8.400 X 25 X 2 mm
6	14M7298	1	Flange Nut	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) M8
7	61M5153	1	Adapter Fitting	(STRADDLE MOUNT) (WITH HI-CROP OPTION)
8	38H5003	1	Adapter Fitting	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)
9	T77857	8	O-Ring	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)
9	T77857	7	O-Ring	(2WD) (STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)
10	RE244531	2	Hydraulic Hose	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) (SUB FOR RE212303 ) (SUB RE286041 AND RE286042)
10	RE286041	1	Hydraulic Hose	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) SUPPLY
10	RE286042	1	Hydraulic Hose	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) RETURN
11	19M8319	2	Screw	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) M8 X 50, HS=10.9
12	H121168	3	Plate	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)
13	H135156	6	Clamp	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)
14	RE240673	1	Oil Line	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) RETURN
15	RE224452	1	Oil Line	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) SUPPLY
17	19M8321	2	Screw	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) M6 X 45, HS=10.9
18	T77613	1	O-Ring	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)
19	RE242352	1	Oil Line	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) (WITHOUT HI-CROP OPTION)
20	RE195825	1	Oil Line	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)
21	R223532	1	Bracket	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)
22	14M7327	1	Lock Nut	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) M8
23	19M7866	1	Screw	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) M8 X 20, HS=10.9
24	19M8038	1	Cap Screw	(WITHOUT MID SCV) (STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) M8 X 85, HS=10.9
24	19M8318	1	Screw	(WITH MID SCV) (STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) M8 X 45, HS=10.9
25	T13914	1	Clamp	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)
26	19M7865	3	Screw	(WITHOUT MID SCV) (STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) M8 X 16, HS=10.9
27	RE215845	1	Bracket	(WITHOUT MID SCV) (STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)
28	51M7043	1	O-Ring	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) 15.300 X 2.200 mm
29	61M5003	1	Adapter Fitting	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)
30	H121168	1	Plate	(WITHOUT MID SCV) (STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)
31	R117351	2	Spacer	(WITHOUT MID SCV) (STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)
16A	RE198507	1	Valve	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)
16B	RE198506	1	Valve	(2WD) (STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)

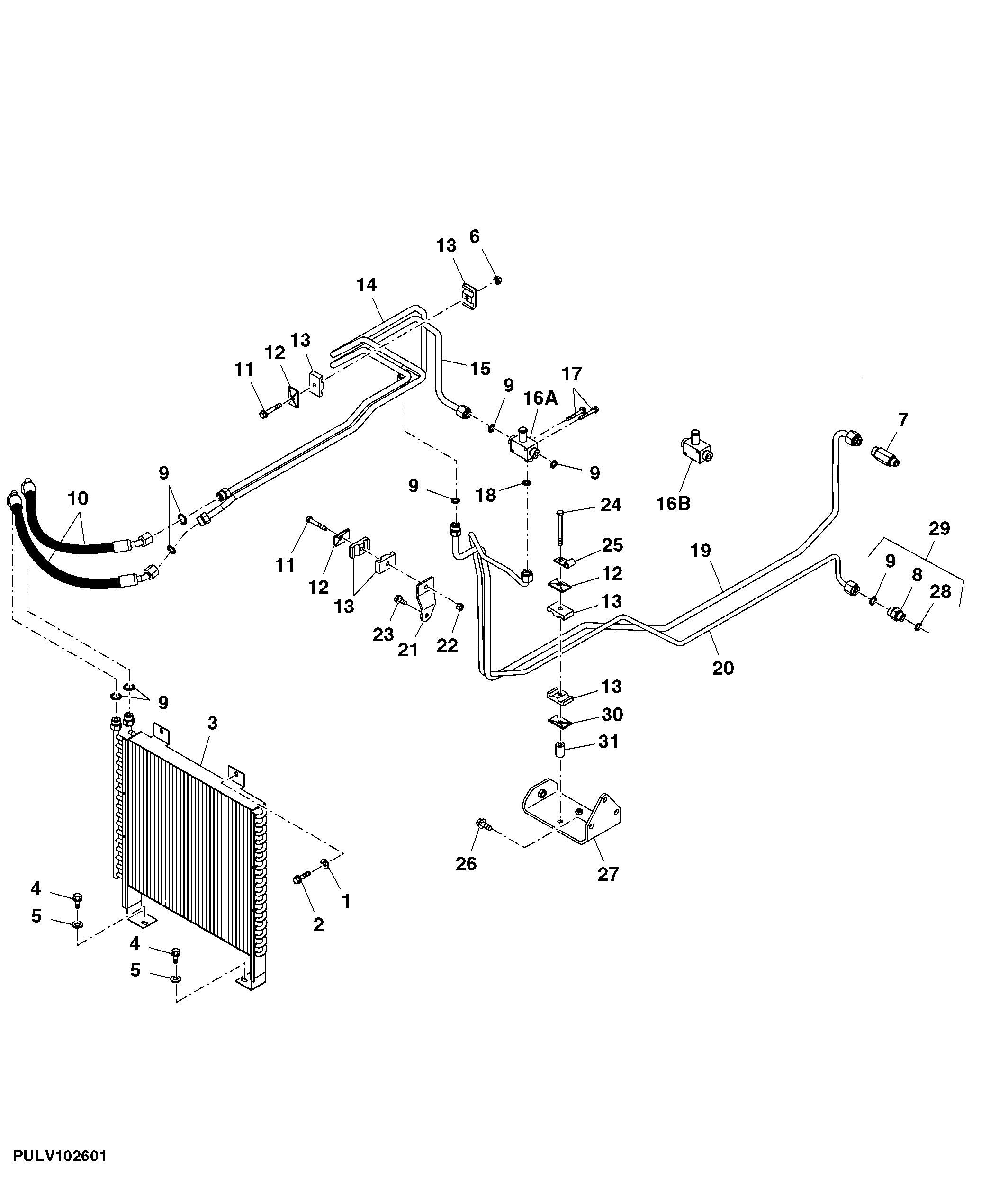

Hydraulic Oil Cooler And Lines (Syncshuttle Transmission)
