Fuel Tank and Hoses (Straddle Mount)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE200824	1	Strap	LH
2	21M7285	3	Screw	M6 X 12
3	RE200825	1	Strap	RH
4	14M7298	4	Flange Nut	M8
5	R138407	2	Bolt	-
6	AL113086	1	Filler Cap	-
6	AL113087	1	Filler Cap	LOCKING CAP (INCLUDES KEYS)
7	L80418	1	Insert	-
8	L112337	1	Sealing Washer	-
9	AH159448	1	Link Chain	-
10	L2646N	1	Pipe Plug	-
11	N30405	1	Adapter Fitting	-
12	AR21837	3	Clamp	SUB FOR TY22465
13	R117761	1	Elbow Fitting	-
15	RE280056	1	Fuel Tank	-
15	RE197500	1	Fuel Tank	ORDER RE280056
16	R287353	1	Gasket	-
17	21M7265	5	Screw	M5 X 12
18	R119358	1	Strap	-
19	RE187161	6	Clamp	(SUB FOR AR48236, OR TY22462THIS APPLICATION ) (USE WITH RE197500)
19	RE187161	4	Clamp	(USE WITH RE280056)
20	TY22552	1	Bulk Hose	152.4 MM (6.0 IN), SUPPLY (CUT TO LENGTH), (SUB FOR R222402 ) (USE WITH RE197500)
21	RE220719	1	Strainer	Fuel Strainer (USE WITH RE197500)
22	R49921	1	Clamp	-
23	19M7784	3	Screw	M10 X 20
24	TY22552	1	Bulk Hose	1930 MM (76.0 IN), SUPPLY (CUT TO LENGTH), (SUB FOR R199122 ) (USE WITH RE197500)
24	TY22552	1	Bulk Hose	2140 MM (84.25 IN) , SUPPLY (CUT TO LENGTH), (SUB FOR R199122 ) (USE WITH RE280056)
25	TY22551	1	Bulk Hose	2032 MM (80 IN), RETURN (CUT TO LENGTH), (SUB FOR R199123)
26	19M7808	2	Screw	M10 X 65
27	24M7178	4	Washer	10.500 X 30 X 2.500 mm
28	14M7167	4	Lock Nut	M10
29	14M7273	1	Nut	M8, HS=10.9
30	RE285549	1	Fuel Sender	(SUB FOR RE198704)
31	T76719	1	Clamp	-
14A	R119990	1	Adapter Fitting	(USE WITH RE197500)
14B	-	1	Part 16	NSEP, (ORDER RE280056 ) (SUB FOR RE278747)

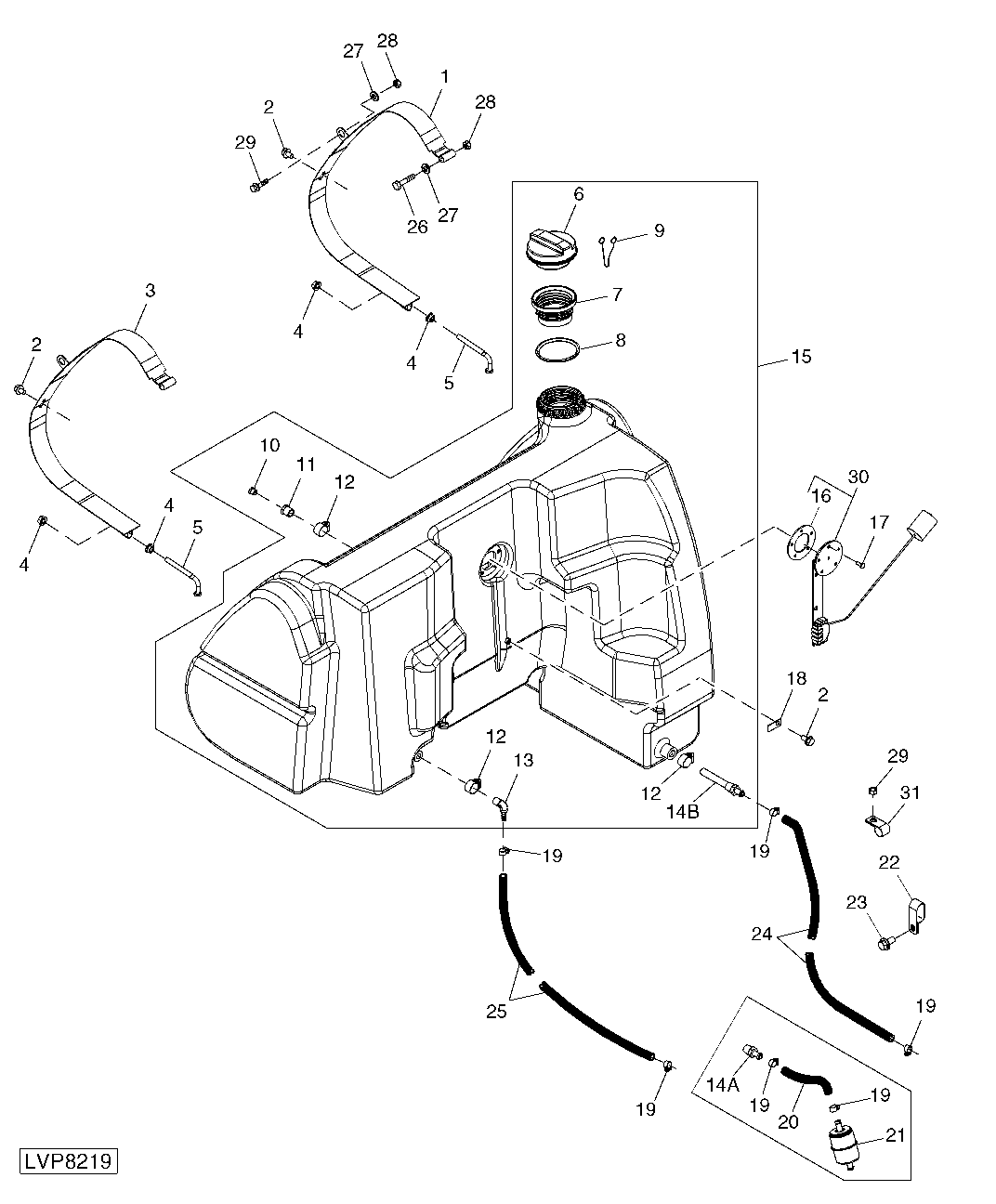

Fuel Tank and Hoses (Straddle Mount)
