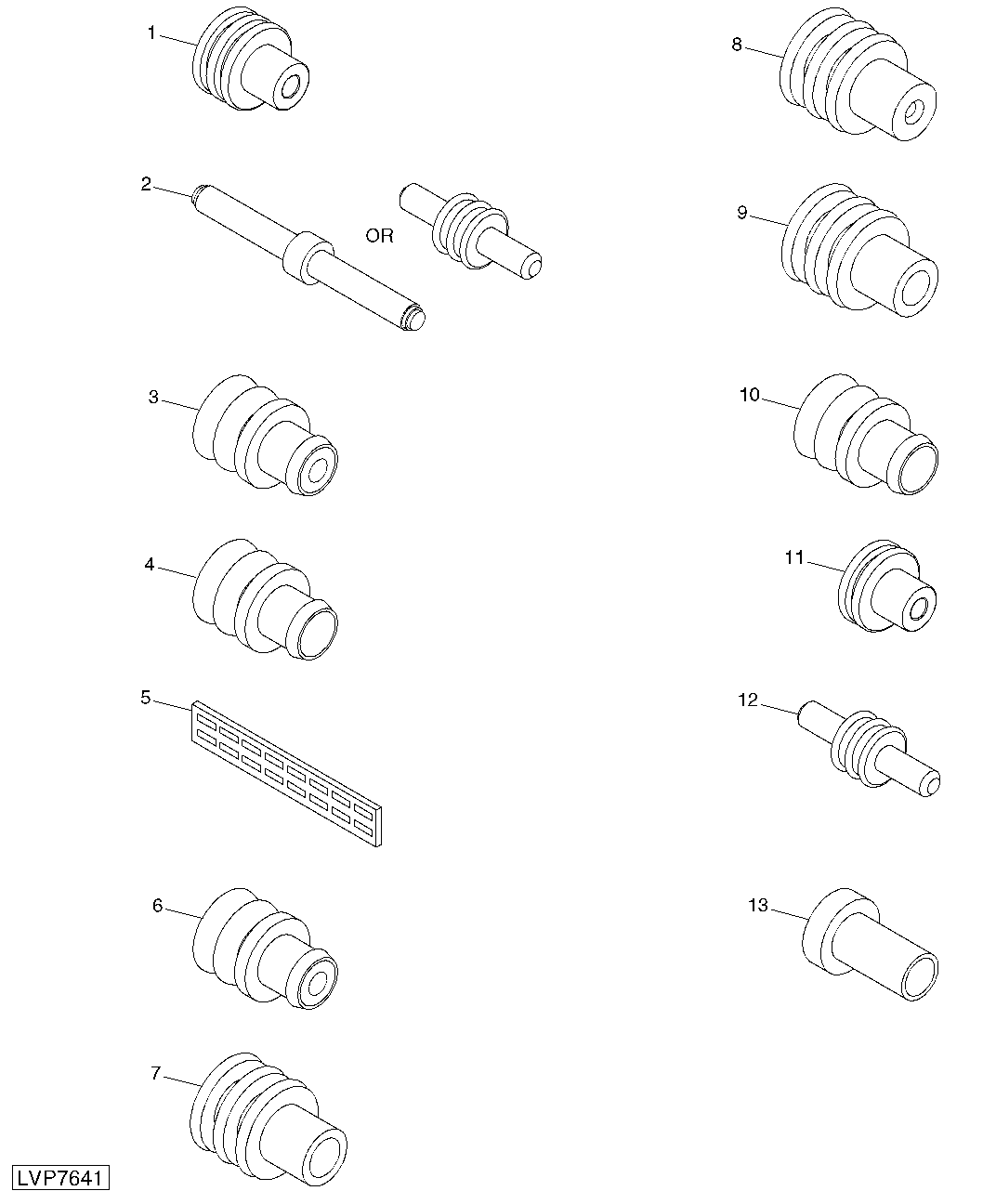

CABLE SEALS / CONNECTOR PLUGS

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8322	1	Elec. Connector Terminal	(USE WITH CONNECTOR CODES A, B, C, D, H, P) (ORANGE) CABLE OD 1.85 - 1..2 MM, SERIES GT280
1	57M7292	1	Elec. Connector Seal	(USE WITH CONNECTOR CODES A, B, C, D, H, P) (PURPLE) CABLE OD 1.6 - 2.15 MM, SERIES MP280
1	R78059	1	Elec. Connector Seal	(USE WITH CONNECTOR CODES A, B, C, D, H, P) (GREEN) CABLE OD 2.85 - 2.03 MM, SERIES MP280
1	R78063	1	Elec. Connector Seal	(USE WITH CONNECTOR CODES A, B, C, D, H, P) (LIGHT GRAY) CABLE OD 3.49 - 2.82 MM, SERIES MP280
1	R78062	1	Elec. Connector Seal	(USE WITH CONNECTOR CODES A, B, C, D, H, P) (BLUE) CABLE OD 3.45 - 4.3 MM, SERIES MP280
1	57M7493	1	Elec. Connector Seal	(USE WITH CONNECTOR CODES A, B, C, D, H, P) (WHITE) CABLE OD 2.15 - 1.6 MM, SERIES MP150
1	57M7258	1	Elec. Connector Seal	(USE WITH CONNECTOR CODES A, B, C, D, H, P) (DARK RED) CABLE OD 2.85 - 2.03 MM, SERIES MP150
1	57M8324	1	Elec. Connector Terminal	(USE WITH CONNECTOR CODES A, B, C, D, H, P) (TAN) CABLE OD 3.2 - 2.5 MM, SERIES GT280
1	57M8323	1	Elec. Connector Terminal	(USE WITH CONNECTOR CODES A, B, C, D, H, P) (YELLOW) CABLE OD 2.25 - 1.86 MM, SERIES GT280
1	57M8321	1	Elec. Connector Terminal	(USE WITH CONNECTOR CODES A, B, C, D, H, P) (BLUE) CABLE OD 2.25 - 1.86 MM, SERIES 150
2	57M8329	1	Electrical Connector Assy	(USE WITH CONNECTOR CODES A, B, C, D, H, P) (WHITE) CAVITY SIZE 5.8 MM, SERIES GT280
2	57M7259	1	Elec. Connector Seal	(USE WITH CONNECTOR CODES A, B, C, D, H, P) (DARK RED) CAVITY SIZE 2.3 X 3.4 MM, SERIES GT280
2	57M7741	1	Elec. Connector Terminal	(USE WITH CONNECTOR CODES A, B, C, D, H, P) (BLACK) SERIES 150 HEADER
2	R78064	1	Elec. Connector Cavity Plug	(USE WITH CONNECTOR CODES A, B, C, D, H, P) (GREEN) CAVITY SIZE 6.7 MM, SERIES MP280
3	57M7399	1	Elec. Connector Seal	(WHITE) (JUNIOR POWER TIMER) CABLE OD 3 - 2.2 MM, SERIES 2.5 MM
3	57M8106	1	Elec. Connector Seal	(YELLOW) (STANDARD POWER TIMER) CABLE OD 3.7 - 3.4 MM, SERIES 4.8
4	57M7401	1	Elec. Connector Cavity Plug	(NATURAL) (JUNIOR POWER TIMER) CAVITY SIZE 1.5 - 2.5 MM, SERIES 1.5 - 2.5 MM
5	57M8076	1	Elec. Connector Terminal	(JUNIOR POWER TIMER) 24 PIN
