Открытый узел

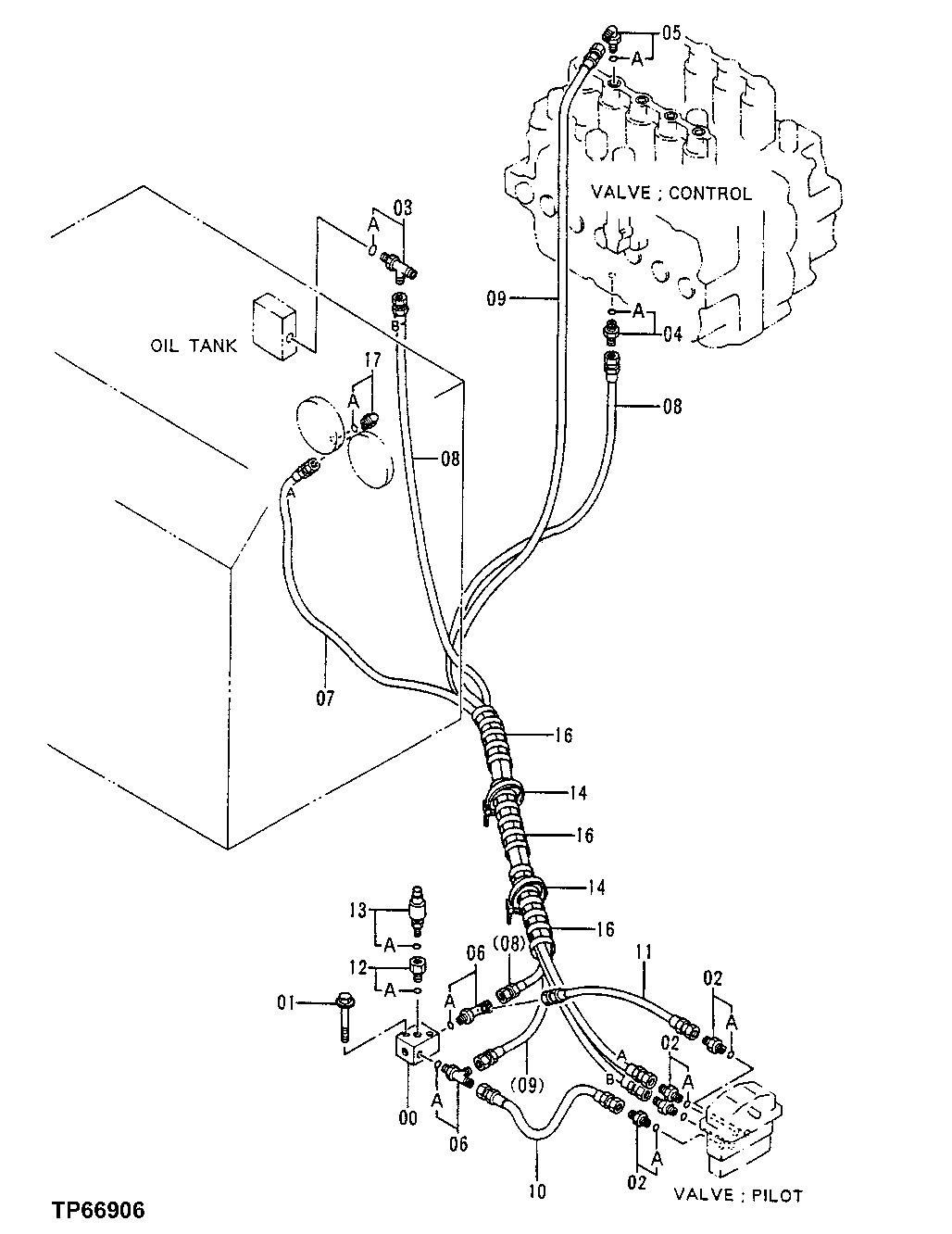

Pilot Lines (Counterweight Removal Device)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4195759	1	Flow Control Hyd. Valve	Shuttle, (SUB FOR AT132401)
1	19M8655	2	Cap Screw	M10 X 55
1	12M7066	2	Lock Washer	10 mm
2	4200467	4	Adapter Fitting	(SUB FOR TH108417)
3	4239712	1	Tee Fitting	(SUB FOR TH4239712)
4	4200466	1	Adapter Fitting	(SUB FOR TH108320)
5	A852333	1	Elbow Fitting	(SUB FOR TH101047) (SUB FOR 4154671)
6	4207300	2	Tee Fitting	(SUB FOR AT126381)
7	4373639	1	Hydraulic Hose	(SUB FOR AT170155 OR 4258889)
8	4305130	2	Hydraulic Hose	(SUB FOR AT170156)
9	4248610	1	Hydraulic Hose	(SUB FOR TH4248610)
10	4290170	1	Hydraulic Hose	(SUB FOR AT170158)
11	AT37543	1	HYDRAULIC HOSE - FABRICATE	9/16" X 482 mm (19") X 9/16"
12	4339737	1	Reducer	(SUB FOR AT170159)
13	4254563	1	Pressure Switch	(SUB FOR AT154212)
14	H77698	2	Tie Band	-
16	TH100996	3	Hose Guard	-
17	4241385	1	Elbow Fitting	(SUB FOR AT170160)
2A	M800650	1	Packing	-
3A	M800650	1	Packing	-
4A	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")
5A	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")
6A	M800650	1	Packing	-
12A	M800650	1	Packing	-
13A	CH19111	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
17A	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")

Pilot Lines (Counterweight Removal Device)

Нет текстового описания
