Открытый узел

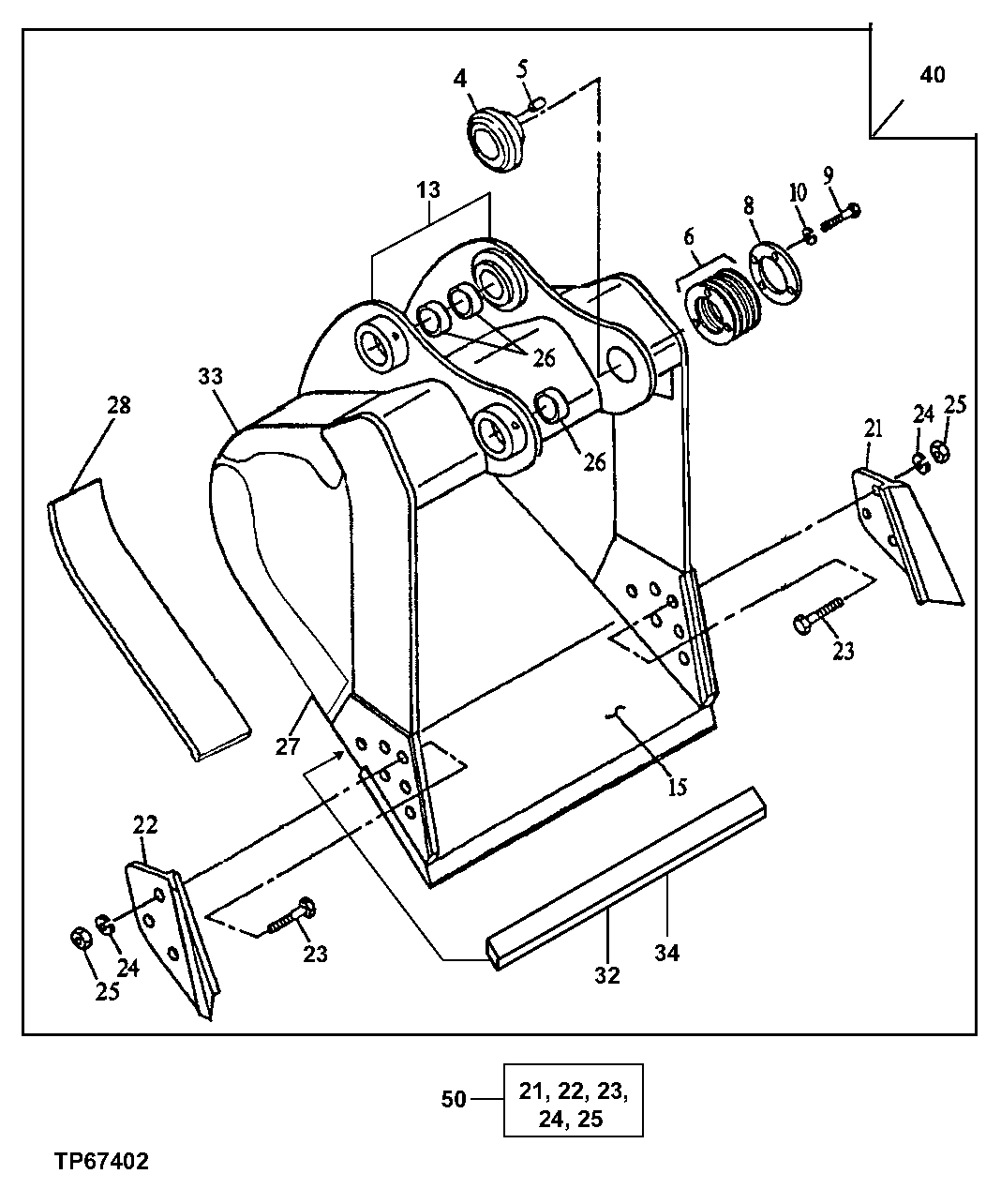

EXTREME DUTY BUCKET (CONTINUED)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
27	C619041	1	Plate	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (LOWER), (LH)
27	C619040	1	Plate	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (LOWER), (RH)
28	C624486	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 36in. 2.36yd³, Bucket
28	C619059	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 42in. 2.90yd³, Bucket
28	C619060	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 48in. 3.47yd³, Bucket
28	C619061	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 54in. 4.04yd³, Bucket
28	C619062	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 60in. 4.63yd³, Bucket
28	C619561	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 72in. 4.84yd³, Bucket
32	C33125	6	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 36in. 2.36yd³, Bucket
32	C33066	6	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 42in. 2.90yd³, Bucket
32	C33067	6	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 48in. 3.47yd³, Bucket
32	C33068	6	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 54in. 4.04yd³, Bucket
32	C33069	6	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 60in. 4.63yd³, Bucket
32	C33648	6	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 72in. 4.84yd³, Bucket
33	C619038	1	Plate	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (UPPER), (RH)
33	C619039	1	Plate	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (UPPER), (LH)
34	C27052	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 36in. 2.36yd³, Bucket
34	C33124	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 42in. 2.90yd³, Bucket
34	C33125	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 48in. 3.47yd³, Bucket
34	C33126	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 54in. 4.04yd³, Bucket
34	C33127	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 60in.4.63yd³, Bucket
34	C33910	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) 72in. 4.84yd³, Bucket
40	-	1	Part 23	36in. 2.36yd³, Available Tooth Assemblies On Separate Page, (AT189739 NLA)
40	-	1	Part 24	42in. 2.90yd³, Available Tooth Assemblies On Separate Page, (AT189741 NLA)
40	-	1	Part 25	48in. 3.47yd³, Available Tooth Assemblies On Separate Page, (AT189742 NLA)
40	-	1	Part 26	54 in. 4.04yd³, Available Tooth Assemblies On Separate Page, (AT189743 NLA)
40	-	1	Part 27	60in. 4.63yd³, Available Tooth Assemblies On Separate Page, (AT189744 NLA) (RECOMMENDED FOR 9'6" (2.9m) ARM ONLY)
40	-	1	Part 28	72in. 4.84yd³, Available Tooth Assemblies On Separate Page, (WHOLEGOODS) (AT189745 NLA)
50	-	1	Part 29	Side Cutter, (AT189734 NLA)

EXTREME DUTY BUCKET (CONTINUED)
